THED136025 **Older Style** - 25Amp Circuit Breaker

THED136025 **Older Style** - 25Amp Circuit Breaker

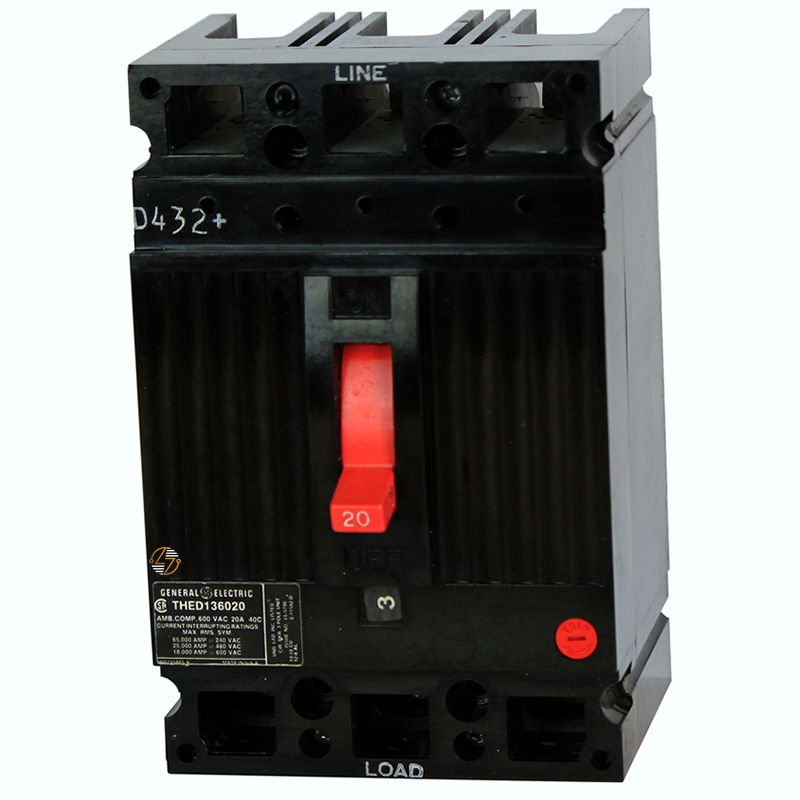

The THED136025 Black Face Circuit Breaker is a 25-amp, three-pole molded-case industrial circuit breaker designed for your compatible commercial and industrial electrical distribution systems. Part of the ABB/GE THED E150 breaker family, this model features a non-interchangeable thermal-magnetic trip unit that provides overload and short-circuit protection. With interrupting ratings of 18kAIC at 600VAC, 25kAIC at 480VAC, and 65kAIC at 240VAC, the THED136025 is intended for electrical installations where these specific ratings meet the system's protection requirements.

Key Features and Benefits

• 25 Amp Current Rating
• Three-Pole Configuration
• Black Face Design
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• Load-Side Lugs Included
• THED E150 Frame Family
• Molded-Case Construction
• Form, Fit, and Functional Replacement

Technical Specifications

• Catalog Number: THED136025

• UPC: 00783164062908

• Product Identification: Black Face

• Manufacturer / Product Family: ABB/GE THED

• Product Type: Molded-Case Circuit Breaker (MCCB)

• Breaker Type: THED

• Frame Family: E150

• Current Rating: 25 Amps

• Number of Poles: 3

• Trip Unit Type: Thermal Magnetic

• Trip Unit Configuration: Non-Interchangeable

• Interrupting Rating at 600VAC: 18kAIC (18,000 Amps)

• Interrupting Rating at 480VAC: 25kAIC (25,000 Amps)

• Interrupting Rating at 240VAC: 65kAIC (65,000 Amps)

• Face Configuration: Black Face

• Load-Side Lugs: Included

• Approximate Height: 6.31 inches

• Approximate Width: 4.13 inches

• Approximate Depth: 3.38 inches

• Overall Dimensions: 4.13"W × 6.31" H × 3.38"D

• Approximate Shipping Weight: 6.50 lbs.


Material Compliance and Certifications

The THED136025 Black Face Circuit Breaker is classified as an industrial molded-case circuit breaker with a non-interchangeable thermal-magnetic trip unit. Its electrical ratings, three-pole configuration, and terminal arrangement are intended for compatible distribution equipment requiring this specific THED breaker design.

We have not independently verified specific UL listing file numbers, CSA certification details, RoHS compliance declarations, or material composition certifications for the exact THED136025 Black Face configuration.

Where It Works Best

• Legacy Electrical Distribution Systems
• Commercial Electrical Equipment
• Industrial Electrical Applications
• Facility Maintenance
• Black-Face Breaker Replacements
• 240VAC Applications
• 480VAC Applications
• 600VAC Applications
• Load-Side Lug Connections
• Compatible E150-Frame Equipment
