THED124100WL **Older Style** - 100 Amp Circuit Breaker

THED124100WL **Older Style** - 100 Amp Circuit Breaker

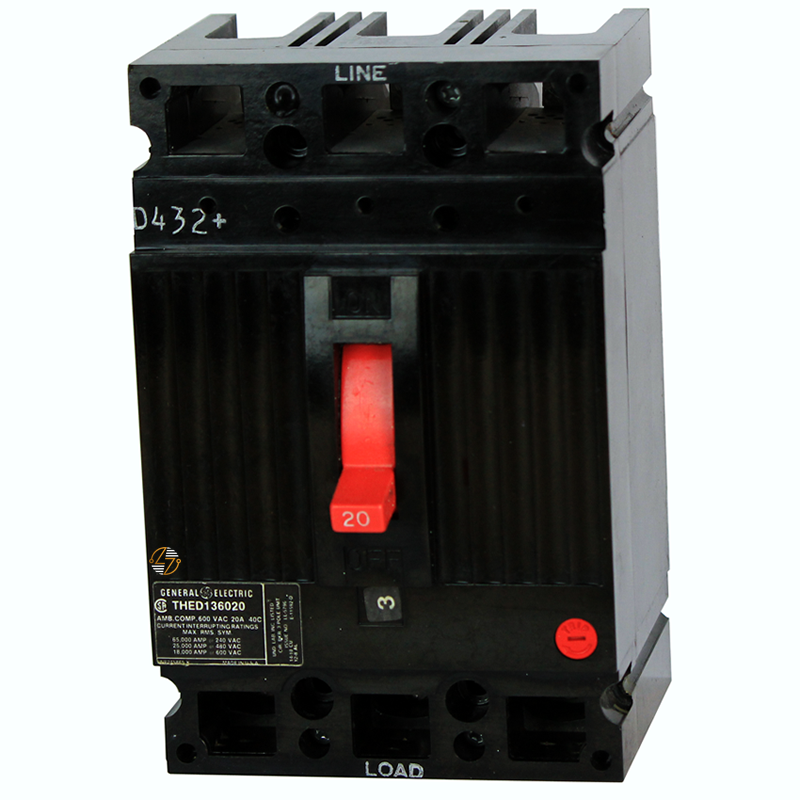

The THED124100WL Black Face Circuit Breaker is a 100-amp, two-pole molded-case industrial circuit breaker designed for your compatible commercial and industrial electrical distribution systems. Part of the ABB/GE THED E150 breaker family, this model features a non-interchangeable thermal-magnetic trip unit that provides overload and short-circuit protection. Its specified interrupting capacities are 25kAIC at 480VAC and 65kAIC at 240VAC, making these ratings essential considerations when matching the breaker to an existing electrical installation.

Key Features and Benefits

• 100 Amp Current Rating
• Two-Pole Configuration
• Black Face Design
• Thermal-Magnetic Protection
• Non-Interchangeable Trip Unit
• 25kAIC at 480VAC
• 65kAIC at 240VAC
• Line and Load-Side Lugs Included
• THED E150 Frame Family
• Molded-Case Construction
• Form, Fit, and Functional Replacement

Technical Specifications

• Catalog Number: THED124100WL

• Product Identification: Black Face

• Manufacturer / Product Family: ABB/GE THED

• Product Type: Molded-Case Circuit Breaker (MCCB)

• Breaker Type: THED

• Frame Family: E150

• Current Rating: 100 Amps

• Number of Poles: 2

• Trip Unit Type: Thermal Magnetic

• Trip Unit Configuration: Non-Interchangeable

• Interrupting Rating at 480VAC: 25kAIC (25,000 Amps)

• Interrupting Rating at 240VAC: 65kAIC (65,000 Amps)

• Face Configuration: Black Face

• Line-Side Lugs: Included

• Load-Side Lugs: Included

• Terminal Configuration: Line- and Load-Side Lugs Included

• Approximate Height: 6.31 inches

• Approximate Width: 4.13 inches

• Approximate Depth: 3.38 inches

• Overall Dimensions: 4.13"W × 6.31" H × 3.38"D

• Approximate Shipping Weight: 6.00 lbs.


Material Compliance and Certifications

We have not independently confirmed specific UL listing file numbers, CSA certification numbers, RoHS compliance declarations, or material composition certifications for the exact THED124100WL Black Face configuration.

Where It Works Best

• Legacy Electrical Distribution Systems
• Commercial Electrical Equipment
• Industrial Electrical Applications
• Facility Maintenance
• Black-Face Breaker Replacements
• 240VAC Applications
• 480VAC Applications
• Line and Load-Side Lug Connections
• E150-Frame Equipment
