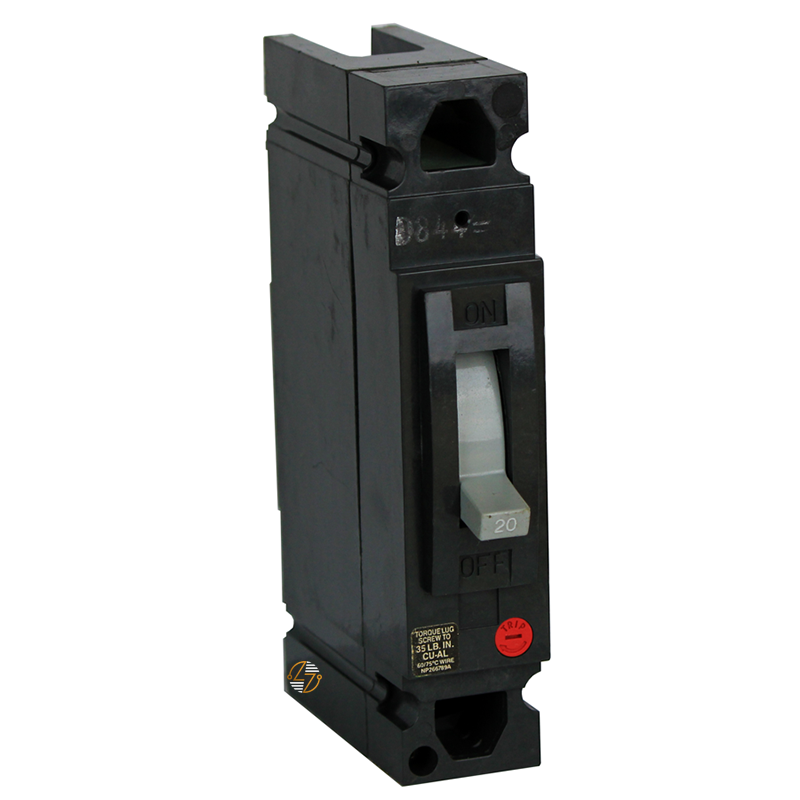

THED113020 - 20Amp Circuit Breaker

THED113020 - 20Amp Circuit Breaker

When dependable circuit protection matters, the ABB THED113020 is built to handle the job. This 20 amp, single-pole thermal-magnetic circuit breaker is designed for commercial and industrial electrical systems that require consistent performance and high interrupting capacity. Rated for 277V AC with a 65kA interrupting rating, it helps protect your circuits and connected equipment from overloads and short circuits before larger problems can develop.

Whether it’s part of a new installation or a replacement project, the THED113020 delivers the kind of dependable performance professionals expect from ABB circuit protection products.

Key Features and Benefits

• 20 amp single-pole circuit breaker
• Thermal-magnetic trip protection
• Rated for 277V AC applications
• High 65kA interrupting capacity
• Part of the ABB E150 breaker series
• Suitable for reverse feed applications
• Includes copper/aluminum load lugs
• Helps protect against overloads and short circuits
• Designed for commercial and industrial electrical systems


Technical Specifications

• Manufacturer: ABB

• Catalog Number: THED113020

• UPC: 783164138672

• Product Type: Industrial Circuit Breaker

• Series: E150 Line

• Number of Poles: 1

• Amperage Rating: 20 Amps

• Voltage Rating: 277V AC

• Interrupting Capacity: 65kA IC

• Trip Type: Thermal-Magnetic

• Trip Configuration: Non-Interchangeable

• Conductor Compatibility: Copper/Aluminum

• Reverse Feed Capable: Yes

• Temperature Rating:
  • 60/75°C through 100A
  • 75°C above 100A

Material Compliance and Certifications

• Manufactured to ABB industrial circuit protection standards
• Designed for commercial and industrial electrical applications
• Environmental Product Declaration: No Declaration Needed


Where It Works Best

• Commercial lighting panels
• Industrial electrical distribution systems
• Manufacturing facilities
• HVAC electrical systems
• Branch circuit protection
• Industrial control panels
