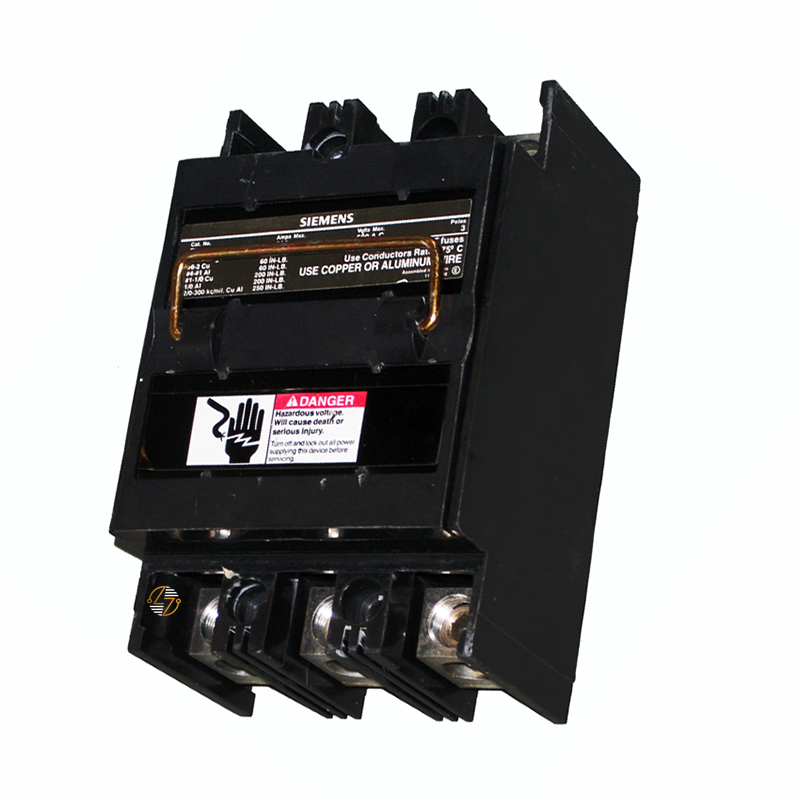

TFP323 - 100Amp Fusible Pullout

TFP323 - 100Amp Fusible Pullout

The Siemens TFP323 is a premium 3-pole, 100-amp, 250V AC fusible pullout disconnect switch engineered for reliable and efficient circuit protection. Designed to accept Class T fuses, it provides superior overcurrent protection in a compact and durable form factor. Whether installed in commercial or industrial settings, this switch is built to meet demanding performance requirements while maintaining safety and compliance standards. With a rugged design and high interrupting capacity, the Siemens TFP323 ensures optimal functionality in applications with significant electrical loads or confined installation spaces.

Key Features and Benefits

• Class T Fuse Compatibility: Accepts high-performance Class T fuses for superior overcurrent protection and minimal downtime.
• Durable Construction: Built to withstand harsh environments, delivering long-term reliability.
• High Interrupting Capacity: UL-listed for fault currents up to 200,000 RMS symmetrical amperes, offering industry-leading safety.

Technical Specifications

• Voltage Rating: 250 Volts AC
• Current Rating: 100 Amperes
• Number of Poles: 3
• Fuse Type: Class T
• Frequency Rating: 60Hz
• Dimensions: 7.00” L x 4.50” W x 3.55” D

Material Compliance and Certifications

• UL Listed: Ensures adherence to rigorous safety and performance standards for disconnect switches.
• ISO 9001 Compliance: Manufactured under Siemens’ internationally recognized quality management systems.

Suitability

• The Siemens TFP323 is perfect for applications in commercial, industrial, and institutional environments where compact, high-performance disconnect switches are required. Its ability to handle high fault currents, paired with its compatibility with Class T fuses, makes it a top choice for ensuring safety and efficiency in modern electrical systems.
