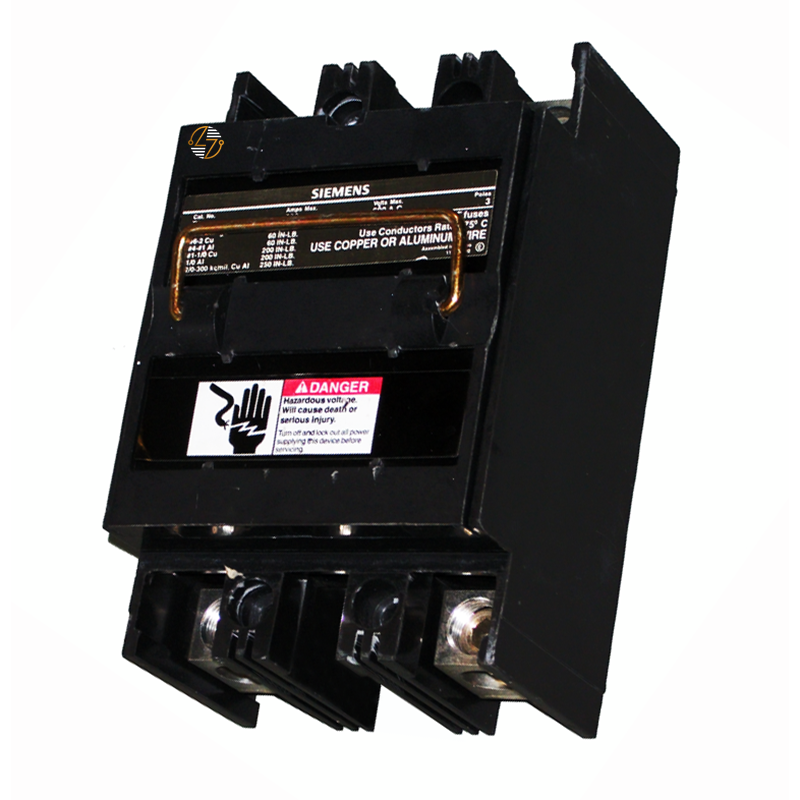

TFP224 - 200Amp Fusible Pullout

TFP224 - 200Amp Fusible Pullout

The Siemens TFP224 is a reliable and durable 2-pole (in a 3-pole body), 200-ampere, 250-volt AC fusible pullout disconnect switch designed to meet demanding industrial and commercial circuit protection needs. Engineered for indoor use, it ensures consistent performance in environments with temperatures ranging from -20°F to 120°F. This unit accepts Class T fuses, providing superior overcurrent protection and compatibility for high-performance applications.

Key Features and Benefits

• Fusible Pullout Design: Simplifies maintenance and replacement of fuses, ensuring minimal downtime.
• High Interrupting Capacity: UL Listed for circuits with available fault currents up to 200,000 RMS symmetrical amperes, providing robust circuit protection.
• Durable and Compact: Compact dimensions ensure space efficiency without compromising performance.

Technical Specifications

• Voltage Rating: 250V AC
• Current Rating: 200A
• Poles: 2-pole (in 3-pole body)
• Fuse Compatibility: Accepts Class T fuses
• Action: Single Throw
• Dimensions: 7.00"L x 4.50"W x 3.55"D
• Operating Temperature Range: -20°F to 120°F

Material Compliance and Certifications

• UL Listed: Meets stringent safety and performance standards.
• RoHS Compliance: Siemens reviews its products for environmental compliance with current regulations.

Suitability

• The Siemens TFP224 is ideal for indoor industrial and commercial applications that require dependable overcurrent protection in a compact form factor. Its fusible pullout design and compatibility with Class T fuses make it a preferred choice for professionals seeking a reliable disconnect solution.
