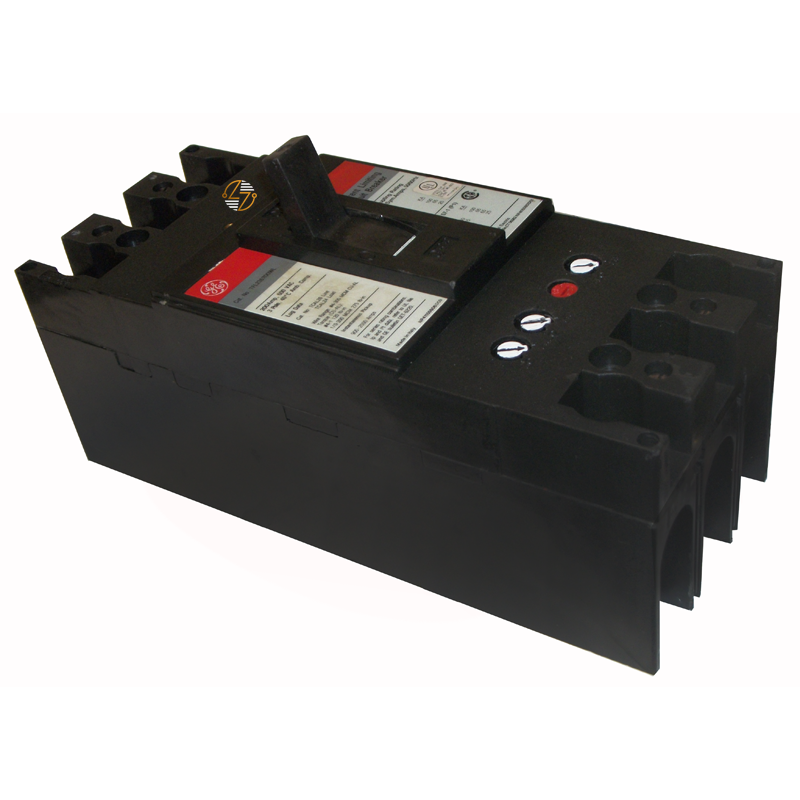

TFL236225WL - 225Amp Circuit Breaker

TFL236225WL - 225Amp Circuit Breaker

The TFL236225WL Circuit Breaker is a heavy-duty, current-limiting circuit breaker engineered for industrial, commercial, and high-power electrical systems that demand superior overcurrent protection. With a non-interchangeable trip unit, this three-pole breaker ensures consistent, tamper-proof performance for critical electrical infrastructure.

Key Features and Benefits

• Current-Limiting Technology: Reduces let-through energy to minimize equipment damage and improve system longevity.
• Non-Interchangeable Trip Unit: Provides fixed, factory-calibrated trip settings for secure and consistent performance.
• Compact & Durable: Robust construction with a small footprint, ensuring longevity in industrial applications.
• Pre-Installed Line & Load-Side Lugs: Simplifies wiring and reduces installation time.

Technical Specifications

• Number of Poles: 3

• Rated Current: 225A

• Voltage Ratings: Up to 600VAC

• Interrupting Capacity:

  • 100kA @ 240VAC
  • 65kA @ 480VAC
  • 25kA @ 600VAC
• Frame Type: TFL

• Trip Unit: Non-Interchangeable

• Dimensions: 4.13" W x 10.13" L x 3.81" D

• Weight: 15 lbs

• Lugs: Line and Load-Side Included


Material Compliance and Certifications

• UL 489 Listed: Ensures adherence to industry safety and performance standards.
• CSA C22.2 Certified: Meets Canadian electrical safety regulations.
• ANSI Standards: Designed to comply with American National Standards for electrical protection.

Ideal Applications

• Industrial Power Distribution: Protects motors, control panels, and heavy-duty machinery.
• Commercial Buildings: Ensures safe and efficient power distribution in office complexes, malls, and hospitals.
• Data Centers & IT Infrastructure: Safeguards critical power systems against electrical faults.
• Renewable Energy Systems: Designed for solar, wind, and other alternative energy applications requiring high-fault protection.
• Manufacturing & Automation: Maintains uninterrupted power supply in high-energy-demand environments.


The TFL236225WL Circuit Breaker is your trusted choice for superior electrical protection, offering unmatched safety, reliability, and performance in demanding industrial and commercial settings.
