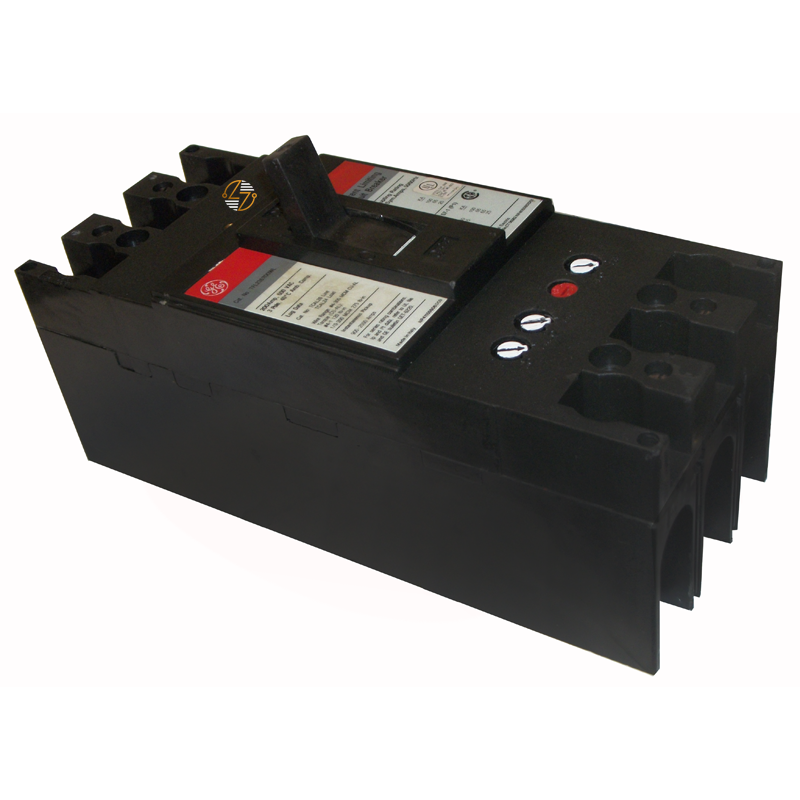

TFL236225 - 225Amp Circuit Breaker

TFL236225 - 225Amp Circuit Breaker

The General Electric TFL236225 is a premium-grade 3-pole molded case circuit breaker engineered for high-performance protection in industrial and commercial electrical systems. With a 225-amp rating and a voltage capacity of up to 600VAC, this breaker is built to handle demanding power distribution needs while ensuring safety and reliability. Its current-limiting capabilities and non-interchangeable trip unit provide enhanced fault protection, reducing equipment damage and downtime. Designed for ease of installation, it includes load-side lugs for a streamlined setup.

Key Features and Benefits

• Current Limiting Technology: Minimizes energy let-through during faults, protecting equipment and reducing the risk of system damage.
• Non-Interchangeable Trip Unit: Fixed trip settings ensure consistent and reliable protection without the risk of tampering or misconfiguration.
• Easy Installation with Load-Side Lugs: Pre-installed lugs save time and ensure secure connections, reducing installation complexity.


Technical Specifications

• Amperage: 225A
• Interrupting Capacity:
• 100kA @ 240VAC
• 65kA @ 480VAC
• 25kA @ 600VAC
• Poles: 3

• Frame Type: TFL

• Dimensions: 4.13‰۝ W x 10.13‰۝ L x 3.81‰۝ D

• Ship Weight: 15 lbs


Material Compliance and Certifications

• UL 489 Certification: Ensures safe and reliable performance in electrical systems.
• CSA C22.2 No. 5 Compliance: Verifies suitability for Canadian installations and industrial use.


Suitability

• The TFL236225 is ideal for power distribution systems, motor control centers, and other high-demand applications in industrial plants, data centers, and commercial facilities. Its high interrupting capacity and reliable design make it an essential component for safeguarding electrical infrastructures.


Invest in the General Electric TFL236225 Molded Case Circuit Breaker for a dependable and customizable solution to your circuit protection requirements.
