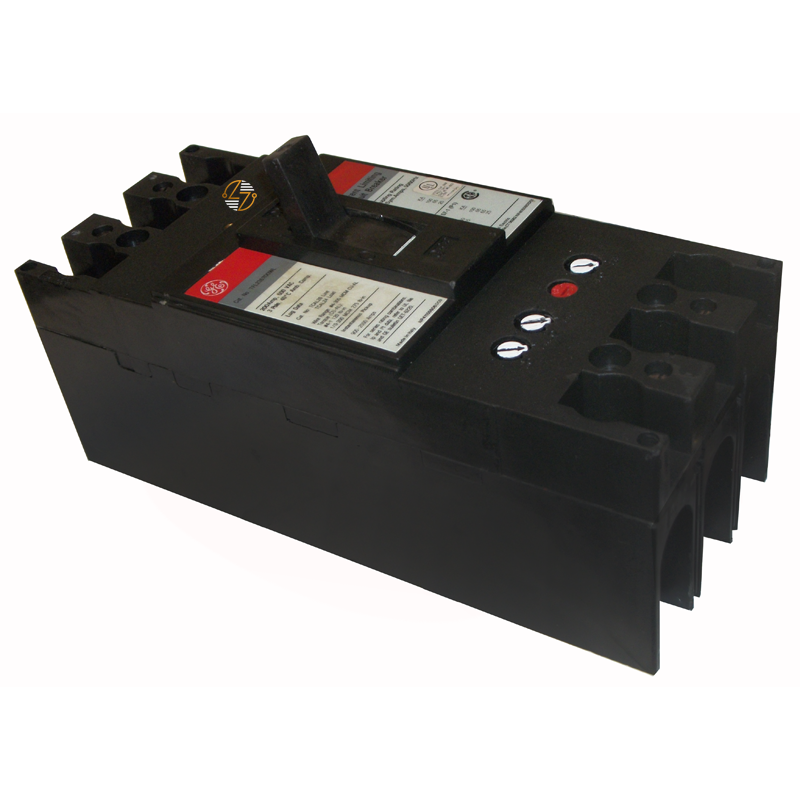

TFL236200WL - 200Amp Circuit Breaker

TFL236200WL - 200Amp Circuit Breaker

Upgrade your electrical protection with the TFL236200WL Circuit Breaker, a robust and reliable current-limiting circuit breaker designed to deliver superior performance in industrial and commercial applications. Engineered for maximum safety and efficiency, this 3-pole, 200-amp circuit breaker features a non-interchangeable trip unit, ensuring consistent and secure operation.

Key Features and Benefits

• Superior Short-Circuit Protection: High A.I.C. ratings provide enhanced system protection, reducing downtime and potential damage from electrical faults.
• Current-Limiting Design: Minimizes let-through energy, preventing excessive system stress and enhancing equipment longevity.
• Non-Interchangeable Trip Unit: Ensures consistent and secure operation without the need for manual trip adjustments.
• Line and Load-Side Lugs Included: Allows for easy installation and secure connectivity.
• Compact & Durable Frame: The TFL frame type offers a space-saving design without compromising on rugged durability.

Technical Specifications

• Number of Poles: 3

• Voltage Ratings: 240V AC (100kA), 480V AC (65kA), 600V AC (25kA)

• Current Rating: 200 Amps

• Frame Type: TFL

• Trip Unit: Non-Interchangeable

• Dimensions: 4.13" W x 10.13" L x 3.81" D

• Weight: 15 lbs

• Lug Configuration: Line and Load-Side Lugs Included


Material Compliance and Certifications

• UL Listed: Ensures adherence to recognized safety standards.
• NEC Compliance: Meets stringent industry regulations for safe and reliable operation.
• ANSI & IEEE Standards: Designed for high-performance industrial circuit protection.

Suitability

• Manufacturing Facilities: Reliable protection for high-power machinery and automated systems.
• Commercial Buildings: Essential for panelboards, switchgear, and large-scale power distribution.
• Data Centers: Ensures safe power distribution for critical IT and server infrastructure.
• Renewable Energy Systems: Supports solar, wind, and alternative power grid protection.
• Utility & Infrastructure: Designed for power plants, substations, and grid management.


Choose the TFL236200WL for superior performance, safety, and reliability in demanding electrical applications.
