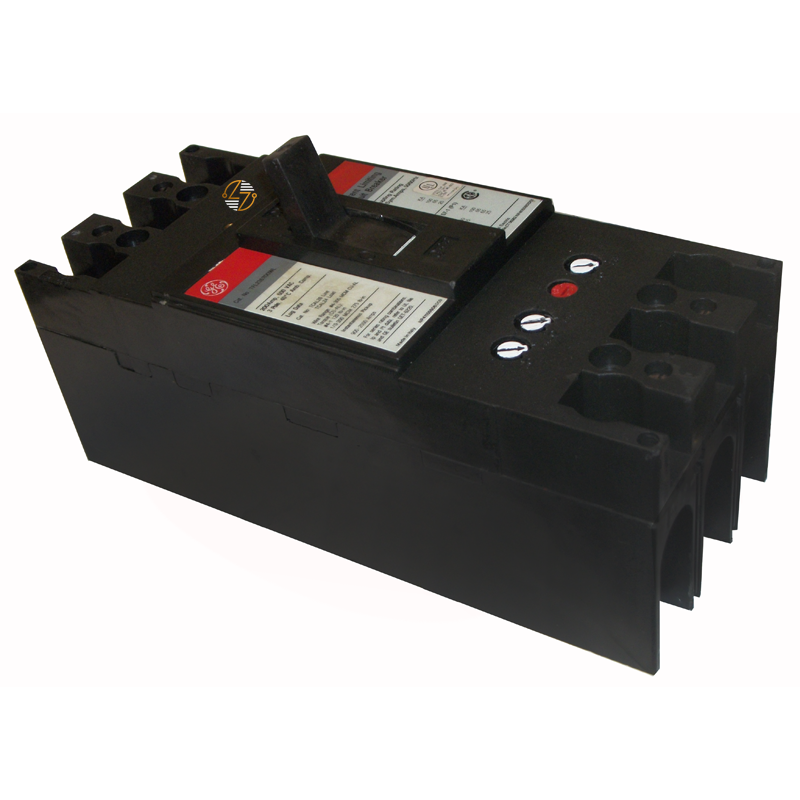

TFL236175WL - 175Amp Circuit Breaker

TFL236175WL - 175Amp Circuit Breaker

The TFL236175WL Current Limiting Circuit Breaker is a high-performance 3-pole solution engineered for superior electrical protection in industrial, commercial, and heavy-duty applications. Designed with a non-interchangeable trip unit and line and load-side lugs included, this breaker provides high short-circuit interrupting capacity, ensuring enhanced system reliability and safety. With an AIC rating of up to 100k at 240VAC, it is ideal for high-fault environments where dependable protection is critical.

Key Features and Benefits

• Current Limiting Technology: Reduces fault currents efficiently, minimizing equipment damage and improving system longevity.
• Non-Interchangeable Trip Unit: Factory-calibrated for precise and reliable circuit protection.
• Heavy-Duty TFL Frame: Built for demanding industrial and commercial applications.
• Pre-Installed Line & Load-Side Lugs: Ensures fast and secure installation.

Technical Specifications

• Amperage Rating: 175A

• Poles: 3P

• Voltage & AIC Rating:
  • 100k @ 240VAC
  • 65k @ 480VAC
  • 25k @ 600VAC
• Frame Type: TFL

• Trip Unit: Non-Interchangeable

• Lugs: Includes Line and Load-Side Lugs

• Dimensions (W x L x D): 4.13" x 10.13" x 3.81"

• Weight: 15 lbs


Material Compliance and Certifications

• UL 489 and CSA C22.2 Certified: Ensures industry-leading safety and reliability.
• High-Quality Insulating Materials: Enhances thermal stability and durability.

Suitability

• Industrial & Commercial Applications: Ideal for factories, warehouses, and high-power facilities requiring high AIC ratings.
• Heavy-Duty Equipment Protection: Ensures safe operation of motors, transformers, and power panels.
• Power Distribution Systems: Provides efficient fault protection for electrical networks and energy management systems.


Choose the TFL236175WL for unmatched protection, reliability, and safety in high-performance electrical systems.
