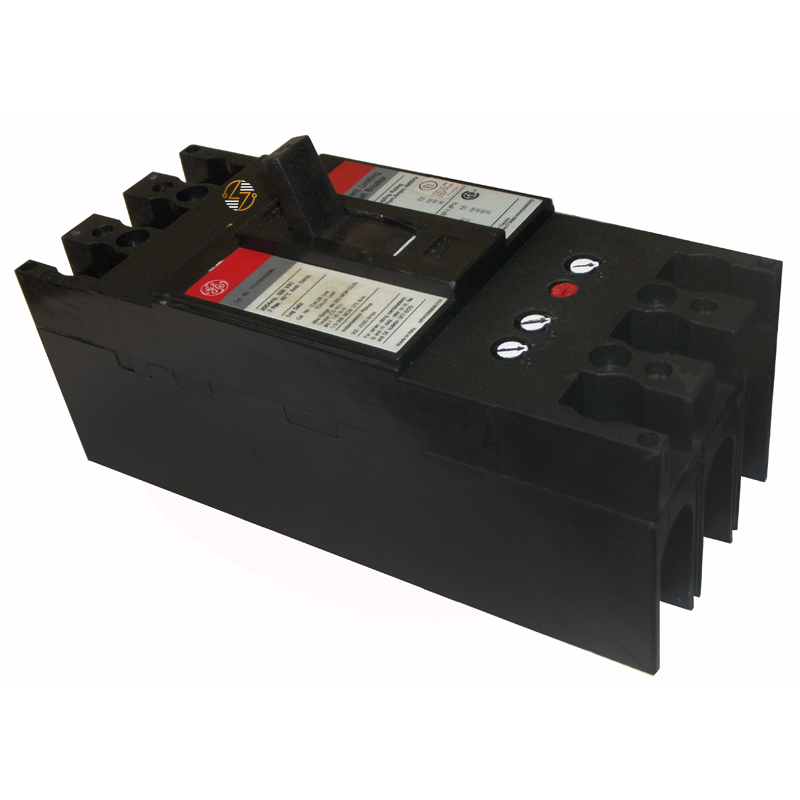

TFL236175 - 175Amp Circuit Breaker

TFL236175 - 175Amp Circuit Breaker

The TFL236175 is a 3-pole, 175-amp Type TFL current-limiting circuit breaker designed for applications requiring dependable overcurrent protection in your commercial and industrial electrical distribution systems. Built with a non-interchangeable trip unit and load-side lugs, this breaker is intended as a form, fit, and function replacement when a Type TFL breaker with matching electrical ratings is specified. Its current-limiting design helps reduce the effects of high fault currents by limiting the energy that passes through the circuit under certain fault conditions. Built to last, the TFL236175 combines the electrical ratings and physical configuration needed to help you maintain compatibility with existing equipment while supporting safe, reliable operation in properly matched installations.

Key Features and Benefits

• 175 Amp continuous current rating for medium- to high-capacity electrical distribution applications.
• 3-pole configuration for protecting three-phase electrical systems.
• Type TFL circuit breaker designed for compatibility with equipment requiring this breaker style.
• Current-limiting design helps reduce let-through energy during qualifying fault events.
• Non-interchangeable trip unit provides a fixed protective configuration as supplied by the manufacturer.
• Load-side lugs included to simplify installation where compatible.
• High Interrupting Capacity:
  • 25kA at 600VAC
  • 65kA at 480VAC
  • 100kA at 240VAC
• Built to last for long-term service in properly maintained electrical systems.


Technical Specifications

• Part Number: TFL236175

• Type: TFL

• Poles: 3

• Amperage: 175A

• Interrupting Rating:
  • 25kA @ 600VAC
  • 65kA @ 480VAC
  • 100kA @ 240VAC
• Trip Unit: Non-Interchangeable

• Current Limiting: Yes

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 10.13 in.
  • Width: 4.13 in.
  • Depth: 3.81 in.

Material Compliance and Certifications

• The TFL236175 is manufactured for use in electrical power distribution applications and is designed to meet the applicable industry requirements associated with its original product classification and ratings. Installation should always be performed in accordance with the National Electrical Code (NEC), local electrical codes, and the equipment manufacturer's specifications. Users should verify compatibility with the intended panelboard, switchboard, or distribution equipment before installation.


Where It Works Best

• The TFL236175 Type TFL circuit breaker is well-suited for commercial, industrial, and institutional electrical systems that require a 175A, 3-pole, current-limiting breaker with the specified interrupting ratings. It is commonly used in distribution equipment, panelboards, switchboards, and similar power distribution assemblies where a compatible Type TFL breaker is specified. When replacing an existing breaker, matching the part number, electrical ratings, mounting configuration, and equipment requirements helps ensure proper form, fit, and functional compatibility.
