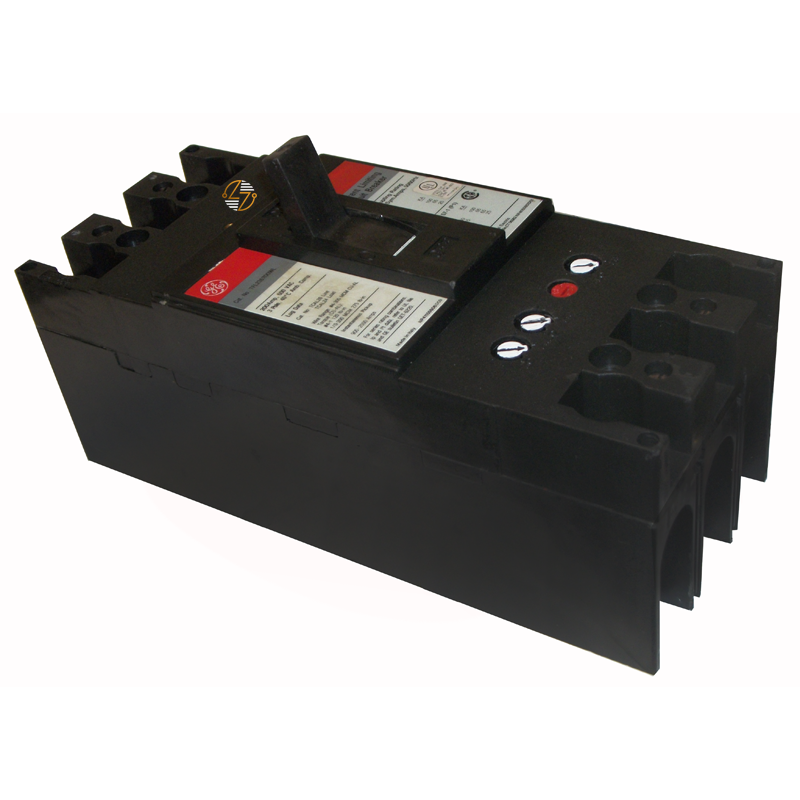

TFL236150WL - 150Amp Circuit Breaker

TFL236150WL - 150 Amp Circuit Breaker

The TFL236150WL is a 150 Amp, 3-pole TFL circuit breaker designed to provide overcurrent and short-circuit protection in your commercial and industrial electrical systems. This breaker features a current limiting design and a non-interchangeable trip unit, making it a suitable replacement for applications where maintaining your original system specifications is important. With interrupting capacities rated at 25kA at 600VAC, 65kA at 480VAC, and 100kA at 240VAC, the TFL236150WL is commonly used in switchboards, panelboards, and other power distribution equipment. Line-side and load-side lugs are included, helping you simplify installation. Built for long service life, this breaker is intended for use in systems where proper fit, function, and electrical ratings matter.

Key Features and Benefits

• 150 Amp current rating
• 3-pole configuration for three-phase applications
• Current limiting design
• Non-interchangeable trip unit
• Includes line-side and load-side lugs
• Interrupting ratings up to 100kA at 240VAC
• Suitable for commercial and industrial power distribution equipment
• Built for years of dependable service

Technical Specifications

• Part Number: TFL236150WL
• Type: TFL
• Amperage: 150A
• Poles: 3
• A.I.C. Rating: 25kA @ 600VAC; 65kA @ 480VAC; 100kA @ 240VAC
• Trip Unit: Non-Interchangeable
• Circuit Breaker Style: Current Limiting
• Included Accessories: Line-Side and Load-Side Lugs
• Height: 10.13 in.
• Width: 4.13 in.
• Depth: 3.81 in.

Material Compliance and Certifications

• This circuit breaker is manufactured for use in electrical distribution systems and should be installed in accordance with applicable electrical codes and equipment requirements. Users should verify compliance and certification requirements based on the specific installation and application.
• UL Standards: When installed according to electrical codes, you can have confidence that this unit adheres to expected construction and compliance benchmarks.

Where It Works Best

• The TFL236150WL is often found in commercial buildings, industrial facilities, manufacturing operations, and other electrical distribution systems that require a 150 Amp, 3-pole circuit breaker. It is a practical choice for maintaining existing equipment where matching the original specifications and interrupting ratings is important.
