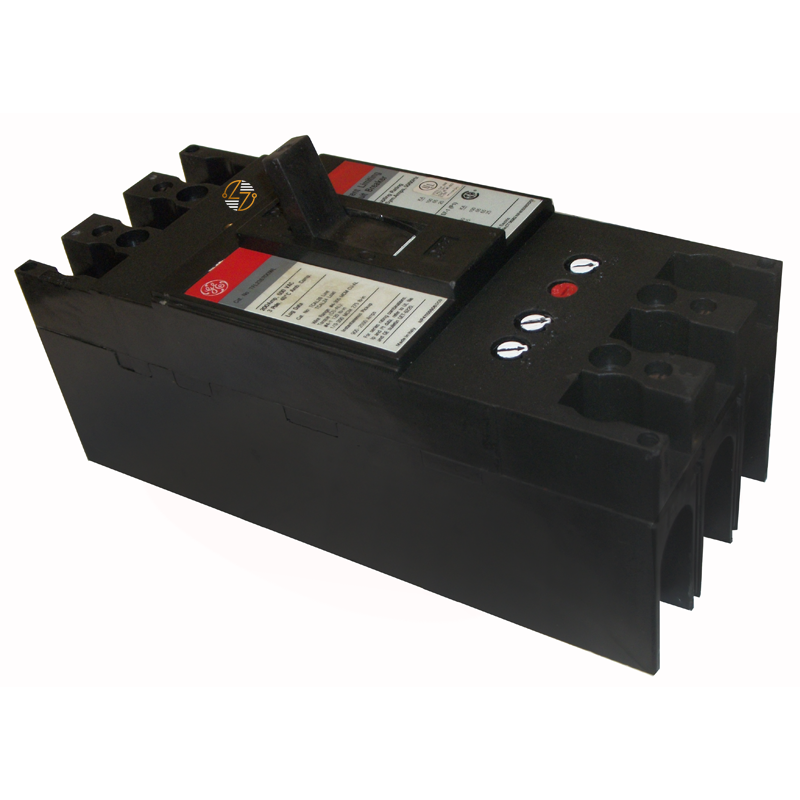

TFL236125WL - 125Amp Circuit Breaker

TFL236125WL - 125Amp Circuit Breaker

The TFL236125WL Circuit Breaker is a top-tier current-limiting circuit breaker designed for superior protection in industrial and commercial electrical systems. Engineered with a non-interchangeable trip unit, this three-pole breaker ensures reliable operation while enhancing safety with its high short-circuit interrupting capacity across various voltage levels.

Key Features and Benefits

• Superior Overcurrent Protection: The TFL236125WL is a current-limiting circuit breaker, significantly reducing let-through energy to prevent damage to electrical components.
• Reliable Non-Interchangeable Trip Unit: Ensures consistent trip settings, eliminating the risk of unauthorized adjustments, which enhances electrical safety and system stability.
• Line & Load-Side Lugs Included: Pre-installed lugs for easier installation and secure power connections.
• Optimized for Industrial Use: Ideal for applications in manufacturing plants, commercial buildings, data centers, and electrical distribution systems.

Technical Specifications

• Amperage Rating: 125A

• Poles: 3

• Voltage Ratings & Interrupting Capacity:

  • 100kA @ 240VAC
  • 65kA @ 480VAC
  • 25kA @ 600VAC
• Frame Type: TFL

• Trip Unit: Non-Interchangeable

• Ship Weight: 15 lbs

• Dimensions: 4.13" W x 10.13" L x 3.81" D


Material Compliance and Certifications

• UL Listed: Ensures adherence to industry safety and performance standards.
• NEC Compliant: Meets National Electrical Code requirements for safety and performance.

Suitability & Applications

• This three-pole, 125A circuit breaker is best suited for industrial power distribution, commercial buildings, motor control centers, and large-scale electrical installations. Its high AIC rating makes it perfect for critical power protection where electrical faults could cause significant system downtime or equipment damage.


The TFL236125WL Circuit Breaker is engineered for high-performance and reliability, ensuring enhanced safety and protection for industrial and commercial power systems.
