TFL236090 - 90Amp Circuit Breaker

TFL236090 - 90Amp Circuit Breaker

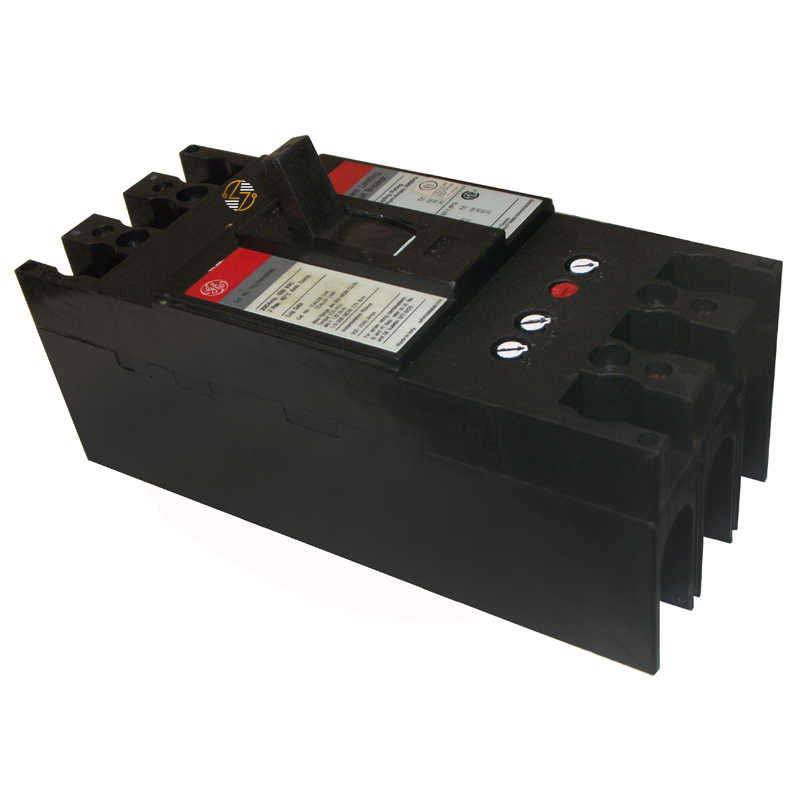

The General Electric TFL236090 is a robust molded case circuit breaker designed for demanding industrial and commercial applications. With a 90-ampere rating and three poles, it ensures reliable protection for electrical systems operating up to 600 volts AC. Its current-limiting feature enhances safety by swiftly interrupting fault currents, minimizing potential damage to equipment. The non-interchangeable trip unit and included load-side lugs simplify installation and maintenance, making it a dependable choice for safeguarding your electrical infrastructure.

Key Features and Benefits

• Current Limiting: This feature reduces the let-through energy during fault conditions, enhancing system safety and prolonging the lifespan of connected equipment.
• Non-Interchangeable Trip Unit: Ensures consistent performance and reliability by preventing unauthorized modifications to the trip settings.
• Load-Side Lugs Included: Facilitates straightforward installation, reducing setup time and ensuring secure connections.


Technical Specifications

• Frame Type: TFL

• Amperage Rating: 90A

• Poles: 3

• Voltage Rating: Up to 600VAC

• Interrupting Capacity (AIC):
  • 25kA at 600VAC
  • 65kA at 480VAC
  • 100kA at 240VAC
• Dimensions: 4.13 inches (W) x 10.13 inches (L) x 3.81 inches (D)

• Ship Weight: 15.00 lbs


Material Compliance and Certifications

• Industry Standards: The TFL236090 is constructed with high-quality materials that comply with industry standards for safety and performance. While specific certifications for this model are not detailed here, General Electric's circuit breakers typically adhere to relevant UL standards and other applicable certifications. For detailed compliance information, please refer to the manufacturer's official documentation or contact their support team.


Suitability

• This circuit breaker is ideal for industrial and commercial settings requiring reliable overcurrent protection for electrical systems up to 600VAC. Its high interrupting capacity and current-limiting features make it suitable for applications where minimizing downtime and protecting equipment are critical.
