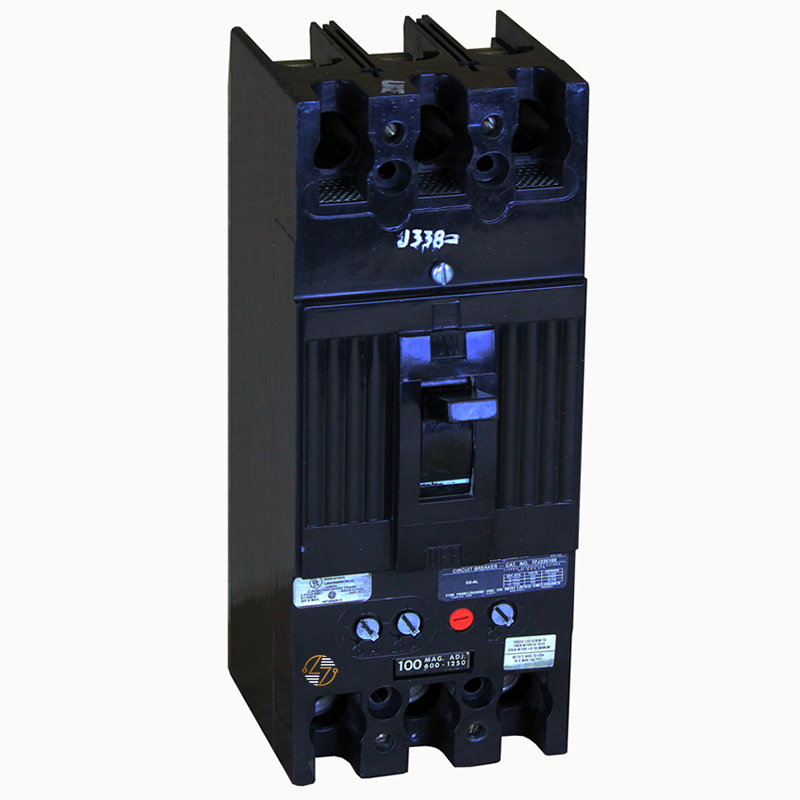

TFK236125 **Older Style** - 125Amp Circuit Breaker

TFK236125 **Older Style** - 125Amp Circuit Breaker

The General Electric TFK236125 is a high-performance 3-pole molded case circuit breaker engineered for industrial applications where reliable overcurrent protection is critical. Rated for 125 amperes and supporting voltages up to 600 VAC, this circuit breaker combines durability and efficiency in a compact design. Its advanced thermal magnetic trip unit and high interrupting capacity make it an indispensable component for safeguarding complex electrical systems.

Key Features and Benefits:

• Exceptional Interrupting Capacity (AIC): Designed for optimal safety, the TFK236125 offers interrupting ratings of 25kA at 240VAC, 22kA at 480VAC, and 18kA at 600VAC, ensuring reliable fault current management.
• Thermal Magnetic Trip Unit: The interchangeable thermal magnetic trip unit provides precise and adjustable protection against overloads and short circuits, ensuring flexibility for various industrial applications.
• Ease of Installation: Pre-equipped with load-side lugs, this circuit breaker allows for quick, secure, and efficient connections, minimizing installation time.

Technical Specifications:

• Amperage: 125A
• Voltage Rating: Up to 600 VAC
• Poles: 3
• Interrupting Capacity (AIC):
  • 25kA @ 240VAC
  • 22kA @ 480VAC
  • 18kA @ 600VAC
• Frame Type: TFK
• Dimensions: 4.13" W x 10.13" L x 3.81" D
• Ship Weight: 10 lbs

Material Compliance and Certifications:

• The TFK236125 adheres to stringent industry standards, reflecting General Electric‰۪s commitment to safety and quality. While specific certifications for this model are not detailed here, GE molded case circuit breakers typically comply with UL 489 standards and other relevant global safety certifications. Contact the manufacturer or authorized distributor for detailed compliance information.

Suitability:

• Ideal for industrial, commercial, and manufacturing applications, the TFK236125 excels in environments demanding high interrupting capacity and consistent performance.åÊIt is particularly suited for protecting electrical systems in facilities with complex power requirements, such as data centers, factories, and large commercial buildings.
