GENERAL ELECTRIC
TFK236100 **Older Style** - 100Amp Circuit Breaker
TFK236100 **Older Style** - 100Amp Circuit Breaker
Couldn't load pickup availability
TFK236100 **Older Style** - 100Amp Circuit Breaker

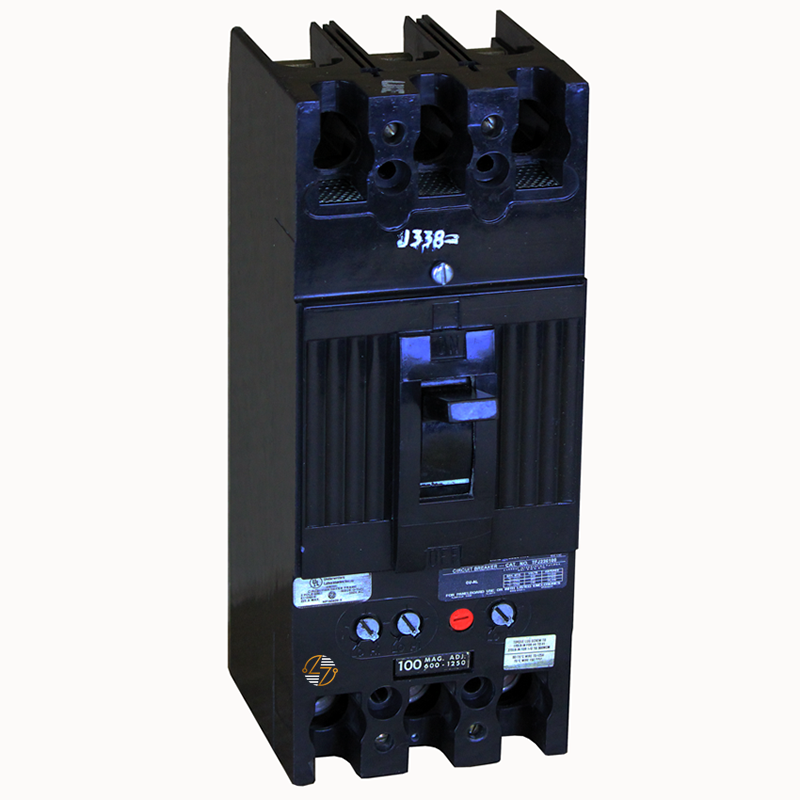

The TFK236100 is a 3-pole, 100 amp molded case circuit breaker with an interchangeable thermal magnetic trip unit. It is part of the TFK series and features the older style black face commonly found in your existing commercial and industrial electrical equipment. This breaker is built on the F225 frame and comes with load-side lugs installed.
Many facilities still operate equipment that was originally built around TFK breakers. When servicing that equipment, matching the breaker type, frame size, amp rating, and interrupting capacity can be important. The TFK236100 offers the same basic configuration used in many three-phase distribution systems and is built for years of service in your demanding electrical applications.
Key Features and Benefits
- Catalog Number: TFK236100
- Type: TFK breaker
- 100 amp rating
- 3 poles
- Older style black face
- Thermal magnetic trip unit
- F225 molded case frame
- Load-side lugs included
- Suitable for compatible commercial and industrial equipment
- Built to last
Technical Specifications
- Part Number: TFK236100
- Type: TFK
- Amperage: 100A
- Poles: 3
- Trip Unit: Thermal Magnetic
-
A.I.C. Rating:
- 18kA @ 600VAC
- 22kA @ 480VAC
- 25kA @ 240VAC
-
Dimensions:
- Height: 10.13 in.
- Width: 4.13 in.
- Depth: 3.81 in.
- Included: Load-Side Lugs
- Face Style: Older Style Black Face
Material Compliance and Certifications
- This breaker was manufactured for use in commercial and industrial power distribution systems. Users should confirm compatibility with their equipment and verify all applicable electrical ratings and installation requirements before use.
Where It Works Best
- Industrial facilities
- Manufacturing plants
- Commercial buildings
- Distribution equipment
- Panelboards
- Switchboards
- Existing installations using Type TFK breakers
- Three-phase electrical systems requiring a 100 amp breaker
- The TFK236100 is frequently used as a replacement in existing equipment where a Type TFK, 100 amp, 3-pole breaker is specified.
