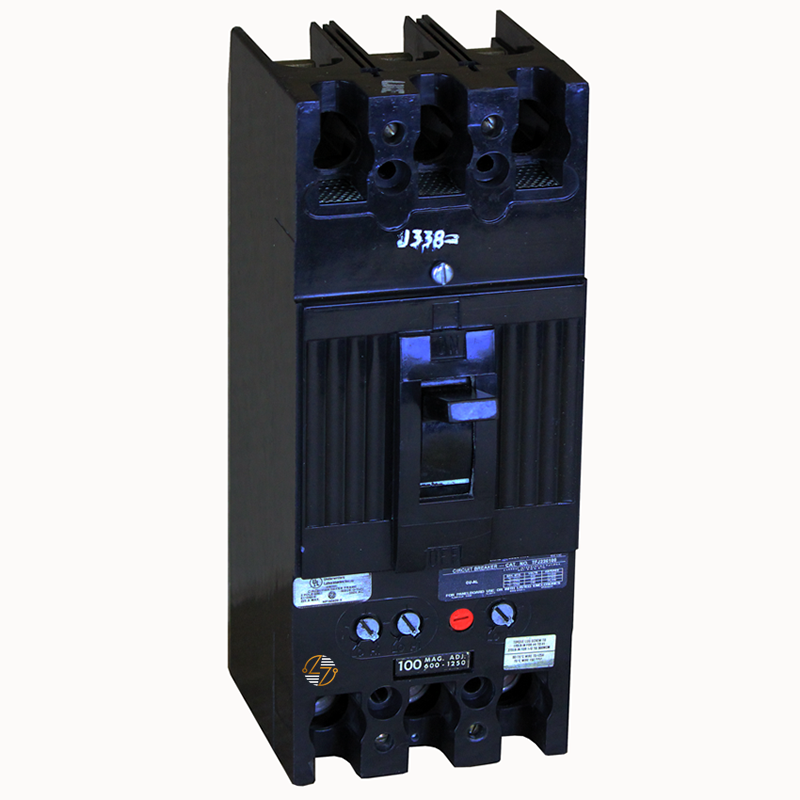

TFK236090WL **Older Style** - 90Amp Circuit Breaker

TFK236090WL **Older Style** - 90Amp Circuit Breaker

Introducing the General Electric TFK236090WL Molded Case Circuit Breaker, a robust solution engineered for industrial applications requiring dependable circuit protection. This 3-pole breaker is rated for 90 amperes and operates at up to 600VAC, making it suitable for a wide range of electrical systems. Its interchangeable thermal magnetic trip unit ensures both long-time and instantaneous protection, safeguarding your equipment from overloads and short circuits. Designed with both line and load-side lugs, it facilitates straightforward installation and secure connections.

Key Features and Benefits

• Interchangeable Thermal Magnetic Trip Unit: Provides customizable protection settings to meet specific application requirements.
• High Interrupting Capacity: Withstands fault currents with AIC ratings of 25kA at 240VAC, 22kA at 480VAC, and 18kA at 600VAC, ensuring safety in high-fault environments.
• Durable Construction: Built to endure demanding industrial conditions, offering longevity and reliability.
• Easy Installation: Equipped with line and load-side lugs for hassle-free setup and secure electrical connections.


Technical Specifications

• Frame Type: TFK (F225 Line)

• Poles: 3

• Amperage Rating: 90A

• Voltage Rating: Up to 600VAC

• Interrupting Capacity (AIC):
  • 25kA at 240VAC
  • 22kA at 480VAC
  • 18kA at 600VAC
• Dimensions: 4.13 inches (W) x 10.13 inches (L) x 3.81 inches (D)

• Ship Weight: Approximately 10 lbs


Material Compliance and Certifications

• The TFK236090WL complies with industry standards for molded case circuit breakers, ensuring adherence to safety and performance requirements.
• It meets the specifications outlined in UL 489 and CSA C22.2 No.5-16 for molded-case circuit breakers, switches, and enclosures.


Suitability

• This circuit breaker is ideal for industrial and commercial applications requiring reliable circuit protection. Its high interrupting capacity and durable design make it suitable for environments where robust performance is essential. The interchangeable trip unit allows for adaptability across various electrical systems, providing tailored protection to meet specific operational needs.


Invest in the General Electric TFK236090WL Molded Case Circuit Breaker for a dependable and customizable solution to your circuit protection requirements.
