TFK236080 **Older Style** - 80Amp Circuit Breaker

TFK236080 **Older Style** - 80Amp Circuit Breaker

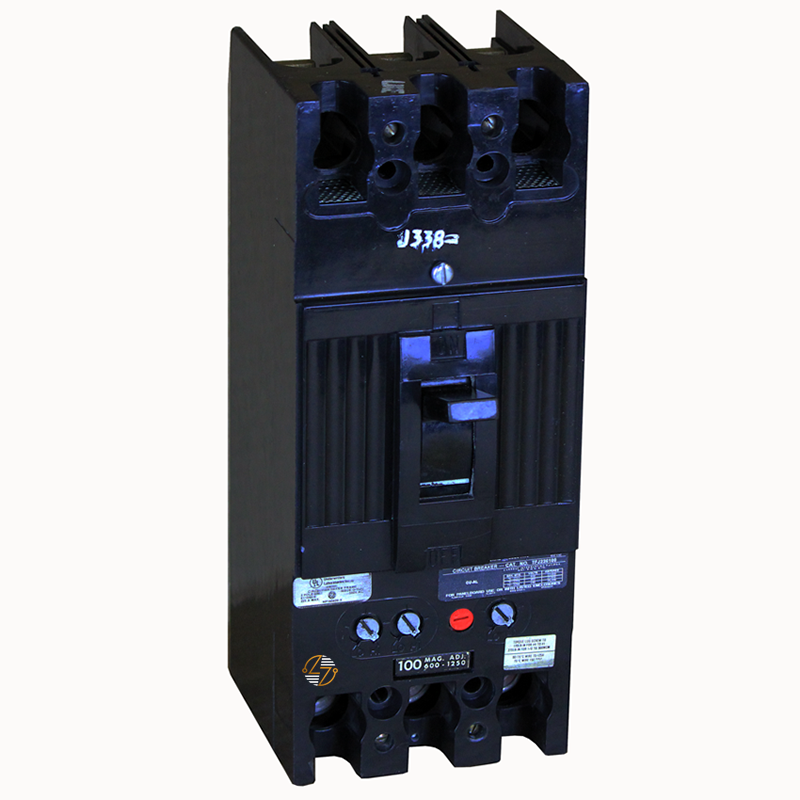

Introducing the General Electric TFK236080 Circuit Breaker, a robust solution engineered for industrial applications requiring dependable overcurrent protection. This 3-pole, 80-amp breaker operates at up to 600 VAC, making it suitable for a variety of electrical systems.

Key Features and Benefits:

• Interchangeable Thermal Magnetic Trip Unit: Allows for precise customization to meet specific application needs.
• High Interrupting Capacity: Rated at 22kA at 480V, ensuring reliable performance in demanding environments.
• Load-Side Lugs Included: Facilitates straightforward installation and secure connections.

Technical Specifications:

• Amperage: 80 Amps
• Voltage Rating: Up to 600 VAC
• Interrupting Capacity (AIC):
• 25kA at 240V
• 22kA at 480V
• 18kA at 600V
• Poles: 3
• Frame Type: TFK (F225 Line)
• Dimensions: 4.13 inches (W) x 10.13 inches (L) x 3.81 inches (D)
• Ship Weight: Approximately 10 lbs

Material Compliance and Certifications:

• The TFK236080 is constructed with high-quality molded case materials, ensuring durability and compliance with industry standards.
• It meets UL 489 requirements for molded-case circuit breakers, providing assurance of safety and performance.

Suitability:

• Ideal for industrial settings, the TFK236080 is designed to protect electrical circuits from overloads and short circuits.
• Its high interrupting capacity and interchangeable trip unit make it adaptable for various applications, including manufacturing facilities, commercial buildings, and other environments requiring reliable circuit protection.

Invest in the General Electric TFK236080 Circuit Breaker for a dependable and customizable solution to your industrial electrical protection needs.
