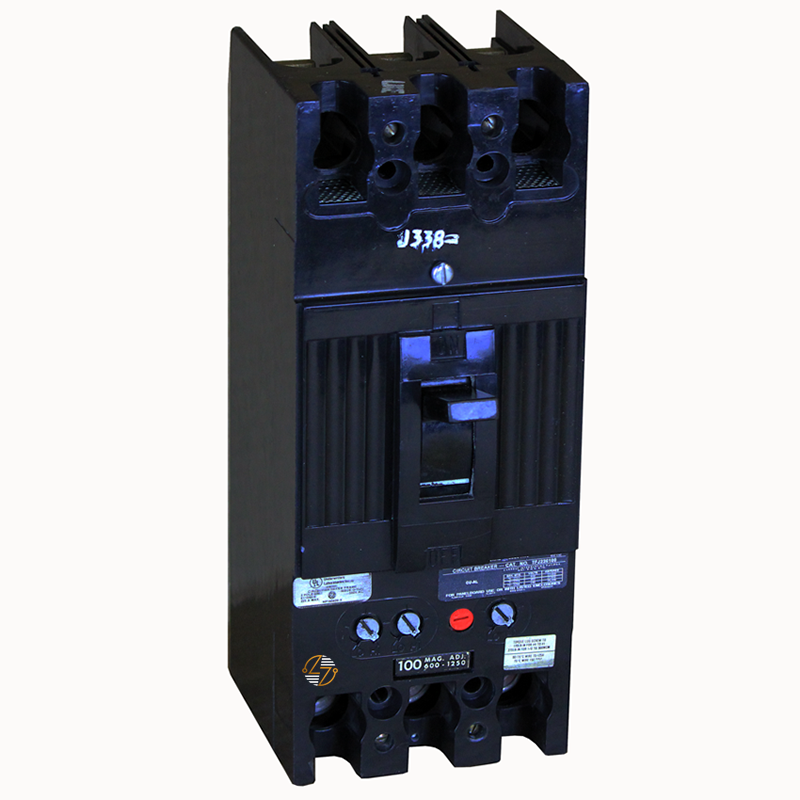

The TFJ236200WL molded case circuit breaker is a 200-amp, 3-pole industrial circuit breaker designed for dependable overcurrent protection in your commercial and industrial power distribution systems. Featuring the older style black face design, this breaker is part of the TFJ series and utilizes a non-interchangeable thermal magnetic trip unit to provide protection against overloads and short circuits. Built on the proven F225 line molded case frame, the TFJ236200WL is well-suited for maintaining and servicing existing electrical systems where matching form, fit, and function is essential. Included line-side and load-side lugs help you to simplify installation and replacement, while its durable construction reflects the long service life expected in demanding electrical environments. Designed to withstand the rigors of industrial applications, this breaker offers the ratings and compatibility needed to support continued operation of legacy switchgear, panelboards, and distribution equipment.

Key Features and Benefits

• 200 Amp Current Rating: 200 Amp current rating for medium- to large-scale power distribution applications.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Older Style Black Face Design: Older style black face design for compatibility with existing installations.
• Thermal Magnetic Protection: The thermal magnetic trip unit provides overload and short-circuit protection.
• Non-Interchangeable Trip Unit: Non-interchangeable trip unit configuration.
• Industrial Construction: F225 line molded case construction designed for industrial environments.
• Included Accessories: Includes both line-side and load-side lugs.
• Maintenance and Replacement Applications: Suitable for maintenance, repair, and replacement applications where matching specifications are important.
• Long-Term Service: Built to provide long-term service in commercial and industrial electrical systems.


Technical Specifications

• Part Number: TFJ236200WL

• Series Type: TFJ

• Frame: F225 Line Molded Case

• Trip Unit: Thermal Magnetic

• Trip Configuration: Non-Interchangeable

• Amperage Rating: 200 Amps

• Number of Poles: 3

• Interrupting Rating:
  • 18kA @ 600VAC
  • 22kA @ 480VAC
  • 25kA @ 240VAC
• Dimensions:
  • Height: 10.13 in.
  • Width: 4.13 in.
  • Depth: 3.81 in.
• Included Accessories: Line and Load-Side Lugs

• Face Style: Older Style Black Face


Material Compliance and Certifications

• Industry Standards: This molded case circuit breaker was manufactured to meet applicable industry standards and electrical system requirements in effect at the time of production.
• Installation Verification: Users should verify all ratings, specifications, and installation requirements against the equipment manufacturer's documentation and applicable local electrical codes before installation.


Where It Works Best

• The TFJ236200WL is commonly used in industrial manufacturing facilities, commercial buildings and office complexes, power distribution systems, motor control and process equipment applications, electrical distribution panels and switchboards, facility maintenance and retrofit projects requiring compatible replacement breakers, and existing installations utilizing TFJ-series molded case circuit breakers. Its combination of a 200-amp rating, three-pole design, and thermal magnetic protection makes it a practical choice for maintaining electrical systems that require a breaker matching the original equipment's specifications and configuration.
