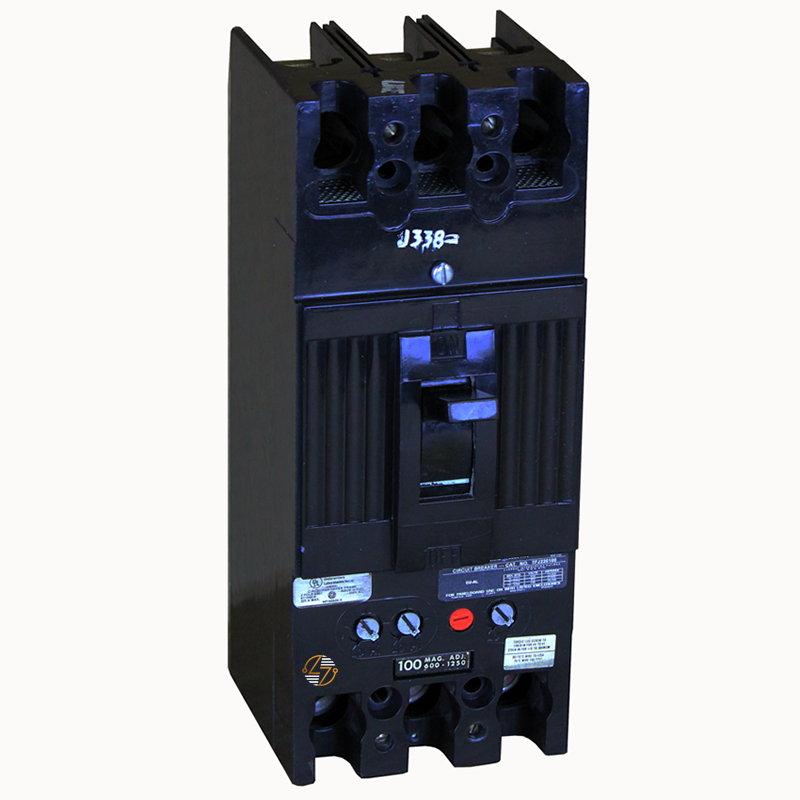

TFJ236175WL **Older Style** - 175Amp Circuit Breaker

TFJ236175WL **Older Style** - 175Amp Circuit Breaker

The General Electric TFJ236175WL is a robust 3-pole, 175-amp molded case circuit breaker designed for industrial applications requiring reliable overcurrent protection. With a voltage rating of up to 600VAC and an interrupting capacity of 22kA at 480V, this breaker ensures safety and efficiency in demanding electrical environments. Its thermal magnetic non-interchangeable trip unit provides both long-time and instantaneous protection, making it suitable for a wide range of operational needs.

Key Features and Benefits:

• High Interrupting Capacity: Rated at 22kA at 480V, it effectively safeguards electrical systems from potential faults.
• Thermal Magnetic Trip Unit: Offers dependable long-time and instantaneous protection, enhancing system reliability.
• Durable Construction: The molded case design ensures longevity and resilience in industrial settings.
• Complete Connectivity: Equipped with line and load-side lugs for straightforward installation and secure connections.

Technical Specifications:

• Manufacturer: General Electric
• Frame Type: TFJ
• Amperage: 175A
• Poles: 3
• Voltage Rating: Up to 600VAC
• Interrupting Capacity (AIC):
  • 22kA at 480VAC
  • 25kA at 240VAC
• Dimensions: 4.13" W x 10.13" L x 3.81" D
• Weight: Approximately 10 lbs

Material Compliance and Certifications:

• The TFJ236175WL complies with industry standards, including UL and CSA certifications, ensuring adherence to safety and performance requirements.

Suitability:

• This circuit breaker is ideal for industrial applications requiring reliable overcurrent protection in systems up to 600VAC.åÊIts robust design and high interrupting capacity make it suitable for protecting electrical circuits in manufacturing plants, commercial buildings, and other demanding environments.

Invest in the General Electric TFJ236175WL for a dependable solution to your industrial circuit protection needs.
