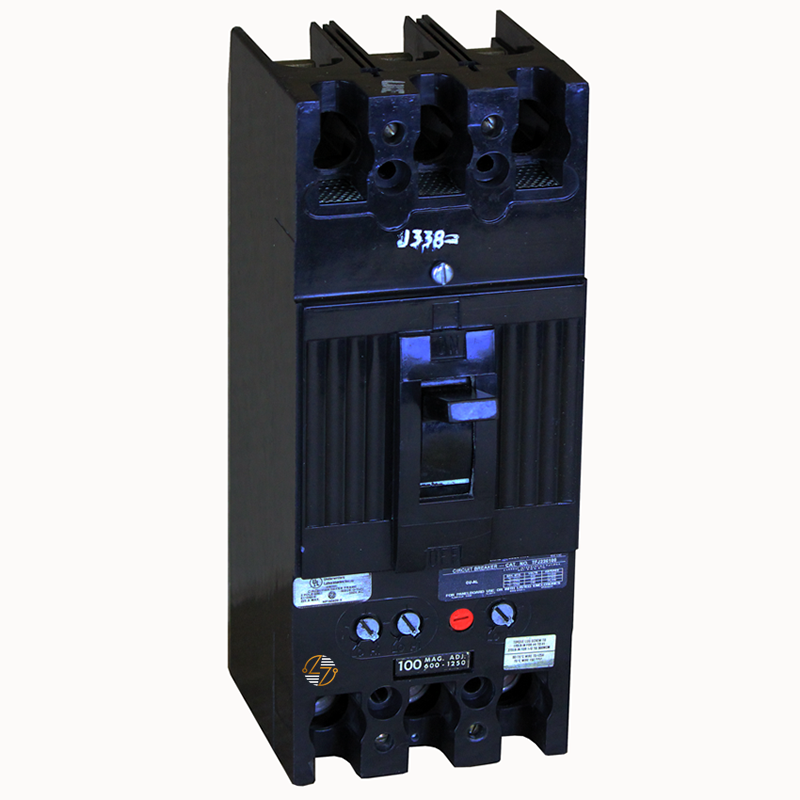

TFJ236175 **Older Style** - 175Amp Circuit Breaker

TFJ236175 **Older Style** - 175Amp Circuit Breaker

The TFJ236175 is a 175-amp, 3-pole Type TFJ molded-case circuit breaker built on the F225 frame and equipped with a thermal-magnetic trip unit. Featuring the older-style black face, this breaker is commonly used in your commercial and industrial electrical distribution systems when a matching replacement is needed for existing equipment. This model includes a non-interchangeable trip unit and comes with load-side lugs installed. With interrupting ratings of 18kA at 600VAC, 22kA at 480VAC, and 25kA at 240VAC, the TFJ236175 is intended for applications requiring protection against overloads and short circuits within compatible electrical systems. Its dimensions and configuration make it a suitable replacement where maintaining the original form, fit, and function is important. Built for long service life, the TFJ236175 continues to be used in facilities that rely on established power distribution equipment and require components that match existing specifications.

Key Features and Benefits

• Catalog Number: TFJ236175
• 175 Amp rating
• 3-pole configuration
• Type TFJ molded case circuit breaker
• Older style black face design
• F225 line frame construction
• Thermal magnetic trip unit
• Non-interchangeable trip unit
• Includes load-side lugs
• Suitable for replacement and maintenance applications requiring a matching TFJ breaker


Technical Specifications

• Part Number: TFJ236175

• Type: TFJ

• Frame: F225

• Amperage: 175A

• Poles: 3

• Trip Unit: Thermal Magnetic

• Trip Unit Style: Non-Interchangeable

• A.I.C. Rating: 18kA @ 600VAC

• A.I.C. Rating: 22kA @ 480VAC

• A.I.C. Rating: 25kA @ 240VAC

• Dimensions:
  • Height: 10.13 in.
  • Width: 4.13 in.
  • Depth: 3.81 in.
• Included: Load-Side Lugs

• Face Style: Older Style Black Face


Material Compliance and Certifications

• Commercial and Industrial Applications: This circuit breaker was manufactured for use in commercial and industrial electrical distribution systems.
• Compliance Requirements: Compliance requirements may vary by installation, jurisdiction, and application. Users should verify all applicable codes, standards, and equipment requirements before installation.


Where It Works Best

• The TFJ236175 is frequently found in industrial facilities, manufacturing plants, commercial buildings, power distribution equipment, switchboards, panelboard applications, electrical maintenance projects, and existing installations using Type TFJ breakers. It is particularly useful when a replacement breaker is needed that matches the original equipment's ratings, dimensions, and configuration.
