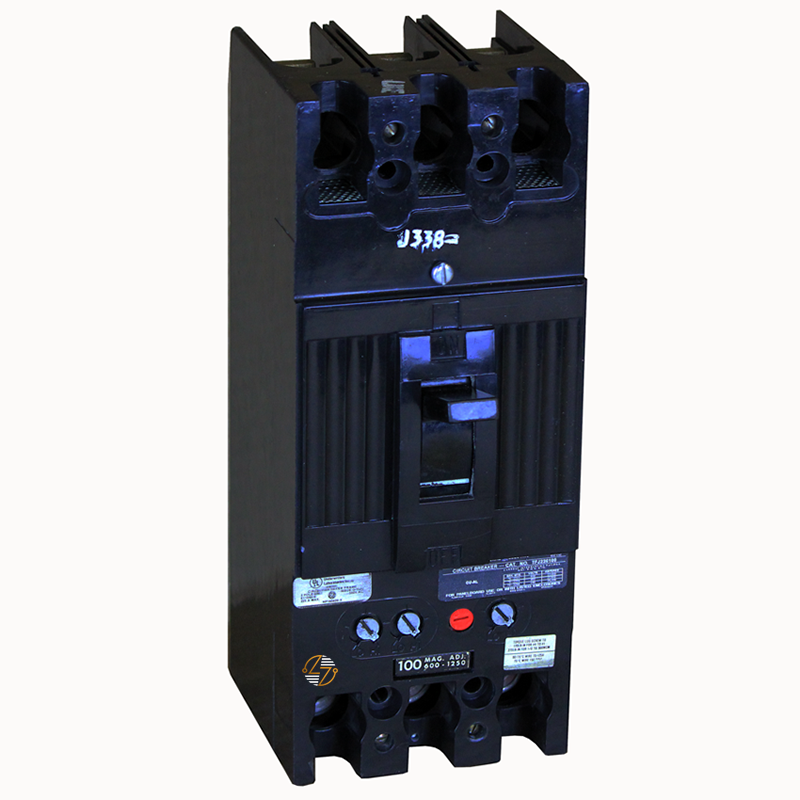

TFJ236125WL **Older Style** - 125Amp Circuit Breaker

TFJ236125WL **Older Style** - 125Amp Circuit Breaker

Introducing the General Electric TFJ236125WL Molded Case Circuit Breaker, a robust solution engineered for industrial applications requiring reliable overcurrent protection. This 3-pole, 125-amp breaker operates at up to 600VAC, making it ideal for safeguarding electrical systems in demanding environments.

Key Features and Benefits:

• Thermal Magnetic Trip Unit: Combines both thermal and magnetic tripping mechanisms to provide precise protection against overloads and short circuits.
• Non-Interchangeable Trip Unit: Ensures consistent performance and reliability by maintaining a fixed trip setting, reducing the risk of improper adjustments.
• Line and Load-Side Lugs Included: Facilitates straightforward installation with pre-installed lugs on both line and load sides, accommodating copper or aluminum conductors.

Technical Specifications:

• Amperage Rating: 125A
• Interrupting Capacity (AIC):
• 25kA at 240VAC
• 22kA at 480VAC
• 18kA at 600VAC
• Frame Type: TFJ (F225 Line)
• Poles: 3
• Connection Type: Bolt-on with feed-thru configuration

Material Compliance and Certifications:

• Terminal Compatibility: Supports both copper and aluminum conductors, enhancing versatility in various installations.
• Certifications: Complies with industry standards, ensuring safety and performance in electrical distribution systems.

Suitability:

• The TFJ236125WL is designed for industrial settings that demand dependable circuit protection.åÊIts thermal magnetic trip unit and substantial interrupting capacities make it suitable for applications involving motors, transformers, and other heavy-duty equipment.
