TFJ236080WL **Older Style** - 80Amp Circuit Breaker

TFJ236080WL **Older Style** - 80Amp Circuit Breaker

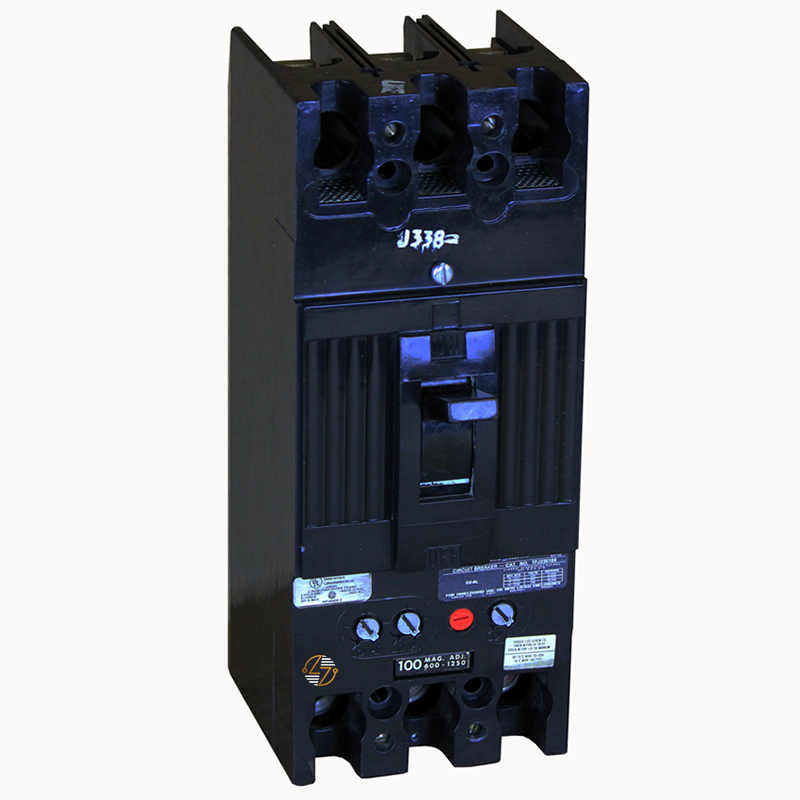

The TFJ236080WL is an 80 amp, 3-pole molded case circuit breaker built on the F225 frame and equipped with a thermal magnetic trip unit. Featuring the older style black face, this breaker is commonly found in your industrial and commercial power distribution systems where dependable overcurrent protection is required. The non-interchangeable trip unit responds to both overload and short-circuit conditions, helping you protect connected equipment and electrical circuits from damage.

This breaker includes both line-side and load-side lugs, making it suitable for installations where a complete replacement unit is needed. With interrupting ratings of up to 25kA at 240VAC, the TFJ236080WL is intended for use in systems that require an 80-amp, three-phase circuit breaker matching the TFJ series form and fit. Like many molded case breakers of its class, it was built for long service life in demanding electrical environments.

Key Features and Benefits

• Catalog Number: TFJ236080WL
• Older Style Black Face Design: Older style black face design
• 80 Amp Current Rating: 80 amp current rating
• 3-Pole Configuration: 3-pole configuration
• Thermal Magnetic Trip Unit: Thermal magnetic trip unit
• Non-Interchangeable Trip Design: Non-interchangeable trip design
• F225 Molded Case Frame: F225 molded case frame
• Includes Line-Side and Load-Side Lugs: Includes line-side and load-side lugs
• Suitable for Three-Phase Power Distribution Applications: Suitable for three-phase power distribution applications
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible TFJ installations


Technical Specifications

• Part Number: TFJ236080WL

• Type: TFJ

• Amperage: 80A

• Poles: 3

• Trip Unit: Thermal Magnetic

• Frame: F225

• Interrupting Rating:
  • 25kA @ 240VAC
  • 22kA @ 480VAC
  • 18kA @ 600VAC
• Height: 10.13 in.

• Width: 4.13 in.

• Depth: 3.81 in.

• Included: Line and Load-Side Lugs

• Face Style: Older Style Black Face


Material Compliance and Certifications

• Commercial and Industrial Applications: This molded case circuit breaker was manufactured for use in commercial and industrial electrical systems.
• Code and Installation Verification: Users should verify all applicable code requirements, certifications, and installation standards for their specific project and application.


Where It Works Best

• The TFJ236080WL is often used in industrial facilities, manufacturing operations, commercial buildings, distribution equipment, and other three-phase electrical systems requiring 80-amp overcurrent protection. It is particularly useful when maintaining or servicing existing equipment that was originally designed for TFJ-series breakers, where matching dimensions and electrical ratings are important.
