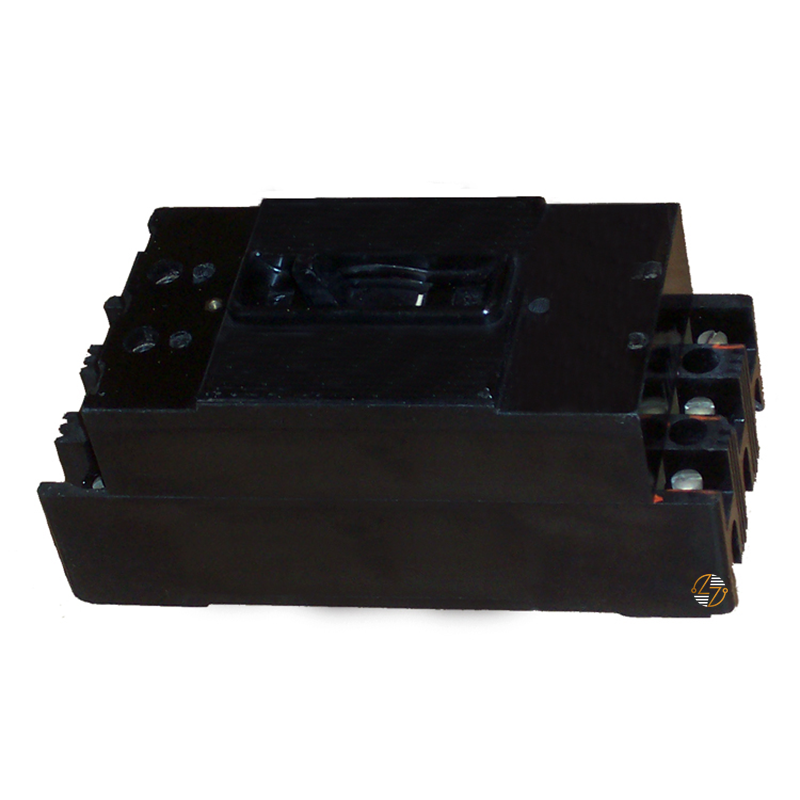

TF136100 - 100Amp Circuit Breaker

TF136100 - 100 Amp Circuit Breaker

The TF136100 is a TF-frame molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring dependable circuit protection. Featuring a 100 Amp rating, 3-pole configuration, and an interrupting capacity of 14kA at 480VAC, this breaker helps you protect electrical equipment and branch circuits from damage caused by overloads and short circuits. Built to provide proper form, fit, and function for compatible equipment, the TF136100 is a practical replacement solution for maintaining existing electrical systems. Its durable construction reflects the long service life expected from quality molded case circuit breakers installed and maintained according to applicable electrical standards.

Key Features and Benefits

• TF-frame molded case circuit breaker.
• 100 Amp current rating
• 3-pole design for three-phase electrical systems
• 14kA interrupting capacity at 480VAC
• Designed for form, fit, and functional compatibility with applicable TF-frame equipment
• Helps protect circuits and connected equipment from overloads and short circuits
• Compact molded case construction for dependable installation
• Built to provide lasting service in properly maintained electrical systems

Technical Specifications

• Part Number: TF136100
• Frame Type: TF
• Product Type: Circuit Breaker
• Amperage: 100 Amps
• Poles: 3
• Interrupting Rating (A.I.C.): 14kA @ 480VAC
• Voltage Rating: 480VAC
• Dimensions:
  • Height: 9.38 in.
  • Width: 4.13 in.
  • Depth: 4.00 in.

Material Compliance and Certifications

• Installation and Compliance: The TF136100 is manufactured for installation in compatible electrical distribution systems and should be installed and maintained in accordance with applicable electrical codes and manufacturer specifications. Compliance with project-specific standards, certifications, and local code requirements should always be verified before installation.

Where It Works Best

• The TF136100 is well-suited for commercial, industrial, and institutional electrical distribution systems that require a 3-pole, 100 Amp TF-frame circuit breaker with a 14kA interrupting rating at 480VAC. It is commonly used in panelboards, switchboards, distribution equipment, and other compatible electrical assemblies where maintaining the original equipment configuration is important. This breaker is intended as a form, fit, and functional replacement for compatible legacy systems requiring these electrical ratings.
