TF136090 - 90Amp Circuit Breaker

TF136090 - 90 Amp Circuit Breaker

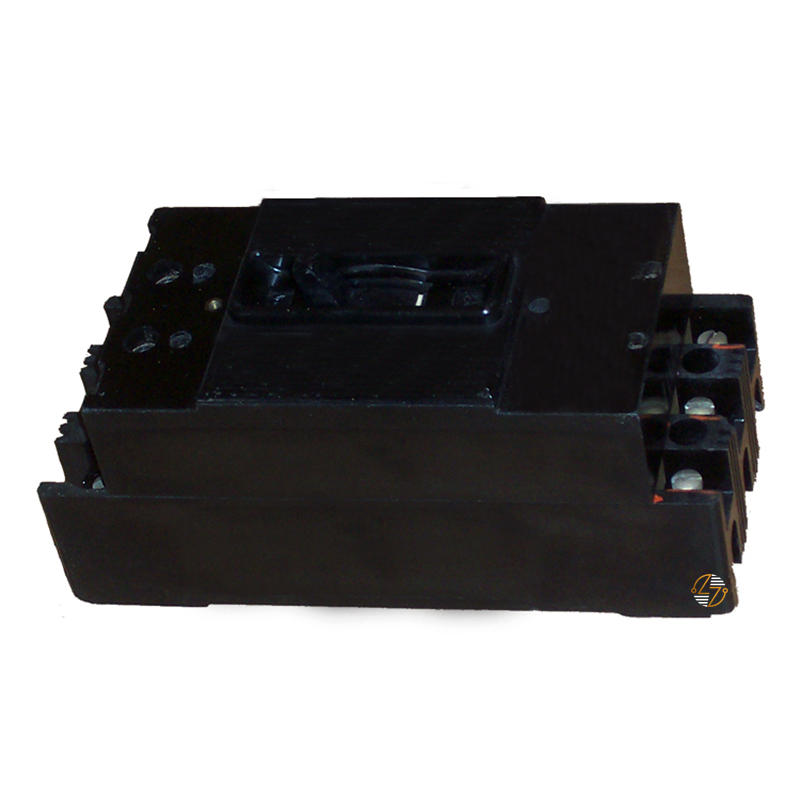

The TF136090 is a 3-pole, 90-amp TF-frame circuit breaker rated for 14kA at 480VAC. It's intended for use in your compatible electrical distribution equipment where the original specifications call for a TF-frame breaker with these ratings. Matching the correct frame type, amp rating, interrupting capacity, and pole configuration is essential when maintaining or servicing an existing electrical system, and the TF136090 provides that compatibility. Built to last, this breaker is well suited for keeping existing equipment operating as designed while helping you protect circuits against overloads and short circuits.

Key Features and Benefits

• TF-frame circuit breaker: TF-frame circuit breaker.
• 90 Amp current rating: 90 Amp current rating.
• Three-pole design: Three-pole design for three-phase applications.
• 14kA interrupting rating: 14kA interrupting rating at 480VAC.
• Form, Fit, and Functional Replacement: Form, fit, and functional replacement for compatible TF-frame installations.
• Circuit Protection: Helps protect electrical circuits from overloads and short-circuit conditions.
• Built to Last: Built to last in compatible electrical systems.


Technical Specifications

• Part Number: TF136090

• Frame Type: TF

• Product Type: Circuit Breaker

• Poles: 3

• Amperage: 90 Amps

• Voltage Rating: 480VAC

• Interrupting Rating: 14kA @ 480VAC

• Dimensions:
  • Height: 9.38 in.
  • Width: 4.13 in.
  • Depth: 4.00 in.

Material Compliance and Certifications

• Material Compliance: Material compliance and product certifications may vary depending on the manufacturing date and production run.
• Verification: Verify all applicable requirements for your installation before placing the breaker into service.


Where It Works Best

• The TF136090 is commonly used in commercial and industrial electrical distribution equipment designed for TF-frame circuit breakers. It is a suitable choice when the application requires a 3-pole, 90-amp breaker with a 14kA interrupting rating at 480VAC and matching physical dimensions for a compatible installation.
