TF124030 - 30Amp Circuit Breaker

TF124030 - 30Amp Circuit Breaker

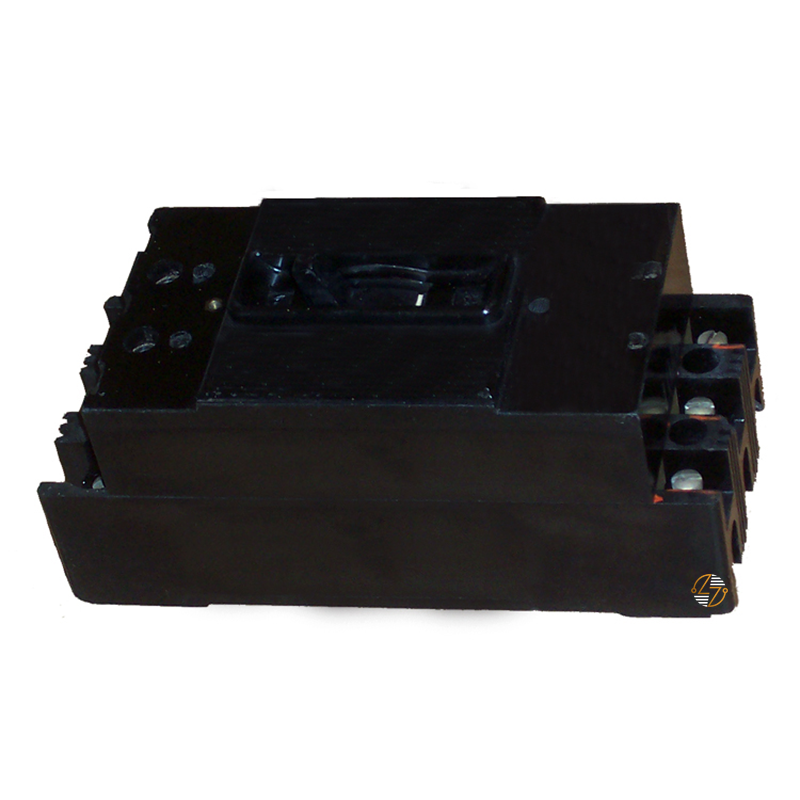

The TF124030 TF-Frame Circuit Breaker is a 2-pole, 30-amp circuit breaker designed for use in your electrical distribution systems requiring dependable overcurrent protection. Rated for 14kA interrupting capacity at 480VAC, this breaker is built to provide the proper form, fit, and function when maintaining or servicing compatible TF-frame electrical equipment. Its compact design and standardized dimensions help you simplify installation in applications where matching the original equipment specifications is important. Built to last, the TF124030 is well-suited for commercial and industrial electrical systems that require a properly rated replacement circuit breaker to protect conductors and connected equipment from overloads and short circuits.

Key Features and Benefits

• TF-Frame Circuit Breaker: Designed for compatible electrical distribution equipment.
• 30-Amp Current Rating: Provides branch circuit protection.
• 2-Pole Configuration: Suitable for applications requiring two protected conductors.
• 14kA Interrupting Capacity: Rated at 14kA interrupting capacity at 480VAC.
• Built to Last: Well-suited for long-term service in compatible installations.
• Proper Form, Fit, and Function: Designed to provide proper form, fit, and functional replacement where applicable.
• Compact Footprint: Simplifies installation in compatible panels and switchgear.

Technical Specifications

• Part Number: TF124030
• Frame Type: TF
• Product Type: Circuit Breaker
• Poles: 2
• Current Rating: 30 Amps
• Interrupting Rating: 14kA @ 480VAC
• Voltage Rating: 480VAC
• Dimensions:
  • Height: 9.38 in.
  • Width: 4.13 in.
  • Depth: 4.00 in.

Material Compliance and Certifications

• Application Notice: The TF124030 is manufactured for use in compatible electrical power distribution systems. Always verify that the circuit breaker's electrical ratings, frame type, and physical dimensions match the equipment manufacturer's requirements before installation.
• Installation: Installation and maintenance should be performed in accordance with applicable electrical codes and by qualified personnel.

Where It Works Best

• The TF124030 is commonly used in commercial, industrial, and institutional electrical distribution systems that utilize compatible TF-frame circuit breakers. It is an appropriate choice for maintaining existing electrical equipment where matching the original breaker's frame style, pole configuration, amperage, and interrupting rating is essential for proper application.
