TEYL3050B - 50A Circuit Breaker

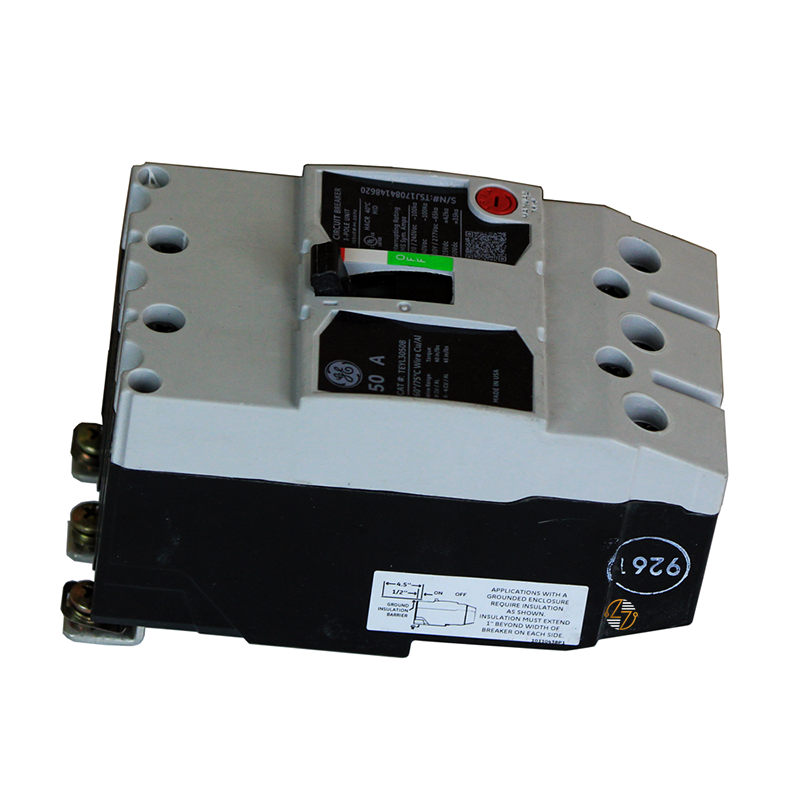

TEYL3050B 50A Circuit Breaker

Unlock the power of efficiency and reliability with the TEYL3050B - TEYX Circuit Breaker, your trusted solution for advanced electrical management. Designed for durability and high performance, this three-pole, 50 amp circuit breaker is engineered to protect electrical systems from overload and short circuits, ensuring operational safety and continuity.

Key Features and Benefits:

• Compact Design: One-inch wide per pole, ideal for tight spaces in commercial and industrial environments.
• Bolt-On Installation: Easy and secure bolt-on mounting increases connection stability and simplifies installation.
• Quick-Make/Quick-Break Mechanism: Minimizes response time, enhancing safety by rapidly disconnecting power.
• Common Trip Bars: Provides simultaneous tripping of all poles in the event of an overload, protecting circuits effectively.
• Clear Trip Indication: Visual trip indicator avoids guesswork and simplifies troubleshooting.

Technical Specifications:

• Amperage: 50A
• System Voltage Compatibility: Supports systems up to 480/277 Vac, making it versatile for a range of applications.
• High Interrupting Ratings: Up to 100 KAIC at 240 Vac and 65 KAIC at 480/277 Vac, providing superior protection against high fault currents.
• Wire Range: Accommodates #10-#4 AWG size, copper or aluminum wires, allowing flexible installation options.

Material Compliance and Certifications:

• UL Certified: Meets stringent UL File #E11592 standards for safety and reliability.

Suitability:

• Versatile Application Use: Ideal for lighting panels and can be adapted with auxiliary contacts, shunt trips, undervoltage releases, or bell alarms for specialized needs.
• Fixed Trip Setting: Fixed long-time and instantaneous trip functions ensure consistent operation.

Enhance your electrical safety and system reliability with the TEYL3050B - TEYX Circuit Breaker, designed for those who demand precision and durability. Perfect for both new installations and upgrades, this circuit breaker is the cornerstone of a robust electrical system.
