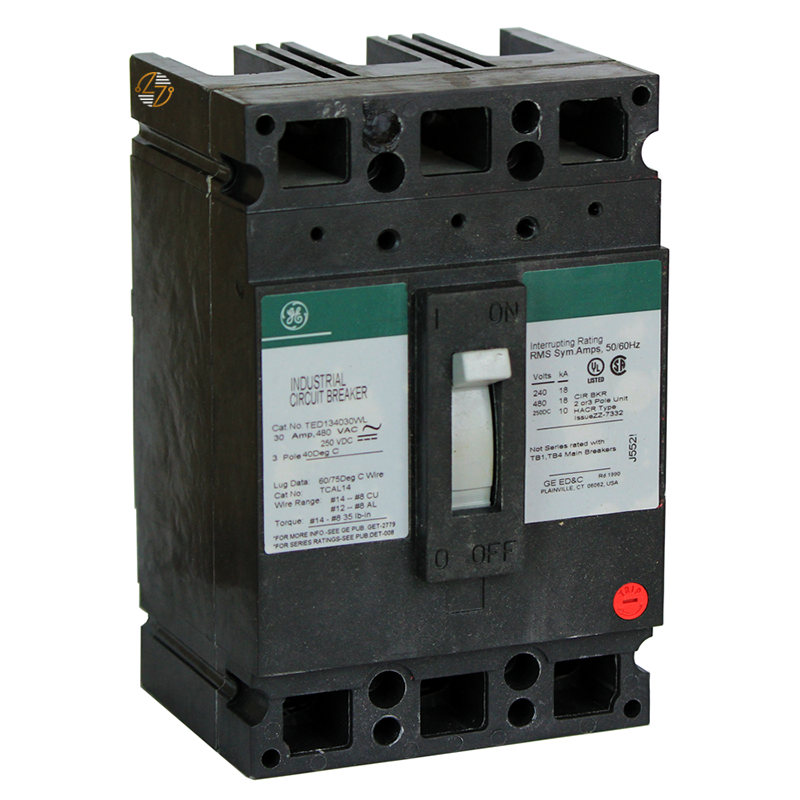

TED134070WL - 70Amp Circuit Breaker

TED134070WL - 70Amp Circuit Breaker

The TED134070WL is a 3-pole, 70-amp molded case industrial circuit breaker designed for use in your electrical distribution systems requiring dependable overcurrent and short-circuit protection. Built with a non-interchangeable thermal magnetic trip unit, this breaker delivers both thermal protection against overloads and magnetic protection for short-circuit events in a single, factory-configured assembly. It is rated for 18kA interrupting capacity at both 240VAC and 480VAC, making it suitable for a wide range of commercial and industrial power distribution applications. The breaker includes line- and load-side lugs, helping simplify installation while maintaining proper conductor connections. Designed for compatibility with equipment that utilizes the TED breaker type, the TED134070WL is intended as a form, fit, and functional replacement for maintaining existing electrical systems. Built to last, it provides the ratings and configuration needed to help you keep legacy power distribution equipment operating as intended. This description is written with an emphasis on accurate, original product information and user-focused content in line with current search quality and SEO best practices.

Key Features and Benefits

• 70-amp Continuous Current Rating: 70-amp continuous current rating.
• 3-pole Configuration: 3-pole configuration for three-phase electrical systems.
• Type TED Molded Case Industrial Circuit Breaker: Type TED molded case industrial circuit breaker.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit provides overload and short-circuit protection.
• 18kA Interrupting Rating: 18kA interrupting rating at 240VAC and 480VAC.
• Included Accessories: Includes both line-side and load-side lugs.
• Form, Fit, and Functional Replacement: Designed for form, fit, and functional replacement in compatible equipment.
• Commercial and Industrial Applications: Suitable for commercial and industrial electrical distribution applications.
• Built to Last: Built to last for long-term service in properly maintained electrical systems.

Technical Specifications

• Part Number: TED134070WL
• Type: TED
• Product Type: Molded Case Industrial Circuit Breaker
• Poles: 3
• Amperage: 70A
• Trip Unit: Non-Interchangeable Thermal Magnetic
• Interrupting Rating: 18kA @ 240VAC; 18kA @ 480VAC
• Included Accessories: Line- and Load-Side Lugs
• Dimensions:
  • Height: 6.31 in.
  • Width: 4.13 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Commercial and Industrial Use: Manufactured for use in commercial and industrial electrical distribution systems.
• Electrical Ratings: Designed to meet the electrical ratings associated with the TED product family.
• Installation Notice: Always verify compatibility, interrupting capacity, voltage rating, and applicable local electrical code requirements before installation.

Where It Works Best

• The TED134070WL is well suited for commercial buildings, industrial facilities, manufacturing environments, panelboards, switchboards, and other power distribution equipment that accepts TED-style 3-pole circuit breakers. It is commonly used where a 70-amp breaker with an 18kA interrupting rating is required to maintain existing electrical infrastructure while preserving the original form, fit, and function.
