GENERAL ELECTRIC
TED124100 - 100Amp Circuit Breaker
TED124100 - 100Amp Circuit Breaker
Couldn't load pickup availability
TED124100 - 100Amp Circuit Breaker

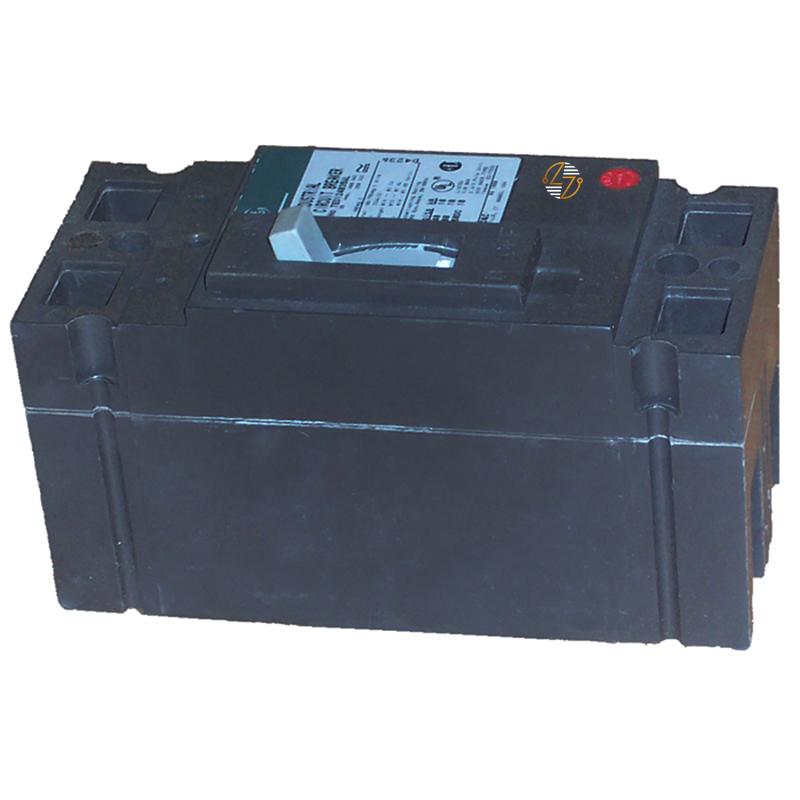

The ABB TED124100 is a 100A, 2-pole thermal-magnetic molded-case circuit breaker from ABB's E150 product family, designed to protect your circuits in compatible commercial and industrial electrical systems. With manufacturer-specified ratings of 480VAC and 250VDC, this TED-series breaker features an E150 frame, a 100A current rating, and an LI (Long-Time and Instantaneous) trip function. Its thermal-magnetic protection responds to sustained overloads and short-circuit conditions, helping protect electrical circuits within the breaker's approved application limits.
Key Features and Benefits
- 100-Amp Current Rating
- Two-Pole Circuit Breaker Configuration
- 480VAC and 250VDC Voltage Ratings
- Thermal-Magnetic Circuit Protection
- Long-Time and Instantaneous (LI) Trip Function
- ABB E150 Frame Construction
- TED-Series Circuit Breaker Design
- Suitable for Reverse Feed
- 60/75°C Conductor Temperature Rating
Technical Specifications
-
Manufacturer: ABB
-
Catalog Number: TED124100
-
Manufacturer Description: 2 POLE 480VAC 250VDC 100A BREAKER
-
Product Type: Molded-Case Circuit Breaker
-
Breaker Category: Thermal Magnetic
-
Product Series: TED
-
Product Family: E150
-
Frame Type: E150
-
Number of Poles: 2
-
Rated Current: 100 Amps
-
AC Voltage Rating: 480VAC
-
DC Voltage Rating: 250VDC
-
Trip Function: LI (Long-Time and Instantaneous)
-
Reverse-Feed Suitability: Yes, as specified for ABB TED-series breakers
-
Conductor Temperature Rating: 60/75°C, based on ABB's rating for breakers through 100 amps
-
GSA Compliance: No
-
Environmental Product Declaration Status: No Declaration Needed
-
GO Schedule: EB
-
UPC: 783164068207
Material Compliance and Certifications
Confirm applicable certifications and equipment approvals separately using the product's markings and supporting manufacturer documentation.
- GSA Compliance: No
- Environmental Product Declaration: No Declaration Needed
Where It Works Best
- Existing Commercial Electrical Systems
- Industrial Electrical Maintenance
- Legacy Electrical Equipment
- Matching Circuit Breaker Replacements
- Compatible 480VAC Electrical Applications
- Compatible 250VDC Electrical Applications
- Two-Pole Circuit Protection
- ABB E150 Frame Applications
- Reverse-Feed Electrical Arrangements
- Facility Maintenance and Electrical Repairs
- Existing Electrical Distribution Equipment
- Electrical System Restoration
- Form, Fit, and Functional Replacement Projects
