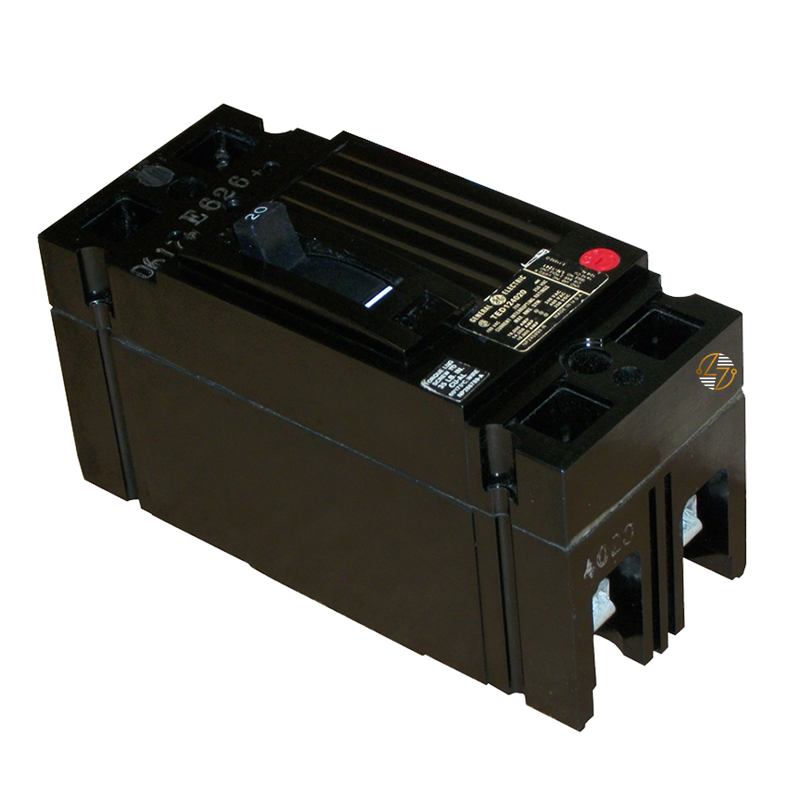

TED124090WL **Older Style** - 90Amp Circuit Breaker
TED124090WL **Older Style** - 90Amp Circuit Breaker
Couldn't load pickup availability
TED124090WL **Older Style** - 90Amp Circuit Breaker
When you're replacing a circuit breaker in an existing electrical system, getting the specifications right matters. Amperage is only part of the equation. Pole count, interrupting capacity, physical dimensions, trip mechanism, and terminal connections all affect compatibility. The ABB TED124090WL Black Face Circuit Breaker is a 90-amp, 2-pole molded-case industrial circuit breaker designed for applications that require the TED series' established electrical and mechanical characteristics. Equipped with a non-interchangeable thermal-magnetic trip unit, it provides overload and short-circuit protection for compatible industrial and commercial electrical equipment.
Key Features and Benefits
- 90-Amp, 2-Pole Configuration:
- 18 kAIC Interrupting Rating:
- Thermal-Magnetic Trip Protection:
- Non-Interchangeable Trip Unit:
- Line and Load-Side Lugs Included:
- Black-Face TED Series Design:
- Form, Fit, and Function Replacement:
Technical Specifications
-
Manufacturer: ABB
-
Catalog Number: TED124090WL
-
Product Type: Molded-Case Industrial Circuit Breaker
-
Series / Type: TED
-
Face Color: Black
-
Amperage: 90 Amps
-
Number of Poles: 2
-
Interrupting Capacity at 480VAC: 18 kAIC
-
Interrupting Capacity at 240VAC: 18 kAIC
-
Trip Mechanism: Thermal-Magnetic
-
Trip Unit: Non-Interchangeable
-
Lug Configuration: Line and Load-Side Lugs Included
-
Height: 6.31 inches
-
Width: 2.75 inches
-
Depth: 3.38 inches
-
Dimensions (W × H × D): 2.75 × 6.31 × 3.38 inches
-
Approximate Shipping Weight: 4.50 lbs
Material Compliance and Certifications
The ABB TED124090WL Black Face Circuit Breaker features molded-case construction and a non-interchangeable thermal-magnetic trip unit. Its specified interrupting capacities are 18 kAIC at 480VAC and 18 kAIC at 240VAC. These values describe the breaker's fault-current interruption capability at the stated voltages and should not be interpreted as separate nominal operating voltage ratings.
The available product specifications do not include specific material composition, UL or CSA listing information, RoHS compliance, or other regulatory certifications. If your application requires particular certifications or material compliance documentation, verify the applicable product markings and ABB manufacturer documentation before installation. The stated electrical ratings alone do not establish compliance with every applicable industry standard.
Where It Works Best
- Legacy Electrical System Maintenance:
- Industrial Electrical Equipment:
- Commercial Electrical Systems:
- Black-Face TED Breaker Replacement:
- Scheduled Electrical Repairs:
