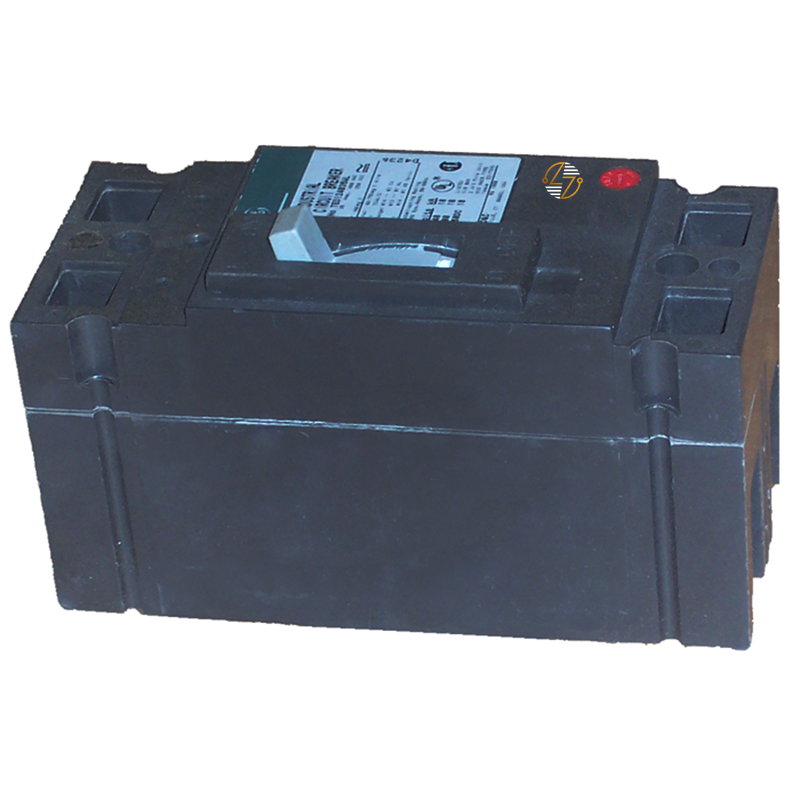

TED124090WL - 90Amp Circuit Breaker

TED124090WL - 90Amp Circuit Breaker

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

TED124090WL - 90Amp Circuit Breaker

The ABB TED124090WL is a 90-amp, 2-pole thermal-magnetic molded-case circuit breaker from ABB's E150 product family, designed for electrical systems that require specific circuit protection characteristics and a compatible breaker configuration.

The TED124090WL uses thermal-magnetic protection with an LI (Long-Time and Instantaneous) trip function. Its long-time and instantaneous settings are fixed, and the breaker has a non-interchangeable trip style. ABB also identifies this model as suitable for reverse-feed applications, subject to equipment and installation requirements. For electricians, facility managers, and industrial maintenance teams, these manufacturer-defined characteristics provide useful information when evaluating a replacement breaker for your existing system.

Key Features and Benefits

  • 90-Amp Current Rating
  • 2-Pole Circuit Breaker Configuration
  • 480VAC and 250VDC Voltage Ratings
  • Thermal-Magnetic Circuit Protection
  • Fixed Long-Time and Instantaneous (LI) Trip Function
  • ABB E150 Frame
  • Included Copper/Aluminum Line and Load Lugs
  • Non-Interchangeable Trip Style
  • Suitable for Reverse Feed

Technical Specifications

  • Manufacturer: ABB
  • Catalog Number: TED124090WL
  • Manufacturer Description: 2 POLE 480VAC 250VDC 90A BREAKER
  • Product Type: Molded-Case Circuit Breaker
  • Breaker Category: Thermal Magnetic
  • Product Line: Thermal Magnetic
  • Product Family: E150
  • Product Series: TED
  • Frame Type: E150
  • Number of Poles: 2
  • Rated Current: 90 Amps
  • Trip Style: Non-Interchangeable
  • Trip Function: LI (Long-Time and Instantaneous)
  • Long-Time Trip Setting: Fixed
  • Instantaneous Trip Setting: Fixed
  • Continuous Current Rating Classification: Standard
  • System Voltage Ratings: 120VAC, 120/240VAC, 125VDC, 240VAC, 250VDC, 277VAC, and 480VAC
  • 120VAC Interrupting Rating: 18 kAIC
  • 120/240VAC Interrupting Rating: 18 kAIC
  • 125VDC Interrupting Rating: 10 kAIC
  • 240VAC Interrupting Rating: 18 kAIC
  • 250VDC Interrupting Rating: 10 kAIC
  • 277VAC Interrupting Rating: 18 kAIC
  • 480VAC Interrupting Rating: 18 kAIC
  • Reverse-Feed Suitability: Yes
  • Line and Load Lugs: Included Cu/Al lugs, as indicated by the WL suffix
  • Manufacturer-Listed Lug References: TC041, TCAL12A
  • Current Metering: No
  • Protective Relays: No
  • Special Markings: HACR
  • GO Schedule: EB
  • UPC: 783164068191
  • GSA Compliance: No
  • UL File Number: E11592
  • CSA File Number: LR57114
  • Environmental Product Declaration Status: No Declaration Needed

Material Compliance and Certifications

  • UL File Number: E11592, as identified in ABB's manufacturer classification data.
  • CSA File Number: LR57114, as identified in ABB's manufacturer classification data.
  • HACR Special Marking: ABB lists HACR under the breaker's special markings.
  • GSA Compliance: No, according to the manufacturer's specifications.
  • Environmental Product Declaration: No Declaration Needed, per ABB.

Where It Works Best

  • Existing Commercial Electrical Distribution Systems
  • Industrial Electrical Maintenance
  • Legacy Electrical Installations
  • 480VAC Electrical Applications
  • 250VDC Electrical Applications
  • Two-Pole Circuit Protection
  • Reverse-Feed Configurations
  • HACR-Marked Circuit Breaker Applications
  • ABB E150 Frame Equipment
  • Facility Maintenance and Repairs
  • Electrical Equipment Restoration
