TED124090 - 90Amp Circuit Breaker
TED124090 - 90Amp Circuit Breaker
Couldn't load pickup availability

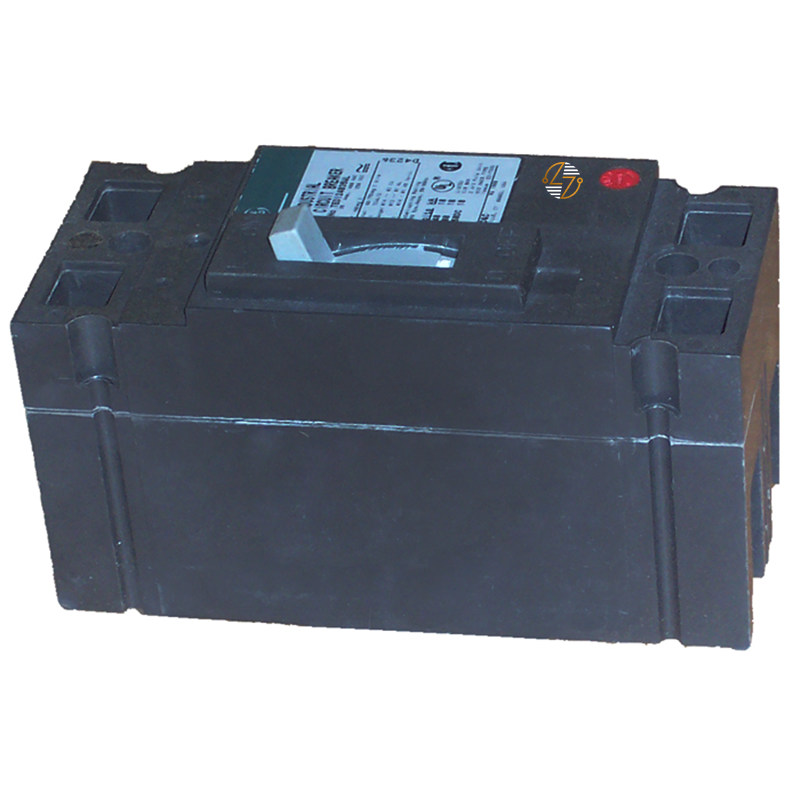

TED124090 - 90Amp Circuit Breaker
The ABB TED124090 is a 90-amp, 2-pole thermal-magnetic molded-case circuit breaker from ABB's E150 product family, designed for your electrical systems requiring a 480VAC or 250VDC circuit breaker with the specified electrical ratings and configuration. Built around the E150 frame, this TED-series breaker features an LI (Long-Time and Instantaneous) trip function that combines thermal overload protection with magnetic short-circuit protection. For electricians and maintenance professionals working with established electrical equipment, the TED124090 provides a clearly identified breaker configuration that can be evaluated for form, fit, and functional replacement in compatible installations.
Key Features and Benefits
- 90-Amp Current Rating
- 2-Pole Circuit Breaker Configuration
- 480VAC and 250VDC Voltage Ratings
- Thermal-Magnetic Circuit Protection
- Long-Time and Instantaneous (LI) Trip Function
- ABB E150 Frame
- TED Series Circuit Breaker Design
- Suitable for Reverse Feed
- 60/75°C Temperature Rating
Technical Specifications
-
Manufacturer: ABB
-
Catalog Number: TED124090
-
Manufacturer Description: 2 POLE 480VAC 250VDC 90A BREAKER
-
Product Type: Molded-Case Circuit Breaker
-
Breaker Category: Thermal Magnetic
-
Product Series: TED
-
Product Family: E150
-
Frame Type: E150
-
Number of Poles: 2
-
Rated Current: 90 Amps
-
AC Voltage Rating: 480VAC
-
DC Voltage Rating: 250VDC
-
Trip Function: LI (Long-Time and Instantaneous)
-
Trip Technology: Thermal-Magnetic
-
Reverse-Feed Suitability: Yes, as specified for ABB TED breakers
-
Temperature Rating: 60/75°C
-
GO Schedule: EB
-
UPC: 783164068184
-
GSA Compliance: No
-
Environmental Product Declaration Status: No Declaration Needed
Material Compliance and Certifications
The manufacturer identifies the ABB TED124090 thermal-magnetic circuit breaker with specific electrical characteristics and product classifications.
- ABB Manufacturer Specifications: Identified as a 90A, 2-pole, 480VAC/250VDC thermal-magnetic circuit breaker.
- GSA Compliance: No, according to the manufacturer listing.
- Environmental Product Declaration: Listed as No Declaration Needed.
Where It Works Best
- Existing Commercial Electrical Distribution Systems
- Industrial Electrical Maintenance
- Legacy Electrical Installations
- Circuit Breaker Replacement Projects
- 480VAC Electrical Applications
- 250VDC Electrical Applications
- Two-Pole Circuit Protection
- Reverse-Feed Configurations
- E150 Frame Circuit Breaker Applications
- Facility Maintenance and Repairs
- Electrical Equipment Restoration
