GENERAL ELECTRIC

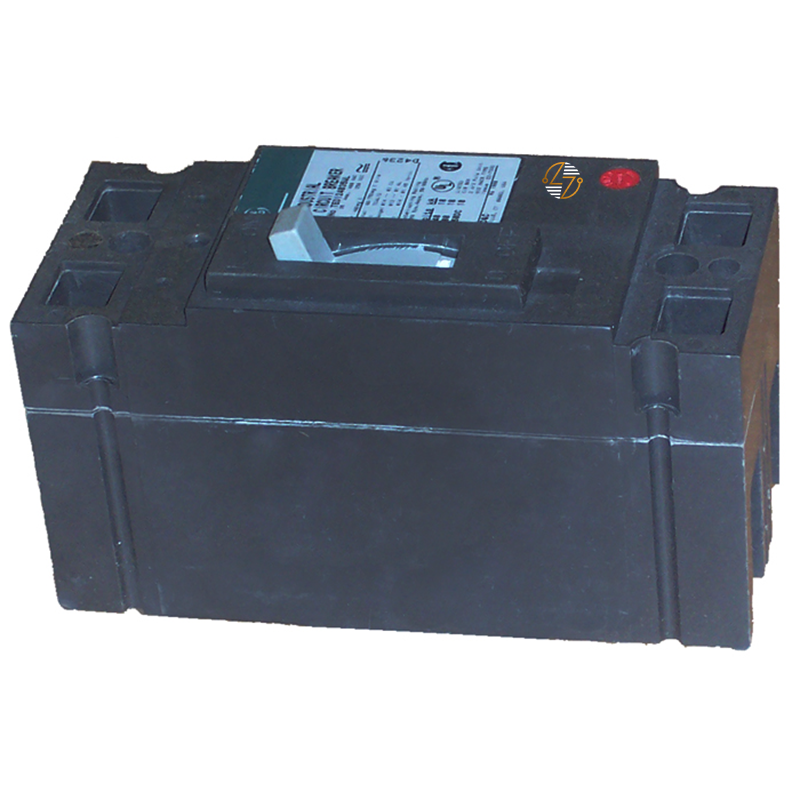

TED124070 - 70Amp Circuit Breaker

TED124070 - 70Amp Circuit Breaker

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

TED124070 - 70Amp Circuit Breaker

The ABB TED124070 is a 70-amp, 2-pole thermal-magnetic molded-case circuit breaker from ABB's E150 product family, designed to protect circuits in compatible commercial and industrial electrical systems. Whether you're maintaining an established electrical distribution system or replacing a matching breaker in older equipment, the TED124070 provides a manufacturer-defined configuration that helps preserve the original installation's form, fit, and function.

Key Features and Benefits

  • 70-Amp Current Rating
  • Two-Pole Circuit Breaker Configuration
  • 480VAC and 250VDC Voltage Ratings
  • Thermal-Magnetic Circuit Protection
  • Long-Time and Instantaneous (LI) Trip Function
  • ABB E150 Frame Construction

Technical Specifications

  • Manufacturer: ABB
  • Catalog Number: TED124070
  • Manufacturer Description: 2 POLE 480VAC 250VDC 70A BREAKER
  • Product Type: Molded-Case Circuit Breaker
  • Breaker Category: Thermal Magnetic
  • Product Series: TED
  • Frame Type: E150
  • Number of Poles: 2
  • Rated Current: 70 Amps
  • AC Voltage Rating: 480VAC
  • DC Voltage Rating: 250VDC
  • Trip Function: LI (Long-Time and Instantaneous)
  • Reverse-Feed Suitability: Yes, as specified for ABB TED-series breakers
  • Conductor Temperature Rating: 60/75°C, according to ABB's rating for breakers through 100 amps
  • GSA Compliance: No
  • Environmental Product Declaration Status: No Declaration Needed
  • GO Schedule: EB
  • UPC: 783164068146

Material Compliance and Certifications

The ABB TED124070 uses manufacturer-provided electrical ratings and product classifications to help maintenance professionals assess compatibility with existing installations.

  • GSA Compliance: No
  • Environmental Product Declaration: No Declaration Needed

Where It Works Best

  • Existing Commercial Electrical Systems
  • Industrial Electrical Maintenance
  • Legacy Electrical Equipment
  • Matching Circuit Breaker Replacements
  • Compatible 480VAC Electrical Applications
  • Compatible 250VDC Electrical Applications
  • Two-Pole Circuit Protection
  • E150 Frame Circuit Breaker Applications
  • Reverse-Feed Electrical Arrangements
  • Facility Maintenance and Electrical Repairs
  • Electrical Distribution Equipment Restoration
  • Form, Fit, and Functional Replacement Projects
