TED124040WL - 40Amp Circuit Breaker
TED124040WL - 40Amp Circuit Breaker
Couldn't load pickup availability
TED124040WL - 40Amp Circuit Breaker

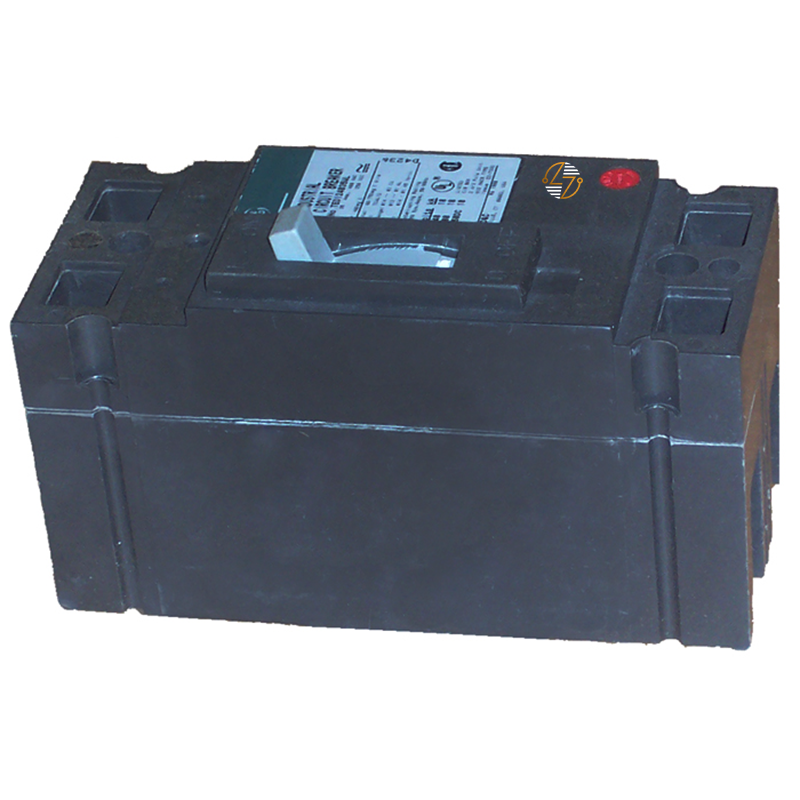

The ABB TED124040WL circuit breaker is a 40-amp, two-pole, thermal-magnetic molded-case circuit breaker from ABB's E150 product family. It features fixed long-time and instantaneous trip functions, a non-interchangeable trip design, and copper/aluminum line and load lugs. Whether you're maintaining an established commercial electrical system, repairing industrial equipment, or matching an existing circuit breaker, the TED124040WL 40A breaker provides clearly documented specifications to help determine compatibility.
Key Features and Benefits
- 40-Amp Current Rating
- Two-Pole Circuit Breaker Configuration
- Thermal-Magnetic Trip Protection
- Fixed Long-Time and Instantaneous Trip Functions
- Included Copper/Aluminum Line and Load Lugs
- ABB E150 Frame Construction
- Non-Interchangeable Trip Design
- Suitable for Reverse Feed
- HACR Marking
- Standard Continuous Current Rating
Technical Specifications
-
Manufacturer: ABB
-
Catalog Number: TED124040WL
-
Manufacturer Description: TED CIRCUIT BREAKER
-
Product Type: Molded-case circuit breaker
-
Product Category: Thermal Magnetic
-
Series / Product Family: TED / E150
-
Frame Type: E150
-
Rated Current: 40 amperes (40A)
-
Number of Poles: 2
-
AC System Voltage Ratings: 120VAC, 120/240VAC, 240VAC, 277VAC, 480VAC
-
DC System Voltage Ratings: 125VDC, 250VDC
-
120VAC Interrupting Rating: 18 kAIC
-
120/240VAC Interrupting Rating: 18 kAIC
-
240VAC Interrupting Rating: 18 kAIC
-
277VAC Interrupting Rating: 18 kAIC
-
480VAC Interrupting Rating: 18 kAIC
-
125VDC Interrupting Rating: 10 kAIC
-
250VDC Interrupting Rating: 10 kAIC
-
Trip Style: Non-Interchangeable
-
Trip Function: LI — Long-Time and Instantaneous
-
Long-Time Trip Setting: Fixed
-
Instantaneous Trip Setting: Fixed
-
Overload Protection: Thermal
-
Short-Circuit Trip Function: Magnetic
-
Continuous Current Rating: Standard
-
Suitable for Reverse Feed: Yes
-
Line and Load Lugs: Copper/Aluminum (Cu/Al), included with WL suffix
-
Manufacturer-Listed Lug Designations: TC041, TCAL12, TCAL14
-
Special Markings: HACR
-
Current Metering: No
-
Protective Relays: No
-
UL File Number: E11592
-
CSA File Number: LR57114
-
UPC: 783164068078
-
GO Schedule: EB
-
GSA Compliance: Yes
-
Environmental Product Declaration Status: No Declaration Needed
Material Compliance and Certifications
ABB's published product information for the TED124040WL identifies the following classifications, compliance details, and manufacturer designations:
- UL File Number E11592: ABB lists this UL file number for the TED124040WL, providing a reference for verifying applicable product certification information.
- CSA File Number LR57114
- GSA Compliance: ABB specifies GSA compliance as Yes for this catalog number.
- HACR Marking
Where It Works Best
- Existing Commercial Electrical Distribution Systems
- Industrial Equipment Maintenance and Repairs
- Legacy Electrical Installations
- Matching 40-Amp Circuit Breaker Replacements
- Compatible ABB E150 Frame Applications
- 480VAC Electrical Systems
- 240VAC and 120/240VAC Applications
- 125VDC and 250VDC Applications
- Heating, Air-Conditioning, and Refrigeration Equipment
- Reverse-Feed Electrical Configurations
- Facility Maintenance and Electrical Restoration
