GENERAL ELECTRIC

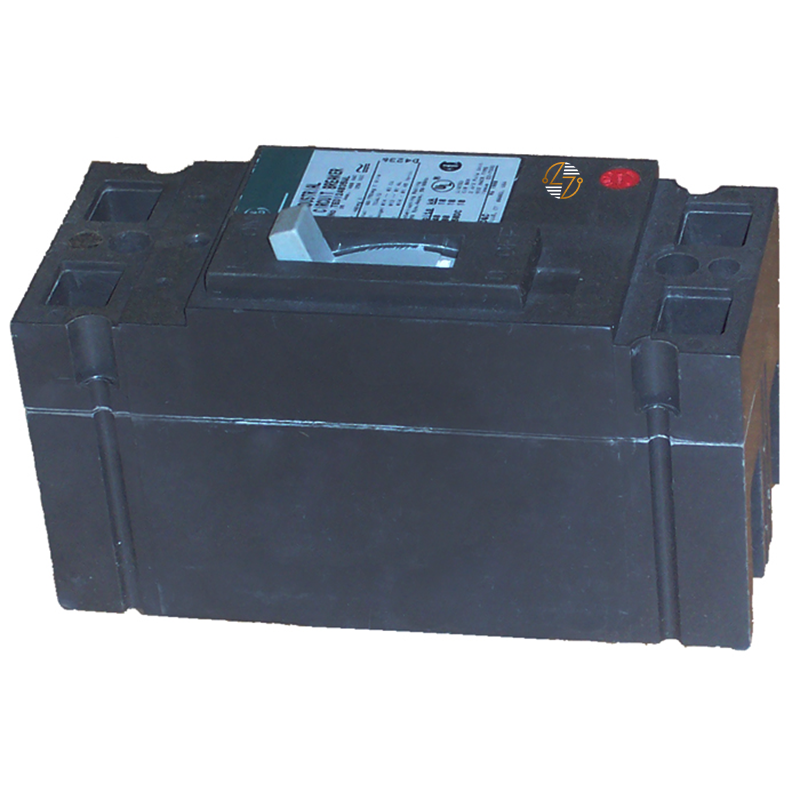

TED124040 - 40Amp Circuit Breaker

TED124040 - 40Amp Circuit Breaker

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

TED124040 - 40Amp Circuit Breaker

The ABB TED124040 is a 40-amp, 2-pole thermal-magnetic circuit breaker from ABB's E150 product family, designed to protect circuits in electrical systems rated for 480VAC and 250VDC. Whether you're maintaining an existing electrical distribution system, replacing a matching breaker, or sourcing components for equipment repairs, the TED124040 provides the manufacturer-defined ratings and configuration needed for a precise replacement. Its thermal-magnetic protection combines a long-time response to sustained overcurrent conditions with an instantaneous response to higher fault currents, helping protect connected circuits when properly selected and installed.

Key Features and Benefits

  • 40-Amp Current Rating
  • 2-Pole Circuit Breaker Configuration
  • 480VAC and 250VDC Voltage Ratings
  • Thermal-Magnetic Circuit Protection
  • Long-Time and Instantaneous (LI) Trip Function
  • ABB E150 Frame
  • Suitable for Reverse Feed
  • 60/75°C Temperature Rating
  • Manufacturer-Identified Catalog Number
  • Form, Fit, and Functional Replacement Considerations
  • Established E150 Product Family
  • Built to Last

Technical Specifications

  • Manufacturer: ABB
  • Catalog Number: TED124040
  • Product Description: 2 Pole 480VAC 250VDC 40A Breaker
  • Product Type: Circuit Breaker
  • Breaker Category: Thermal Magnetic
  • Product Family: E150
  • Frame Type: E150
  • Number of Poles: 2
  • Rated Current: 40 Amps
  • AC Voltage Rating: 480VAC
  • DC Voltage Rating: 250VDC
  • Trip Function: LI (Long-Time and Instantaneous)
  • Trip Technology: Thermal-Magnetic
  • Reverse-Feed Suitability: Yes, as specified by ABB for TED breakers
  • Temperature Rating: 60/75°C
  • GO Schedule: EB
  • UPC: 783164068061
  • GSA Compliance: No
  • Environmental Product Declaration Status: No Declaration Needed

Material Compliance and Certifications

  • ABB Manufacturer Specifications: ABB identifies it as a 40A, 2-pole, E150-frame thermal-magnetic circuit breaker with a 480VAC/250VDC rating.
  • GSA Compliance: The manufacturer lists this as "No" in the product information.
  • Environmental Product Declaration: ABB lists the status as "No Declaration Needed."
  • 60/75°C Temperature Classification: ABB specifies a 60/75°C rating for E150 breakers through 100A, including this 40A model.
  • Copper/Aluminum Lug Identification: ABB uses the WL catalog suffix to identify devices supplied with Cu/Al line and load lugs. Because TED124040 does not carry that suffix, included lugs should not be assumed.

Where It Works Best

  • Existing Commercial Electrical Distribution Systems
  • Industrial Electrical Maintenance
  • Legacy Electrical Installations
  • Circuit Breaker Replacement Projects
  • 480VAC Electrical Applications
  • 250VDC Electrical Applications
  • Two-Pole Circuit Protection
  • Reverse-Feed Configurations
  • Facility Maintenance and Repairs
  • Electrical Equipment Restoration
