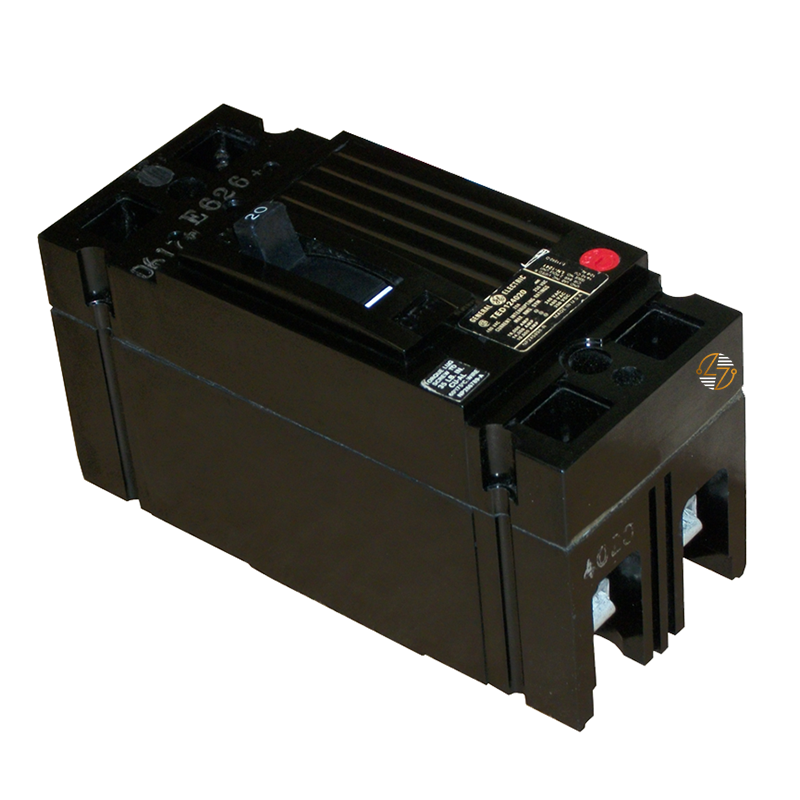

TED124030WL **Older Style** - 30Amp Circuit Breaker
TED124030WL **Older Style** - 30Amp Circuit Breaker
Couldn't load pickup availability
TED124030WL **Older Style** - 30Amp Circuit Breaker
When you're replacing a circuit breaker in an existing electrical system, getting the specifications right is essential. The ABB TED124030WL Black Face Circuit Breaker is a 30-amp, 2-pole molded-case industrial circuit breaker designed for applications that require the TED series' established electrical ratings, physical dimensions, and connection arrangement. Featuring a non-interchangeable thermal-magnetic trip unit, this breaker provides overload and short-circuit protection for compatible industrial and commercial electrical equipment.
Key Features and Benefits
- 30-Amp, 2-Pole Configuration
- 18 kAIC Interrupting Rating
- Thermal-Magnetic Trip Protection
- Non-Interchangeable Trip Unit
- Line- and Load-Side Lugs Included
- Black-Face TED Series Design
- Form, Fit, and Function Replacement
Technical Specifications
-
Manufacturer: ABB
-
Catalog Number: TED124030WL
-
Product Type: Molded-Case Industrial Circuit Breaker
-
Series / Type: TED
-
Face Color: Black
-
Amperage: 30 Amps
-
Number of Poles: 2
-
Interrupting Capacity at 480VAC: 18 kAIC
-
Interrupting Capacity at 240VAC: 18 kAIC
-
Trip Mechanism: Thermal-Magnetic
-
Trip Unit: Non-Interchangeable
-
Lug Configuration: Line- and Load-Side Lugs Included
-
Height: 6.31 inches
-
Width: 2.75 inches
-
Depth: 3.38 inches
-
Dimensions (W × H × D): 2.75 × 6.31 × 3.38 inches
-
Approximate Shipping Weight: 4.50 lbs
Material Compliance and Certifications
The ABB TED124030WL Black Face Circuit Breaker features molded-case construction and a non-interchangeable thermal-magnetic trip unit. Its specified interrupting capacities are 18 kAIC at 480 VAC and 18 kAIC at 240 VAC.
The available product specifications do not include specific material composition, UL or CSA listing information, RoHS compliance, or other regulatory certifications. Where certification or material compliance documentation is required, verify the applicable product markings and ABB manufacturer documentation before installation.
Where It Works Best
- Legacy Electrical System Maintenance
- Industrial Electrical Equipment
- Commercial Electrical Systems
- Black-Face TED Breaker Replacement
- Scheduled Electrical Repairs
