TED124030 - 30Amp Circuit Breaker
TED124030 - 30Amp Circuit Breaker
Couldn't load pickup availability
TED124030 - 30Amp Circuit Breaker

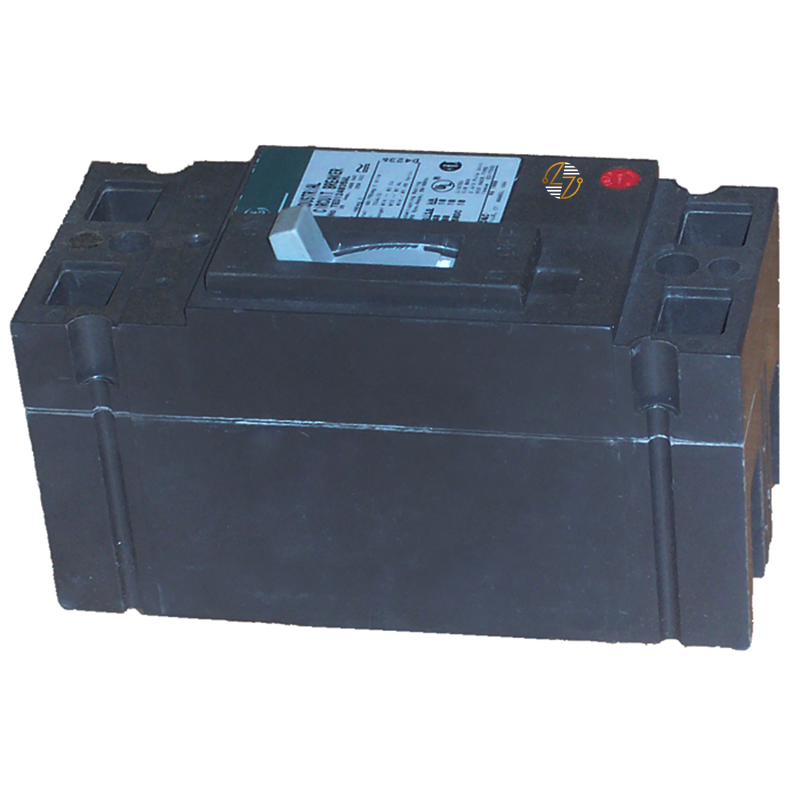

The ABB TED124030 circuit breaker is a 30-amp, 2-pole thermal-magnetic molded-case circuit breaker designed for overcurrent protection in compatible commercial and industrial electrical systems. Part of ABB's E150 product family, this TED-series breaker features a 480VAC and 250VDC voltage rating, an E150 frame, and long-time and instantaneous (LI) trip functions that help protect electrical circuits against overloads and short circuits. Whether you're replacing an existing breaker in a commercial electrical distribution system, servicing industrial equipment, or maintaining a legacy electrical installation, matching the correct amperage, pole configuration, frame type, and voltage ratings is essential.
Key Features and Benefits
- 30-Amp Current Rating
- 2-Pole Circuit Breaker Configuration
- Thermal-Magnetic Circuit Protection
- 480VAC and 250VDC Voltage Ratings
- ABB E150 Frame Design
- Long-Time and Instantaneous Trip Functions
- Suitable for Reverse Feed
- 60/75°C Terminal Temperature Rating
- Established TED-Series Configuration
- Designed for Form, Fit, and Functional Replacement
Technical Specifications
-
Manufacturer: ABB
-
Catalog Number: TED124030
-
Manufacturer Description: 2 POLE 480VAC 250VDC 30A BREAKER
-
Product Type: Molded-Case Circuit Breaker
-
Product Category: Thermal Magnetic
-
Series: TED
-
Product Family: E150
-
Frame Type: E150
-
Rated Current: 30 Amperes (30A)
-
Number of Poles: 2
-
AC Voltage Rating: 480VAC
-
DC Voltage Rating: 250VDC
-
Trip Function: LI — Long-Time and Instantaneous
-
Overcurrent Protection Type: Thermal Magnetic
-
Thermal Protection: Overload Protection
-
Magnetic Protection: Short-Circuit Protection
-
Reverse-Feed Suitability: Yes
-
Temperature Rating: 60/75°C, per the manufacturer's E150 rating for breakers through 100A
-
Frame Family Maximum Rating: 150A
-
E150 Product Family Maximum AC Voltage: 600VAC
-
Lug Configuration: Not specified in the provided manufacturer specifications
-
GO Schedule: EB
-
GSA Compliance: No
-
Environmental Product Declaration Status: No Declaration Needed
-
UPC: 783164068023
Material Compliance and Certifications
The ABB TED124030 belongs to the E150 thermal-magnetic molded-case circuit breaker family. Its manufacturer-published specifications identify the following electrical classifications and environmental information:
- Thermal-Magnetic Classification
- E150 Product Family
- 60/75°C Temperature Rating
- Environmental Product Declaration: ABB lists the environmental product declaration status as "No Declaration Needed."
- GSA Compliance: No, according to the manufacturer's published specifications.
Where It Works Best
- Existing Commercial Electrical Systems
- Industrial Electrical Equipment
- Legacy Electrical Installations
- Circuit Breaker Replacement Projects
- 480VAC Electrical Applications
- 250VDC Electrical Applications
- Facility Maintenance and Repairs
- Reverse-Feed Applications
- Electrical Distribution Equipment
- Equipment Restoration and Component Matching
