GENERAL ELECTRIC

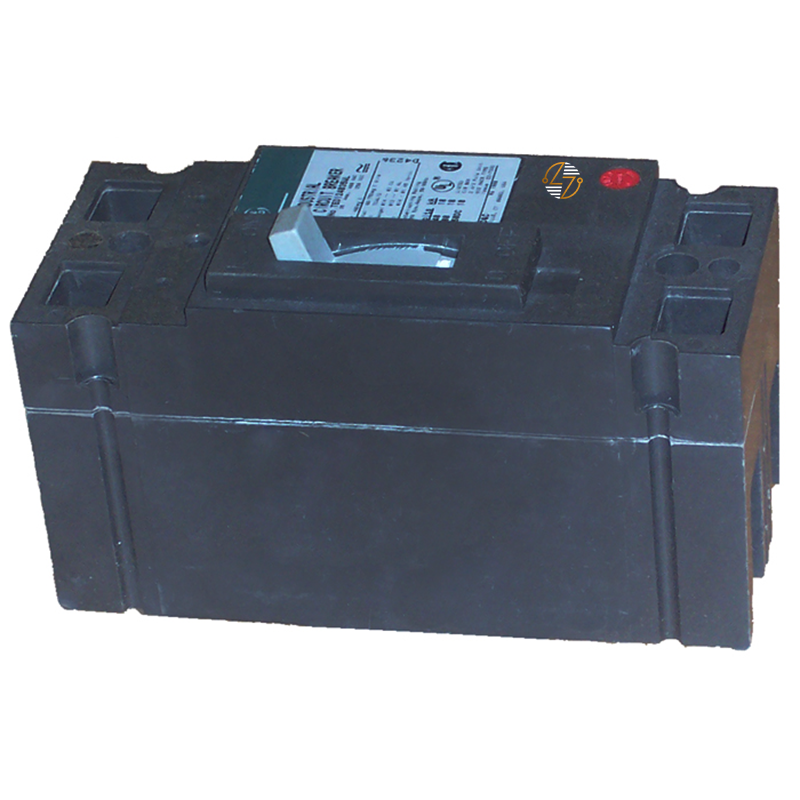

TED124025 - 25Amp Circuit Breaker

TED124025 - 25Amp Circuit Breaker

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

TED124025 - 25Amp Circuit Breaker

The ABB TED124025 circuit breaker is a 25-amp, two-pole, thermal-magnetic molded-case breaker from ABB's E150 product family. Rated for 480 volts AC and 250 volts DC, this TED-series breaker is designed for electrical applications requiring its specific combination of current rating, pole configuration, frame type, and trip characteristics. Whether you're maintaining an established commercial electrical system, repairing industrial equipment, or finding a matching breaker for an existing installation, the TED124025 provides clear specifications to work from.

Key Features and Benefits

  • 25-Amp Current Rating: The ABB TED124025 has a 25-ampere current rating, making it suitable for circuits and equipment designed to use a 25A protective device.
  • Two-Pole Circuit Breaker Configuration: With two poles, the TED124025 provides coordinated switching and protection across two circuit conductors in an appropriate electrical arrangement.
  • Thermal Magnetic Trip Protection: The TED124025 is classified as a thermal magnetic circuit breaker, using two complementary trip functions to respond to different overcurrent conditions.
  • ABB E150 Frame Construction. The TED124025 belongs to ABB's E150 molded-case circuit breaker family. The E150 frame designation is important when identifying breakers for existing electrical assemblies because frame characteristics can affect physical fit and installation requirements.
  • Suitable for Reverse Feed: ABB identifies TEB, TED, and THED circuit breakers as suitable for reverse feed. That manufacturer statement applies to the TED124025 as a member of the TED breaker family.

Technical Specifications

  • Manufacturer: ABB
  • Catalog Number: TED124025
  • Product Type: Molded-case circuit breaker
  • Product Category: Thermal Magnetic
  • Series / Product Family: TED / E150
  • Frame Type: E150
  • Rated Current: 25 amperes (25A)
  • Number of Poles: 2
  • AC Voltage Rating: 480VAC
  • DC Voltage Rating: 250VDC
  • Trip Function: LI — Long-Time and Instantaneous
  • Overload Protection: Thermal
  • Short-Circuit Trip Function: Magnetic
  • Reverse-Feed Suitability: Yes, based on ABB's TED-family designation
  • Terminal Temperature Rating: 60/75°C category for devices through 100A, subject to terminal and conductor requirements
  • UPC: 783164068009
  • GO Schedule: EB
  • GSA Compliance: No
  • Environmental Product Declaration Status: No Declaration Needed
  • Manufacturer Description: 2 POLE 480VAC 250VDC 25A BREAKER

Material Compliance and Certifications

ABB's published information for the TED124025 identifies the following:

  • GSA Compliance: No
  • Environmental Product Declaration: No Declaration Needed
  • Product Category: Thermal Magnetic
  • GO Schedule: EB

Where It Works Best

  • Existing Commercial Electrical Systems
  • Industrial Maintenance and Repairs
  • Legacy Electrical Equipment
  • Matching Circuit Breaker Replacements
  • Compatible AC Electrical Applications
  • Approved DC Electrical Applications
  • Reverse-Fed Electrical Arrangements
  • Facility Maintenance and Electrical Restoration
