GENERAL ELECTRIC

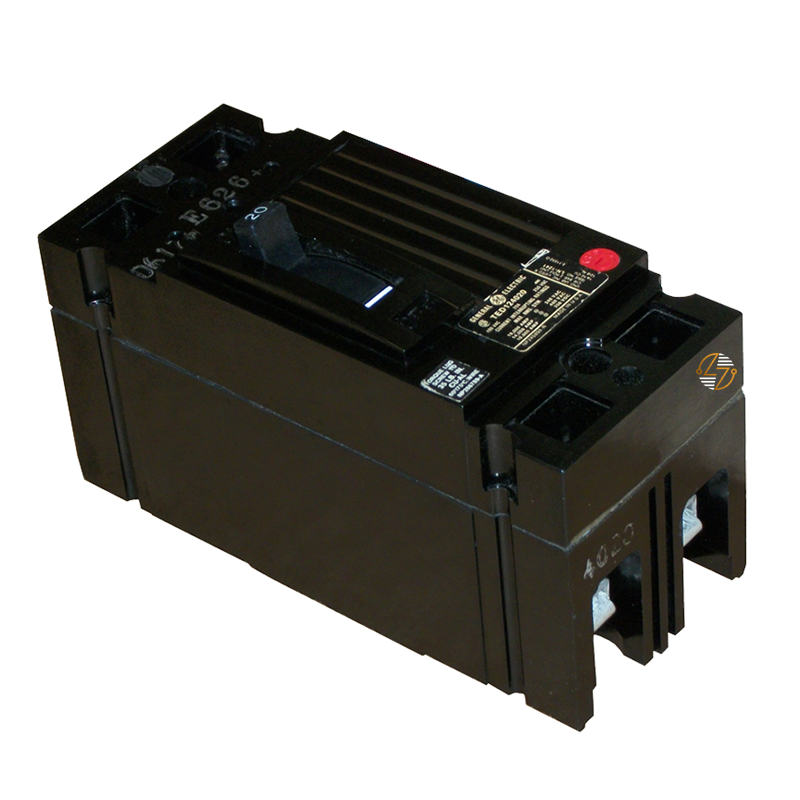

TED124020 **Older Style** - 20Amp Circuit Breaker

TED124020 **Older Style** - 20Amp Circuit Breaker

Regular price $0.00 USD
Regular price Sale price $0.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

TED124020 **Older Style** - 20Amp Circuit Breaker

When you're maintaining an existing electrical system, finding the right circuit breaker means matching the right specifications. The ABB TED124020 Black Face is a 20-amp, 2-pole molded-case industrial circuit breaker designed for applications requiring the TED series configuration. With its familiar black-face design, fixed thermal-magnetic trip unit, and specified interrupting ratings, this breaker is a practical choice for maintaining compatible industrial and commercial electrical equipment.

Key Features and Benefits

  • 20-Amp, 2-Pole Configuration
  • 18 kAIC Interrupting Rating
  • Thermal-Magnetic Trip Protection
  • Non-Interchangeable Trip Unit
  • Load-Side Lugs Included
  • Black-Face TED Series Design
  • Form, Fit, and Functional Replacement

Technical Specifications

  • Manufacturer: ABB
  • Part Number: TED124020
  • Product Type: Molded-Case Industrial Circuit Breaker
  • Series / Type: TED
  • Face Color: Black
  • Amperage: 20 Amps
  • Number of Poles: 2
  • Interrupting Rating at 480VAC: 18 kAIC
  • Interrupting Rating at 240VAC: 18 kAIC
  • Trip Mechanism: Thermal-Magnetic
  • Trip Unit: Non-Interchangeable
  • Included Connections: Load-Side Lugs
  • Height: 6.31 inches
  • Width: 2.75 inches
  • Depth: 3.38 inches
  • Approximate Shipping Weight: 4.50 lbs

Material Compliance and Certifications

The ABB TED124020 Black Face is a molded-case industrial circuit breaker with a non-interchangeable thermal-magnetic trip unit. Its specified interrupting ratings are 18 kAIC at 480 VAC and 18 kAIC at 240 VAC.

Where It Works Best

  • Legacy Electrical System Maintenance
  • Industrial Electrical Equipment
  • Commercial Electrical Systems
  • Black-Face TED Breaker Replacement
  • Scheduled Electrical Repairs
