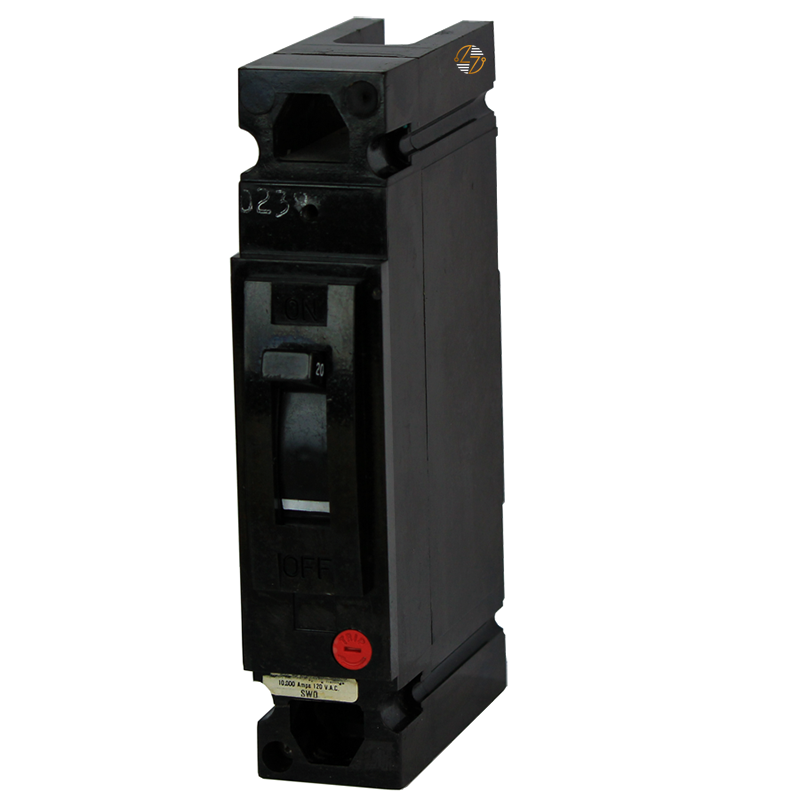

TED113015WL **Older Style** - 15Amp Circuit Breaker
TED113015WL **Older Style** - 15Amp Circuit Breaker
Couldn't load pickup availability
TED113015WL **Older Style** - 15Amp Circuit Breaker
Need to replace an ABB TED113015WL Black Face circuit breaker? Getting the exact match matters, especially when you're working with an existing electrical panel or maintaining older industrial equipment.
Fit is just as important as the electrical ratings. Measuring 1.38 inches wide, 6.31 inches high, and 3.38 inches deep, the TED113015WL has a defined physical configuration that helps when identifying a replacement. It also comes with load-side lugs included, so that's one less component to leave out of your compatibility check.
Key Features and Benefits
- 15-Amp Current Rating
- Single-Pole Design
- Distinctive Black Face
- TED-Series Molded-Case Construction
- Thermal-Magnetic Circuit Protection
- Non-Interchangeable Trip Unit
- Line and Load-Side Lugs Included
- Suitable for Compatible Legacy Systems
Technical Specifications
-
Manufacturer: ABB
-
Catalog Number: TED113015WL
-
Series/Type: TED
-
Breaker Style: Molded-Case Industrial Circuit Breaker
-
Face Color: Black
-
Amperage: 15 Amps
-
Number of Poles: 1
-
Trip Type: Thermal Magnetic
-
Trip Unit: Non-Interchangeable
-
Interrupting Rating: 14 kAIC at 277VAC
-
Line and Load-Side Lugs: Included
-
Height: 6.31 inches
-
Width: 1.38 inches
-
Depth: 3.38 inches
-
Dimensions (W × H × D): 1.38 × 6.31 × 3.38 inches
-
Approximate Shipping Weight: 3.50 lbs.
-
UPC: 00783164082418
Material Compliance and Certifications
Electrical compatibility isn't something to guess at. Along with matching the breaker size and amperage, it's important to confirm the required certifications and connection details for the equipment being serviced.
Where It Works Best
- Commercial Electrical Equipment
- Industrial Electrical Systems
- Existing TED-Series Breaker Installations
- Legacy Electrical Panel Maintenance
- Compatible 15-Amp Single-Pole Circuits
- Electrical Repair and Maintenance Work
- Replacement of Matching Black-Face Breakers
- Applications Requiring 14 kAIC at 277VAC
- Form, Fit, and Functional Replacement Projects
