GENERAL ELECTRIC
TEB132100WL **Older Style** - 100Amp Circuit Breaker
TEB132100WL **Older Style** - 100Amp Circuit Breaker
Couldn't load pickup availability
TEB132100WL **Older Style** - 100Amp Circuit Breaker

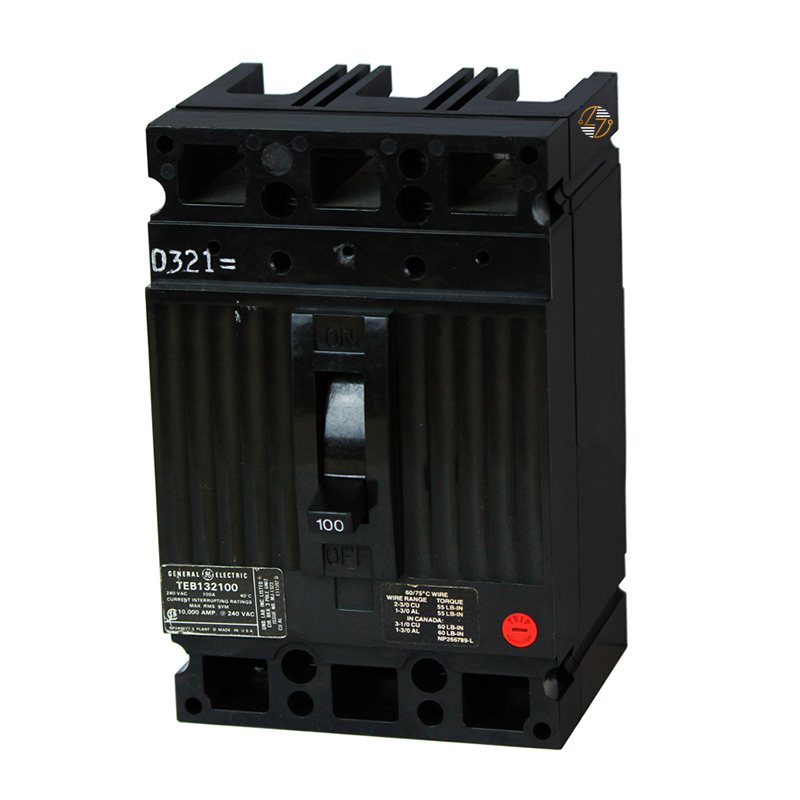

When you're replacing a circuit breaker in an existing electrical system, getting the details right matters; amperage is only part of the equation. The breaker must also match the equipment's frame size, connection arrangement, pole configuration, and protective characteristics. The TEB132100WL Black Face Circuit Breaker is a 100-amp, three-pole molded-case industrial circuit breaker with an E150 frame, cable-in/cable-out (lug-lug) connections, and a non-interchangeable thermal-magnetic trip unit. It is intended for compatible industrial and commercial electrical assemblies where maintaining the original form, fit, and protective function is essential.
Key Features and Benefits
- 100-Amp Current Rating: Provides a 100-amp rating for compatible electrical circuits and equipment requiring this level of circuit protection.
- Three-Pole Configuration: Designed for electrical assemblies that require a three-pole molded-case circuit breaker with a common trip mechanism.
- Cable-In/Cable-Out Connections: Features a lug-lug arrangement for cable terminations on both the incoming and outgoing sides.
- Line and Load-Side Lugs Included: Comes with lugs on both sides, matching the specified terminal arrangement for compatible installations.
- Thermal-Magnetic Trip Protection: Combines thermal overload response with magnetic short-circuit response.
- Non-Interchangeable Trip Unit: Incorporates a trip mechanism that is not designed to be independently exchanged for another trip unit.
Technical Specifications
-
Part Number: TEB132100WL
-
Series/Type: TEB
-
Product Category: Molded Case Industrial Circuit Breaker
-
Frame Size: E150
-
Face Color: Black
-
Amperage: 100 Amps
-
Number of Poles: 3
-
AIC Rating: 10,000 Amps (10k AIC)
-
AIC Reference Voltage: 240VAC
-
Connection Type: Cable-In/Cable-Out (Lug-Lug)
-
Line-Side Connection: Cable Lug
-
Load-Side Connection: Cable Lug
-
Included Lugs: Line-Side and Load-Side Lugs
-
Trip Mechanism: Thermal-Magnetic
-
Trip Unit: Non-Interchangeable
-
Construction: Molded Case
-
Height/Length: 6.31 Inches
-
Width: 4.13 Inches
-
Depth: 3.38 Inches
-
Overall Dimensions: 4.13"W x 6.31"L x 3.38"D
-
Shipping Weight: 6.50 lbs.
Material Compliance and Certifications
The available product information does not verify UL listing, CSA certification, or RoHS compliance. Consult the breaker's markings and manufacturer documentation to confirm required certifications, listings, and equipment approvals.
Where It Works Best
Common Applications:
- Legacy Electrical Distribution Systems
- Industrial Power Distribution Equipment
- Commercial Electrical Installations
- Cable-In/Cable-Out Installations
- Existing Electrical Panel Assemblies
- Industrial Control Equipment
- Facility Electrical Maintenance
