TEB132100WL - 100Amp Circuit Breaker

TEB132100WL - 100Amp Circuit Breaker

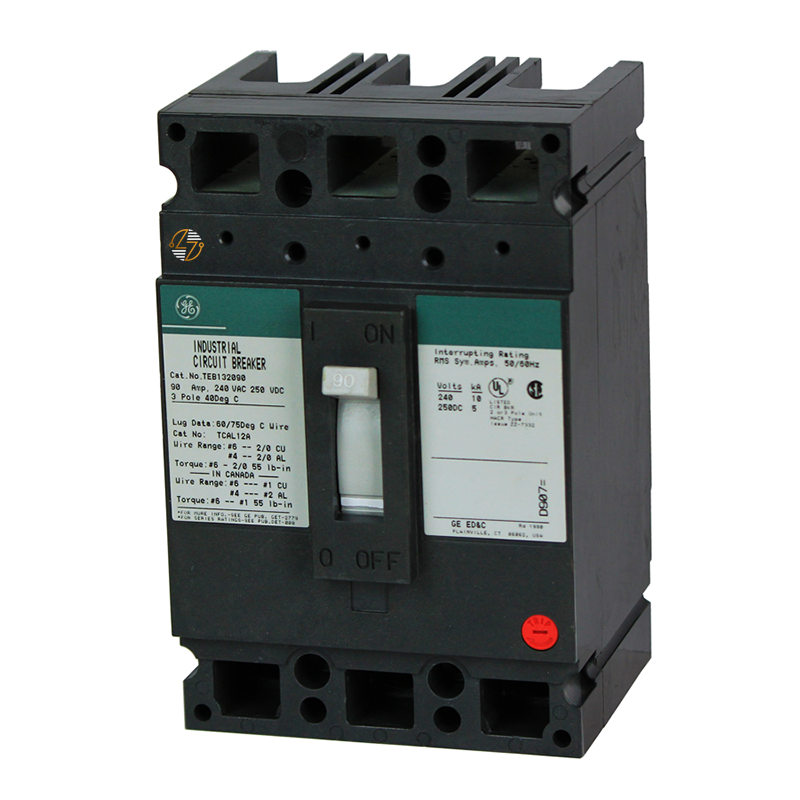

The TEB132100WL is a 3-pole, 100 amp molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring dependable overcurrent and short-circuit protection. Built on the E150 frame, this Type TEB breaker features a non-interchangeable thermal magnetic trip unit that provides both inverse-time overload protection and instantaneous protection against short circuits. Its cable-in/cable-out (lug-lug) configuration includes line- and load-side lugs, making installation straightforward in compatible equipment. Built to last and engineered for proper form, fit, and function, the TEB132100WL is well suited as a direct replacement for compatible existing installations where maintaining the original system configuration is important.

Key Features and Benefits

• 100 Amp Current Rating: 100 Amp current rating for commercial and industrial power distribution applications.
• 3-Pole Design: 3-pole design for protecting three-phase electrical circuits.
• Type TEB Circuit Breaker: Type TEB molded case circuit breaker.
• E150 Frame Construction: E150 frame construction.
• Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit helps protect against overloads and short circuits.
• Cable-In/Cable-Out Configuration: Cable-in/cable-out (lug-lug) configuration simplifies field wiring.
• Included Accessories: Includes both line-side and load-side lugs.
• 10kA A.I.C. Rating: Rated 10kA A.I.C. at 240VAC.
• Built to Last: Built to last for long-term service in compatible electrical systems.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible equipment.


Technical Specifications

• Part Number: TEB132100WL

• Type: TEB

• Frame: E150

• Product Type: Molded Case Industrial Circuit Breaker

• Poles: 3

• Amperage: 100 Amps

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Interrupting Rating (A.I.C.): 10kA @ 240VAC

• Voltage Rating: 240VAC

• Configuration: Cable-In/Cable-Out (Lug-Lug)

• Included Accessories: Line- and Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.13 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Molded Case Construction: The TEB132100WL is manufactured as a molded case industrial circuit breaker for use in compatible electrical distribution systems.
• Installation Requirements: It should always be installed and maintained in accordance with applicable electrical codes, manufacturer recommendations, and local regulations.
• Equipment Compatibility: Verify compatibility with your equipment and application before installation.


Where It Works Best

• The TEB132100WL is commonly used in:
  • Commercial buildings
  • Industrial facilities
  • Manufacturing plants
  • Distribution panels
  • Motor control applications
  • Equipment requiring a 3-pole, 100 amp, 240VAC molded case circuit breaker
  • Maintenance projects where preserving the original equipment configuration is important
  Its E150 frame, thermal magnetic trip protection, and included lug-lug connections make it an excellent choice for maintaining compatible legacy electrical systems while providing dependable circuit protection.
