TEB132030WL - 30Amp Circuit Breaker

TEB132030WL - 30Amp Circuit Breaker

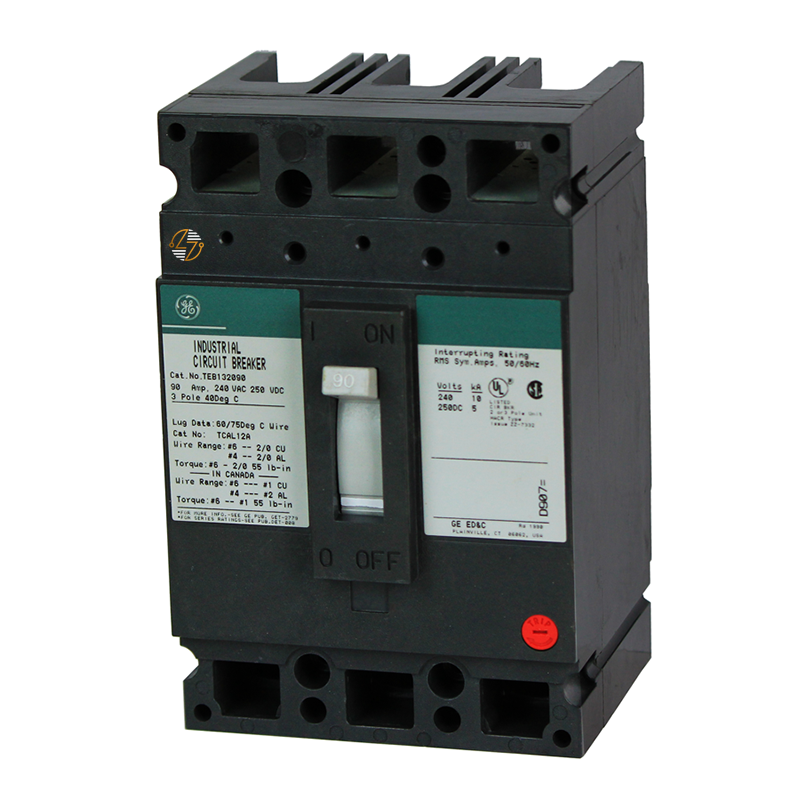

The TEB132030WL is a 3-pole, 30 amp molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring dependable overcurrent and short-circuit protection. Built on the E150 frame, this TEB Type circuit breaker features a non-interchangeable thermal magnetic trip unit that provides protection against both overloads and short circuits. Its cable-in/cable-out (lug-lug) configuration includes factory-installed line- and load-side lugs, helping you simplify installation while maintaining proper conductor termination. Designed for long service life, the TEB132030WL is an excellent choice when maintaining, servicing, or replacing compatible breakers in existing electrical equipment where matching form, fit, and function is essential.

Key Features and Benefits

• 30 Amp Continuous Current Rating: 30 Amp continuous current rating for branch circuit protection.
• 3-Pole Design: 3-pole design for three-phase electrical distribution systems.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC to help protect equipment during fault conditions.
• Thermal Magnetic Trip Unit: Thermal magnetic trip unit delivers dependable overload and instantaneous short-circuit protection.
• Non-Interchangeable Trip Unit: Non-interchangeable trip unit maintains the factory-configured protection settings.
• E150 Frame Construction: E150 frame construction for compatibility with designated electrical equipment.
• Cable-In/Cable-Out Configuration: Cable-in/cable-out (lug-lug) configuration for straightforward field wiring.
• Included Line- and Load-Side Lugs: Includes both line-side and load-side lugs, eliminating the need for separate lug components.
• Built to Last: Built to last for continued service in commercial and industrial applications.


Technical Specifications

• Part Number: TEB132030WL

• Type: TEB

• Frame: E150

• Circuit Breaker Type: Molded Case Industrial Circuit Breaker

• Poles: 3

• Amperage: 30 Amps

• Voltage Rating: 240 VAC

• Interrupting Rating (A.I.C.): 10kA @ 240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Connection Type: Cable-In / Cable-Out (Lug-Lug)

• Included Accessories: Line-Side and Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.13 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Molded Case Construction: Molded case circuit breaker construction for commercial and industrial electrical systems.
• Thermal Magnetic Protection: Thermal magnetic protection combines overload and short-circuit protection in a single device.
• Equipment Compatibility: Manufactured for use within equipment compatible with the TEB E150 frame configuration.
• Installation Requirements: Suitable for installation in accordance with applicable electrical codes and manufacturer requirements when used in compatible equipment.


Where It Works Best

• The TEB132030WL is well suited for commercial buildings, industrial facilities, manufacturing operations, distribution equipment, and other three-phase electrical systems where a 30 amp, 3-pole molded case circuit breaker is required. It is an ideal form, fit, and functional replacement for compatible installations that call for a TEB Type E150 frame breaker with a 10kA interrupting rating at 240VAC, thermal magnetic protection, and a lug-lug connection with included line- and load-side lugs.
