TEB122090 - 90Amp Circuit Breaker

TEB122090 - 90Amp Circuit Breaker

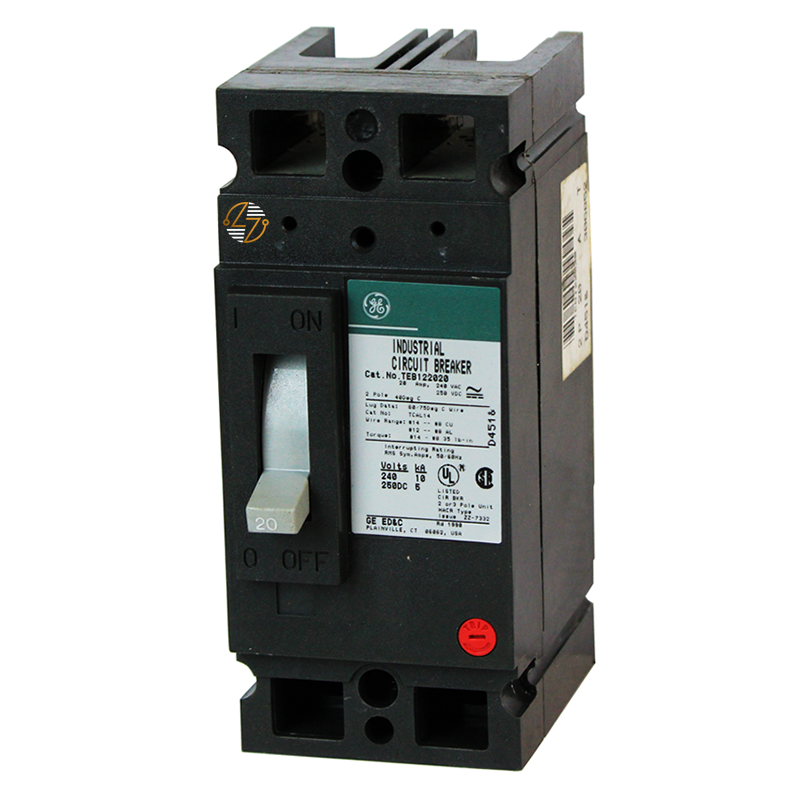

The TEB122090 is a 2-pole, 90 amp molded case circuit breaker built on the E150 frame and designed for use in you compatible commercial and industrial electrical distribution equipment. It features a bolt-on mounting design along with a non-interchangeable thermal magnetic trip unit that responds to both overloads and short circuits. Rated for 120/240VAC with a 10kA interrupting capacity, this breaker is intended for maintaining existing electrical systems where the original TEB configuration is required. Load-side lugs are included, making installation more straightforward. Built to last, the TEB122090 provides the form, fit, and function needed to keep compatible equipment operating as intended.

Key Features and Benefits

• 90 Amp Current Rating: 90 amp current rating.
• Two-Pole Configuration: Two-pole configuration.
• E150 Frame Design: E150 frame design.
• Bolt-On Installation: Bolt-on installation.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit.
• 10kA Interrupting Rating: 10kA interrupting rating at 120/240VAC.
• Load-Side Lugs Included: Includes load-side lugs.
• Built to Last: Built to last for continued use in compatible electrical systems.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible TEB applications.


Technical Specifications

• Part Number: TEB122090

• Type: TEB

• Frame: E150

• Poles: 2

• Amperes: 90A

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting: Bolt-On

• Included: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.75 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Molded Case Industrial Circuit Breaker: Molded case industrial circuit breaker.
• Thermal Magnetic Protection: Thermal magnetic protection for overload and short-circuit conditions.
• Manufactured for Compatible Equipment: Manufactured for use in compatible electrical distribution equipment.
• Installation: Always confirm compatibility with your panel or electrical equipment before installation and follow applicable local electrical codes.


Where It Works Best

• The TEB122090 is commonly used in commercial buildings, industrial facilities, and other electrical distribution systems that require a 90 amp, 2-pole bolt-on circuit breaker. It is a practical choice for servicing compatible panelboards and switchboards where maintaining the original equipment configuration is important. When the application calls for a TEB series breaker with these ratings, this model provides the correct form, fit, and function.
