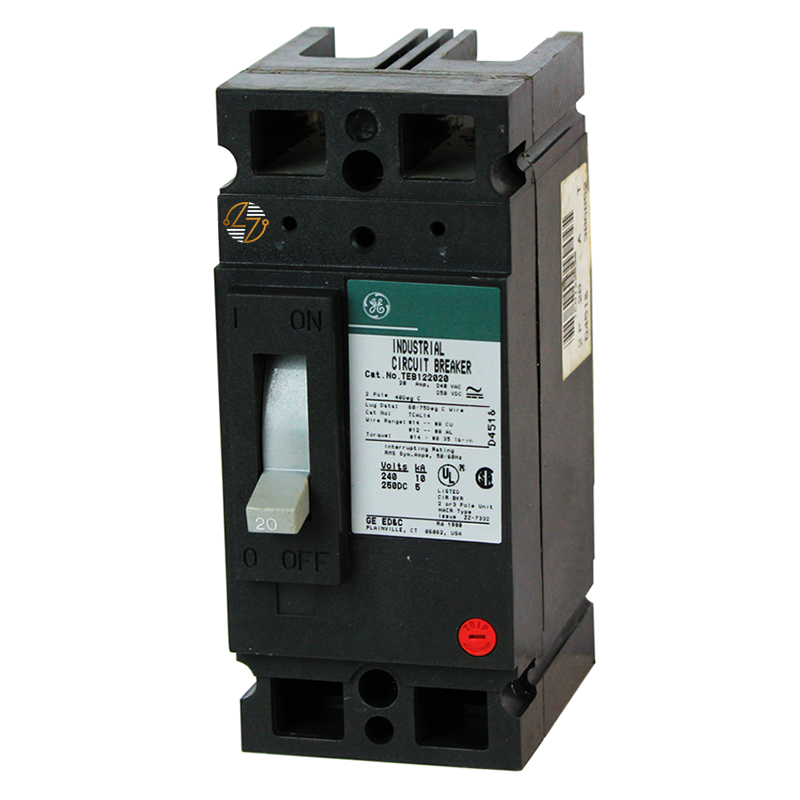

TEB122050WL - 50Amp Circuit Breaker

TEB122050WL - 50Amp Circuit Breaker

The TEB122050WL is a 2-pole, 50 amp molded case industrial circuit breaker designed for your applications requiring dependable overcurrent and short-circuit protection in 120/240VAC electrical distribution systems. Built on the E150 frame, this breaker features a non-interchangeable thermal magnetic trip unit that provides both inverse-time overload protection and instantaneous response to short-circuit conditions. Its cable-in/cable-out (lug-lug) configuration includes both line-side and load-side lugs, helping you simplify installation in compatible equipment. Built to last, the TEB122050WL is well suited as a form, fit, and functional replacement for existing compatible TEB series breakers in commercial and industrial electrical systems where maintaining original equipment compatibility is essential.

Key Features and Benefits

• 50 Amp Continuous Current Rating: 50 Amp continuous current rating for branch circuit protection.
• 2-Pole Design: 2-pole design for use on 120/240VAC electrical systems.
• 10kA Interrupting Capacity: 10kA interrupting capacity (A.I.C.) at 120/240VAC to help protect equipment during fault conditions.
• TEB Type Breaker: TEB Type breaker designed for compatibility with applicable TEB series installations.
• E150 Frame: E150 frame with a non-interchangeable thermal magnetic trip unit for consistent overload and short-circuit protection.
• Cable-In/Cable-Out Configuration: Cable-in/Cable-out (Lug-Lug) configuration for straightforward field wiring.
• Line-Side and Load-Side Lugs Included: Includes both line-side and load-side lugs, eliminating the need to source compatible lugs separately.
• Molded Case Construction: Molded case construction intended for long service life in commercial and industrial environments.


Technical Specifications

• Part Number: TEB122050WL

• Type: TEB

• Frame Type: E150 Frame

• Poles: 2

• Amperage: 50 Amps

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Connection Type: Cable-in/Cable-out (Lug-Lug)

• Included Accessories: Line-Side and Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.75 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Molded Case Construction: The TEB122050WL is a molded case circuit breaker manufactured for use in compatible electrical distribution systems and designed to meet the electrical ratings specified for its series.
• Installation Requirements: The breaker provides thermal magnetic overcurrent protection and should be installed and maintained in accordance with applicable National Electrical Code (NEC) requirements, local electrical codes, and the manufacturer's installation guidelines. Always verify compatibility with the intended panelboard or equipment before installation.


Where It Works Best

• The TEB122050WL is commonly used in commercial, industrial, and institutional electrical systems where a 2-pole, 50 amp TEB Type molded case circuit breaker is required. It is well suited for protecting branch circuits that serve lighting, HVAC equipment, machinery, distribution panels, and other electrical loads operating on 120/240VAC systems. Its E150 frame, lug-lug connection design, and included line and load lugs make it an excellent form, fit, and functional replacement in compatible legacy electrical equipment where maintaining the original breaker configuration is important.
