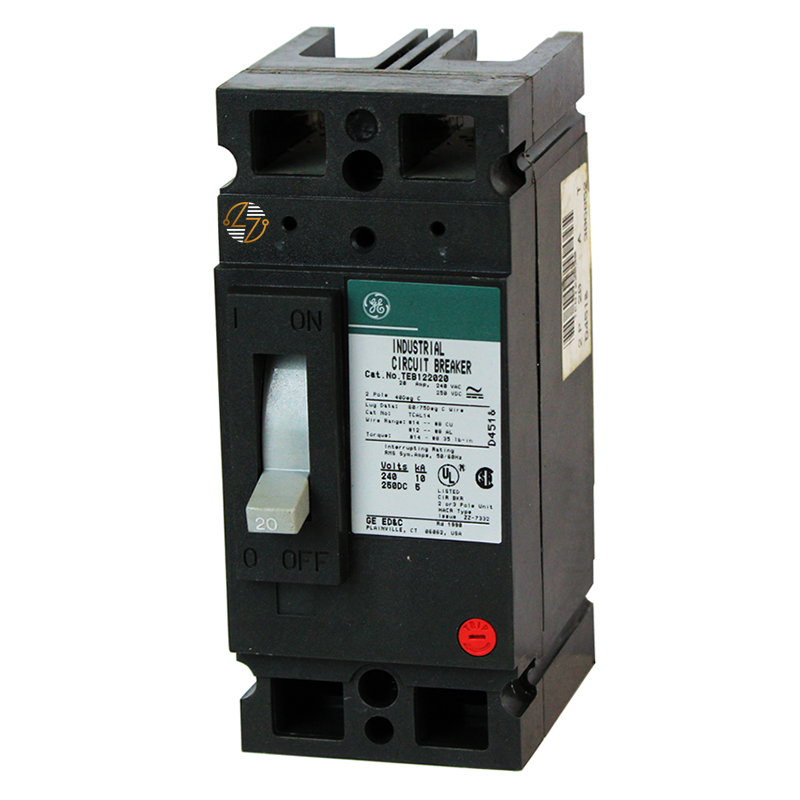

The TEB122040WL is a 2-pole, 40-amp molded case circuit breaker designed for use in your electrical distribution systems requiring dependable overcurrent and short-circuit protection at 120/240VAC. Built on the E150 frame, this TEB Type breaker features a non-interchangeable thermal magnetic trip unit that provides protection against both overloads and short circuits. Its cable-in/cable-out (lug-lug) configuration, complete with line- and load-side lugs, simplifies installation in compatible equipment. Designed for form, fit, and functional replacement applications, the TEB122040WL is well suited for maintaining existing electrical systems where matching ratings, dimensions, and configuration are essential. Like many industrial molded case circuit breakers, it is built to provide dependable service over time when installed and maintained according to applicable electrical standards.

Key Features and Benefits

• 40 Amp Continuous Current Rating: 40 Amp continuous current rating for branch circuit and feeder protection.
• 2-Pole Design: 2-pole design for use on 120/240VAC electrical systems.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 120/240VAC to help protect equipment during fault conditions.
• TEB Type, E150 Frame: TEB Type, E150 frame for compatibility with equipment designed for this breaker style.
• Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit provides overload and instantaneous short-circuit protection.
• Cable-In/Cable-Out Configuration: Cable-in/cable-out (lug-lug) configuration for straightforward field wiring.
• Includes Line- and Load-Side Lugs: Includes both line- and load-side lugs, reducing the need for additional compatible lug kits.
• Molded Case Construction: Molded case construction designed for long service life in commercial and industrial electrical applications.
• Form, Fit, and Functional Replacement: Suitable as a form, fit, and functional replacement where the original breaker specifications match.


Technical Specifications

• Part Number: TEB122040WL

• Type: TEB

• Frame: E150

• Breaker Style: Molded Case Circuit Breaker

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Poles: 2

• Amperes: 40A

• Voltage Rating: 120/240VAC

• Interrupting Rating: 10kA @ 120/240VAC

• Connection Type: Cable-In/Cable-Out (Lug-Lug)

• Included Accessories: Line-Side and Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 2.75 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Molded Case Construction: Molded case circuit breaker construction for commercial and industrial electrical distribution applications.
• Thermal Magnetic Trip Mechanism: Thermal magnetic trip mechanism combines overload and short-circuit protection in a single device.
• Compatible Equipment: Intended for installation and use in equipment compatible with its electrical ratings, frame size, and mounting configuration.
• Installation Requirements: Installation should be performed in accordance with applicable electrical codes and manufacturer requirements.


Where It Works Best

• The TEB122040WL is commonly used in commercial, industrial, and institutional electrical systems where a 2-pole, 40-amp, 120/240VAC molded case circuit breaker with an E150 frame is required. It is a practical choice for maintenance, repair, and replacement projects involving compatible panelboards, switchboards, distribution equipment, and other electrical assemblies designed to accept TEB Type breakers. Matching the original breaker's electrical ratings, frame, and connection style helps ensure proper form, fit, and function within existing installations.
