GENERAL ELECTRIC

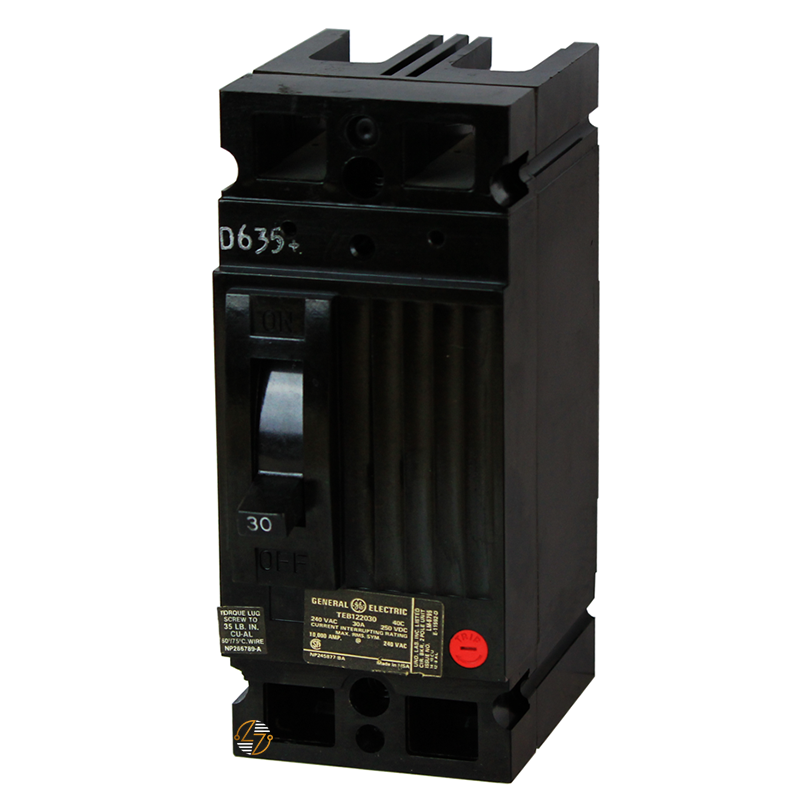

TEB122030 **Older Style** - 30Amp Circuit Breaker

TEB122030 **Older Style** - 30Amp Circuit Breaker

Regular price $340.00 USD
Regular price Sale price $340.00 USD
Sale Sold out
Shipping calculated at checkout.
Condition

TEB122030 **Older Style** - 30Amp Circuit Breaker

When you're maintaining an older electrical system, getting the right circuit breaker is about more than matching the amperage. The physical fit, mounting configuration, voltage rating, and connection requirements all matter. The TEB122030 Older Style Black Face Circuit Breaker is a 30-amp, 2-pole2-pole molded-case industrial circuit breaker designed for compatible legacy electrical distribution equipment. Built on an E150 frame, this TEB-type breaker features a bolt-on mounting arrangement and a non-interchangeable thermal-magnetic trip unit that provides overload and short-circuit protection within its specified ratings.

Key Features and Benefits

  • 30 Amp, 2 Pole Configuration: Provides circuit protection for compatible electrical systems that require a 2 Pole, 30-amp molded-case circuit breaker.
  • Older-Style Black Face: The distinctive face design helps you identify the right breaker style when matching existing electrical equipment.
  • E150 Frame Construction: Features an industrial molded-case design for compatible E150 frame applications.
  • Bolt-On Mounting: Designed for secure attachment to electrical distribution equipment that accepts this specific mounting configuration.
  • Thermal Magnetic Trip Protection: Combines thermal overload protection and magnetic short-circuit protection in one breaker.
  • Non-Interchangeable Trip Unit: Features an integrated trip unit that cannot be exchanged separately.

Technical Specifications

  • Part Number: TEB122030
  • Product Type: Molded Case Industrial Circuit Breaker
  • Series / Type: TEB
  • Frame Type: E150
  • Face Style: Older Style Black Face
  • Amperage Rating: 30 Amps
  • Number of Poles: 2
  • Voltage Rating: 120/240VAC
  • Interrupting Capacity (AIC): 10,000 Amps (10k AIC) at 120/240VAC
  • Mounting Type: Bolt-On
  • Trip Mechanism: Thermal Magnetic
  • Trip Unit: Non-Interchangeable
  • Load-Side Lugs: Included
  • Width: 2.75 inches
  • Height / Length: 6.31 inches
  • Depth: 3.38 inches
  • Overall Dimensions: 2.75"W x 6.31"L x 3.38"D
  • Shipping Weight: 4.00 lbs.

Material Compliance and Certifications

The TEB122030 30 Amp Circuit Breaker features molded-case construction with a thermal-magnetic trip mechanism designed to provide overload and short-circuit protection within its specified electrical ratings. Its E150 frame, bolt-on mounting arrangement, and included load-side lugs support use in compatible electrical distribution equipment.

The molded case houses the breaker's internal operating and protective components. The non-interchangeable trip unit is integrated into the breaker, so the complete breaker configuration is an important consideration when evaluating a replacement.

Where It Works Best

Common applications include:

  • Legacy Electrical Panels
  • Industrial Electrical Distribution
  • Commercial Electrical Systems
  • Electrical Equipment Maintenance
  • Existing Bolt-On Assemblies
