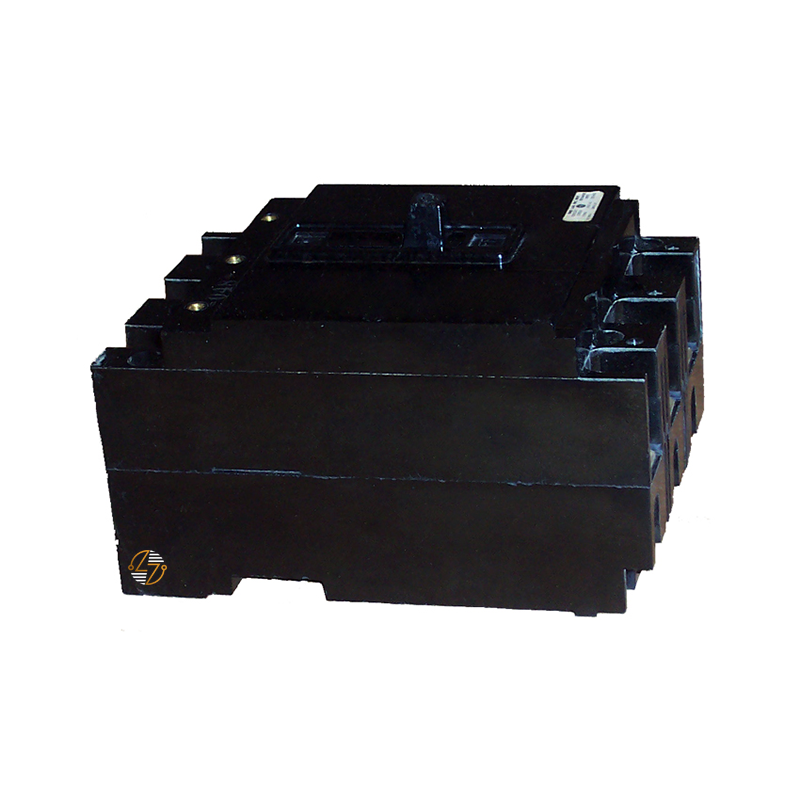

The TE32100 is a 3-pole, 100-amp bolt-on molded case circuit breaker designed for use in your compatible electrical distribution systems requiring dependable overcurrent and short-circuit protection. Featuring a non-interchangeable thermal magnetic trip unit, this breaker helps you protect conductors and connected equipment from overloads and short circuits while maintaining the proper form, fit, and function for compatible installations. With a 10kA interrupting rating at 240VAC, the TE32100 is suited for a variety of commercial and industrial electrical applications. Its bolt-on mounting design provides a secure installation, and the included load-side lugs help you to simplify wiring during installation or replacement. Built to last, this circuit breaker is a practical choice for maintaining existing electrical systems where compatibility and rated performance are essential.

Key Features and Benefits

• 100-Amp Current Rating: 100-amp current rating for branch and feeder circuit protection.
• Three-Pole Configuration: Three-pole configuration for three-phase electrical systems.
• Bolt-On Mounting Design: Bolt-on mounting design for secure installation in compatible equipment.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit provides protection against overloads and short circuits.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC.
• Molded Case Construction: Molded case construction designed for long service life.
• Includes Load-Side Lugs: Includes load-side lugs for convenient field wiring.
• Form, Fit, and Functional Replacement: Suitable as a form, fit, and functional replacement in compatible legacy electrical systems.


Technical Specifications

• Part Number: TE32100

• Type: TE

• Product Type: Molded Case Industrial Circuit Breaker

• Mounting Style: Bolt-On

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Poles: 3

• Amperage: 100A

• Interrupting Rating: 10kA @ 240VAC

• Voltage Rating: 240VAC

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.
• Included Accessories: Load-Side Lugs


Material Compliance and Certifications

• Industry Standards: Manufactured to meet applicable industry standards for molded case circuit breakers.
• Installation: Designed for installation in compatible electrical distribution equipment when used in accordance with applicable electrical codes and manufacturer specifications.
• Compatibility: Always verify compatibility, electrical ratings, and installation requirements before use.


Where It Works Best

• The TE32100 is well suited for commercial, industrial, and institutional electrical distribution systems where a 100-amp, 3-pole bolt-on circuit breaker is required. It is commonly used in panelboards, switchboards, and other compatible power distribution equipment to provide overcurrent protection for feeders, branch circuits, motors, and other three-phase loads. Its design makes it an excellent form, fit, and functional replacement for maintaining compatible existing electrical systems while preserving the original equipment configuration.
