TE32090 - 90Amp Circuit Breaker

TE32090 - 90Amp Circuit Breaker

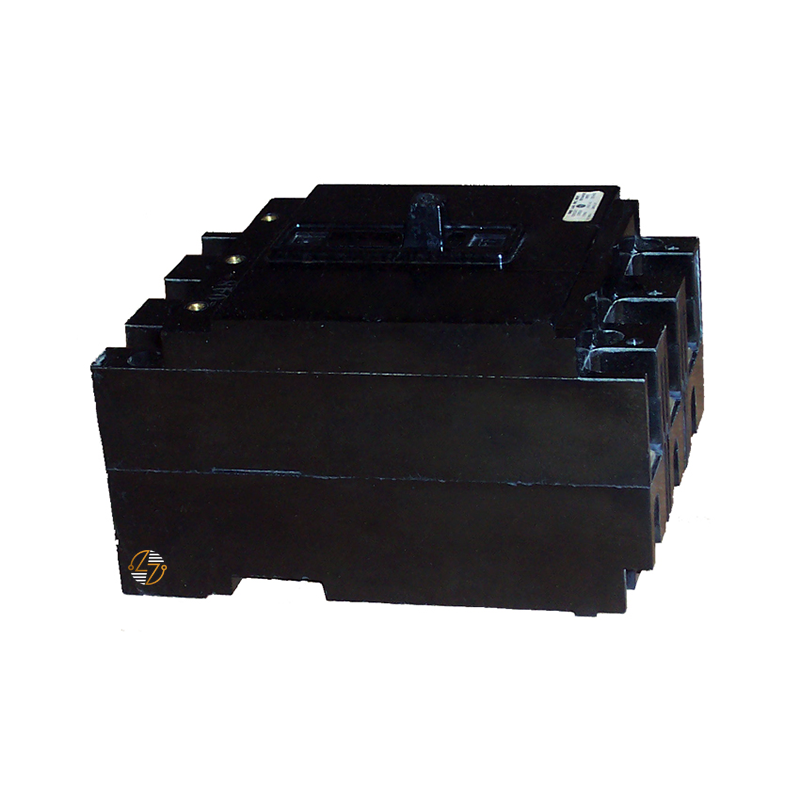

The TE32090 is a 3-pole, 90-amp TE molded case industrial circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring dependable branch circuit and equipment protection. Featuring a non-interchangeable thermal magnetic trip unit, this breaker provides protection against overloads and short circuits while maintaining the original electrical characteristics specified for the application. Its bolt-on mounting design helps you provide a secure connection in compatible panelboards and switchboards, making it well-suited as a form, fit, and functional replacement for existing TE-series installations. The breaker also includes load-side lugs, helping you to simplify installation by providing the necessary load connections. Built to last and manufactured for demanding electrical environments, the TE32090 is intended to deliver reliable circuit protection while maintaining compatibility with legacy electrical systems and equipment.

Key Features and Benefits

• 90 Amp Current Rating: 90 Amp current rating for commercial and industrial power distribution applications.
• 3-Pole Configuration: 3-pole configuration for protecting three-phase electrical circuits.
• TE Series Molded Case Circuit Breaker: TE series molded case circuit breaker for compatible legacy electrical systems.
• Bolt-On Mounting Design: Bolt-on mounting design for secure installation in approved equipment.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit provides overload and short-circuit protection.
• Includes Load-Side Lugs: Includes load-side lugs for convenient field wiring.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC.
• Built to Last: Built to last for long-term service in demanding electrical environments.
• Form, Fit, and Functional Replacement: Suitable as a form, fit, and functional replacement where TE32090 compatibility is required.


Technical Specifications

• Part Number: TE32090

• Type: TE

• Circuit Breaker Style: Molded Case Industrial Circuit Breaker

• Mounting: Bolt-On

• Poles: 3

• Amperage: 90A

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Interrupting Rating: 10kA @ 240VAC

• Voltage Rating: 240VAC

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.
• Load Connections: Includes Load-Side Lugs


Material Compliance and Certifications

• Manufacturing: The TE32090 is manufactured for use in commercial and industrial electrical distribution systems and is intended to meet the electrical ratings and installation requirements associated with its original design.
• Installation: As with any replacement circuit breaker, installation should be performed in compatible equipment and in accordance with applicable electrical codes, manufacturer specifications, and local regulations. Always verify compatibility, interrupting rating, voltage requirements, and application before installation.


Where It Works Best

• The TE32090 is well-suited for a variety of commercial and industrial electrical applications where a compatible TE-series 3-pole, 90-amp bolt-on molded case circuit breaker is required. Typical uses include commercial buildings and office facilities, industrial manufacturing equipment, distribution panels and switchboards, mechanical and HVAC equipment, motor and feeder circuit protection, and electrical maintenance and retrofit projects requiring a form, fit, and functional replacement for compatible TE-series installations.
