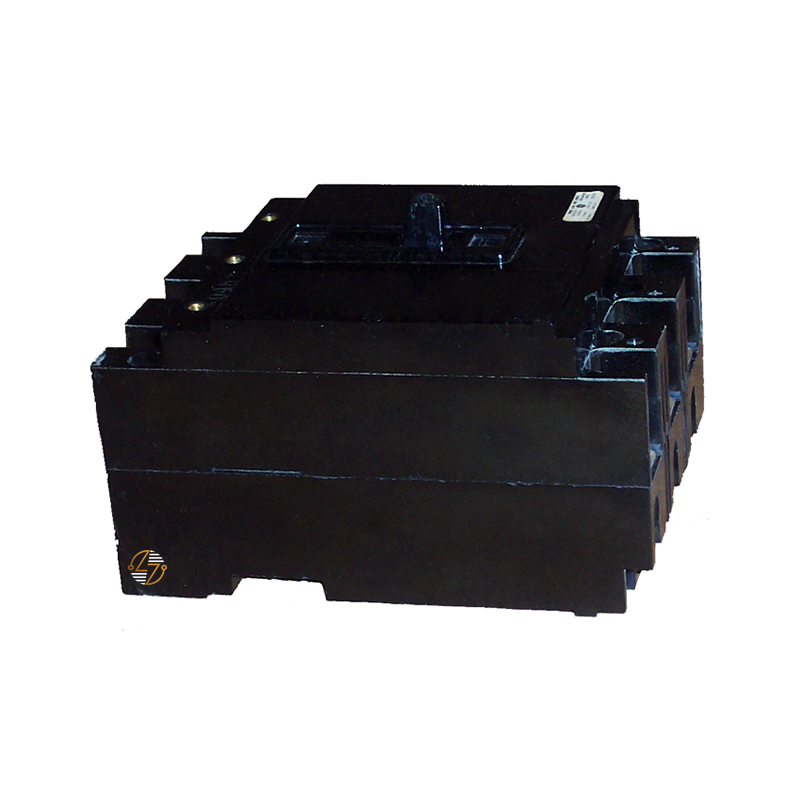

The TE32080 is a 3-pole, 80-amp Type TE molded case circuit breaker designed for use in your commercial and industrial electrical distribution systems requiring dependable branch circuit protection. Featuring a non-interchangeable thermal magnetic trip unit, this breaker helps you protect electrical equipment and conductors against overloads and short circuits while maintaining the correct form, fit, and function for compatible installations. Its bolt-on mounting design provides a secure installation, and the included load-side lugs help you to simplify wiring during installation or replacement. Built to last and manufactured for long-term service, the TE32080 is well suited as a functional replacement for compatible existing equipment where matching electrical ratings and physical configuration are essential.

Key Features and Benefits

• 80 Amp Continuous Current Rating: 80 Amp continuous current rating.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Type TE Molded Case Industrial Circuit Breaker: Type TE molded case industrial circuit breaker.
• Bolt-On Mounting Design: Bolt-on mounting design for secure installation.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit for overload and short-circuit protection.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC.
• Includes Load-Side Lugs: Includes load-side lugs for convenient field wiring.
• Form, Fit, and Functional Compatibility: Designed to provide proper form, fit, and functional compatibility in applicable systems.
• Built to Last: Built to last for demanding commercial and industrial environments.


Technical Specifications

• Part Number: TE32080

• Type: TE

• Product Type: Molded Case Industrial Circuit Breaker

• Mounting: Bolt-On

• Poles: 3

• Amperage: 80 Amps

• Voltage Rating: 240 VAC

• Interrupting Capacity (A.I.C.): 10kA @ 240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Line Connection: Bolt-On

• Load Connection: Includes Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Industry Standards: The TE32080 is manufactured to meet applicable industry standards for molded case circuit breakers.
• Compliance: Material compliance and certifications may vary by production date and manufacturer revision. Users should verify any project-specific certification or compliance requirements before installation.


Where It Works Best

• The TE32080 is intended for use in compatible commercial and industrial electrical distribution systems where an 80-amp, 3-pole, Type TE bolt-on molded case circuit breaker is specified. It is commonly used in panelboards, switchboards, and other electrical equipment requiring thermal magnetic overcurrent protection for feeders and branch circuits. When replacing an existing breaker, always confirm compatibility with the original equipment, including the required type, mounting configuration, voltage rating, interrupting capacity, and ampere rating to ensure proper installation and operation.
