TE32070 - 70Amp Circuit Breaker

TE32070 - 70Amp Circuit Breaker

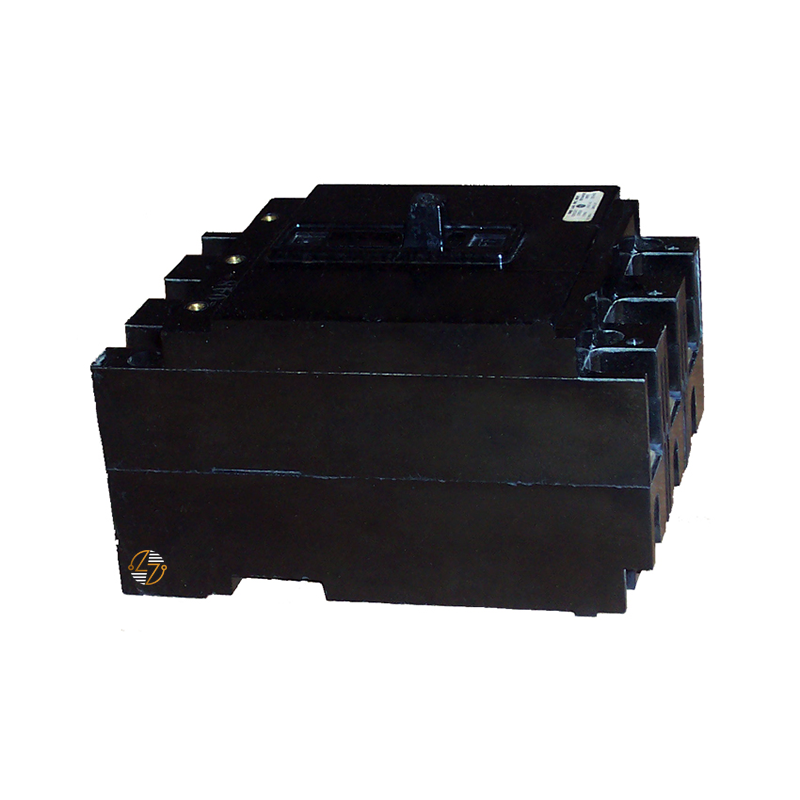

The TE32070 is a 3-pole, 70-amp molded case industrial circuit breaker designed for use in your electrical distribution systems requiring dependable branch circuit and equipment protection. Featuring a non-interchangeable thermal magnetic trip unit, this breaker provides protection against both overloads and short circuits while maintaining the original form, fit, and function required for compatible installations. Its bolt-on mounting design helps you to provide a secure electrical connection, making it well-suited for commercial and industrial panelboards where a fixed installation is required. Built to last and supplied with load-side lugs, the TE32070 is a practical replacement solution for maintaining existing electrical systems without altering the original equipment configuration.

Key Features and Benefits

• 70 Amp Continuous Current Rating: 70 Amp continuous current rating for branch circuit and equipment protection.
• 3-Pole Configuration: 3-pole configuration for three-phase electrical systems.
• Bolt-On Mounting Design: Bolt-on mounting design for a secure, fixed installation.
• Non-Interchangeable Thermal Magnetic Trip Unit: Non-interchangeable thermal magnetic trip unit provides overload and short-circuit protection.
• 10kA Interrupting Capacity: 10kA interrupting capacity at 240VAC.
• Molded Case Construction: Molded case construction designed for long service life in commercial and industrial environments.
• Includes Load-Side Lugs: Includes load-side lugs for convenient installation.
• Form, Fit, and Functional Replacement: Designed as a form, fit, and functional replacement for compatible TE-series electrical systems.


Technical Specifications

• Part Number: TE32070

• Type: TE

• Amperage: 70 Amps

• Poles: 3

• Voltage Rating: 240 VAC

• Interrupting Rating (A.I.C.): 10kA @ 240VAC

• Trip Unit: Non-Interchangeable Thermal Magnetic

• Mounting Style: Bolt-On

• Construction: Molded Case Industrial Circuit Breaker

• Included Accessories: Load-Side Lugs

• Dimensions:
  • Height: 6.31 in.
  • Width: 4.00 in.
  • Depth: 3.38 in.

Material Compliance and Certifications

• Manufacturing: The TE32070 is a molded case circuit breaker manufactured for use in commercial and industrial electrical distribution systems. It is designed to meet the electrical ratings specified for compatible equipment.
• Installation: Users should verify compliance with applicable local electrical codes, project specifications, and installation requirements before use.


Where It Works Best

• The TE32070 is well suited for a variety of commercial and industrial electrical applications, including industrial control panels, commercial distribution panels, manufacturing facilities, mechanical equipment and HVAC systems, motor and equipment branch circuits, and existing electrical systems requiring a compatible TE-series bolt-on circuit breaker replacement. Designed to provide the correct form, fit, and function for compatible installations, the TE32070 helps maintain the integrity of existing electrical systems while delivering dependable overload and short-circuit protection. Its thermal magnetic trip mechanism responds to both sustained overcurrent conditions and higher fault currents, making it an effective choice for maintaining the safe operation of compatible power distribution equipment.
